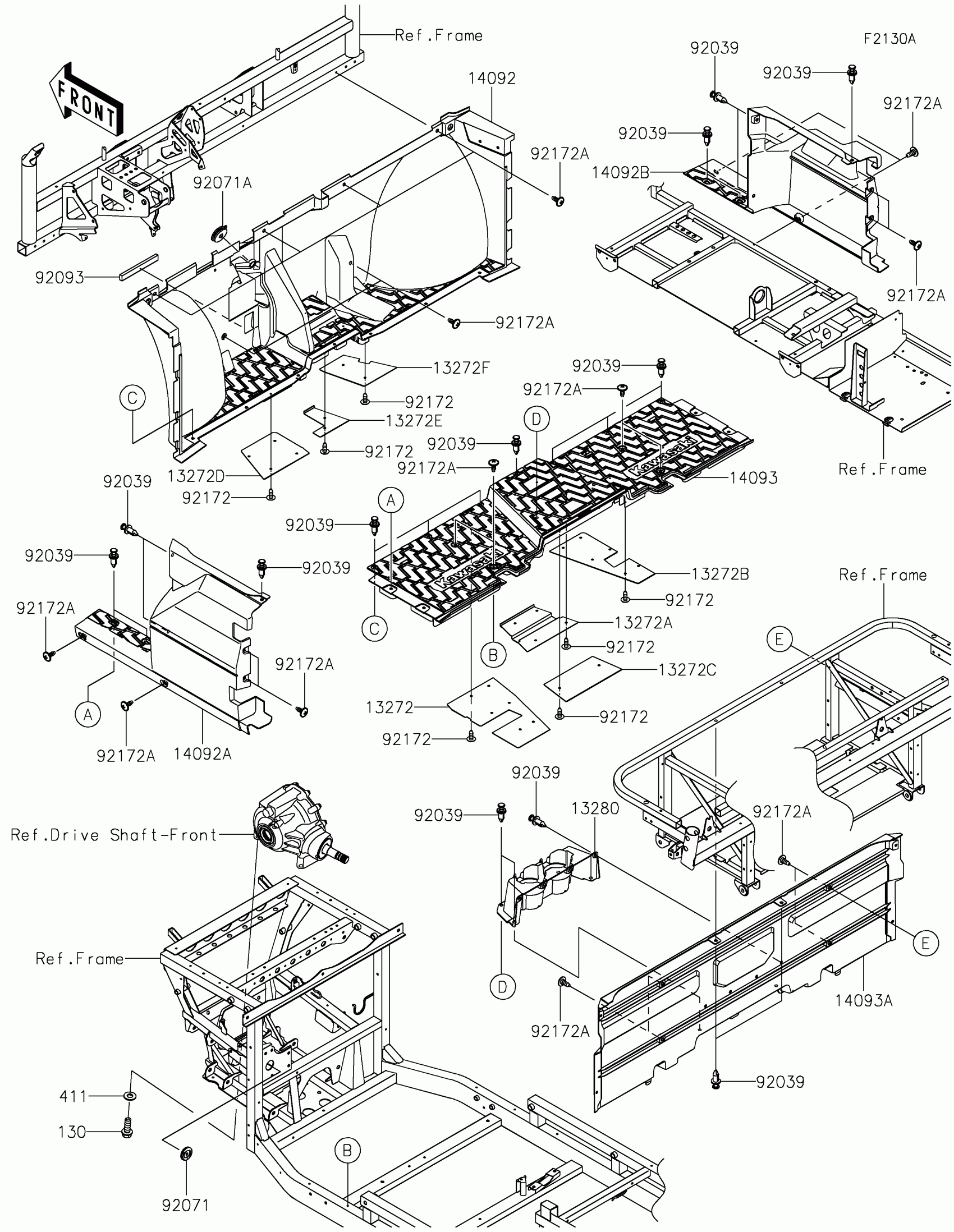

Kawasaki MULE PRO-FXT™ 1000 LE Frame Fittings(Front)(ATFNN/ATFNL) Diagram

Description

Price

13272

PLATE,FR FLOOR,LH

13272-7270

$44.65

13272A

PLATE,FR FLOOR,MID,FR

13272-7271

$44.65

13272B

PLATE,FR FLOOR,RH

13272-7272

$44.65

13272C

PLATE,FR FLOOR,MID,RR

13272-7273

$16.86

13272D

PLATE,DASH,LWR,LH

13272-7275

$16.86

13272E

PLATE,DASH,LWR,MID

13272-7276

$16.86

13272F

PLATE,DASH,LWR,RH

13272-7277

$16.86

13280

HOLDER

13280-1352

$20.81

14092

COVER,FR FLOOR

14092-1184

$245.36

14092A

COVER,SIDE,LH,FR

14092-1188

$77.48

14092B

COVER,SIDE,RH,FR

14092-1189

$77.48

14093

COVER,FLOOR,BOTTOM

14093-1426

$92.95

14093A

COVER,FR SEAT

14093-1427

$57.18

92039

RIVET

92039-0865

$0.80

92071

GROMMET,9X45X9

92071-0728

$1.14

92071A

GROMMET,8X22X8

92071-0753

$4.10

92093

SEAL,10X20X165

92093-0617

$3.53

92172

SCREW,6X16

92172-0284

$0.90

92172A

SCREW,6X16

92172-0711

$2.11

130

BOLT-FLANGED,12X35

130CA1235

$2.75

411

WASHER-PLAIN,12MM

411AA1200

$0.81
