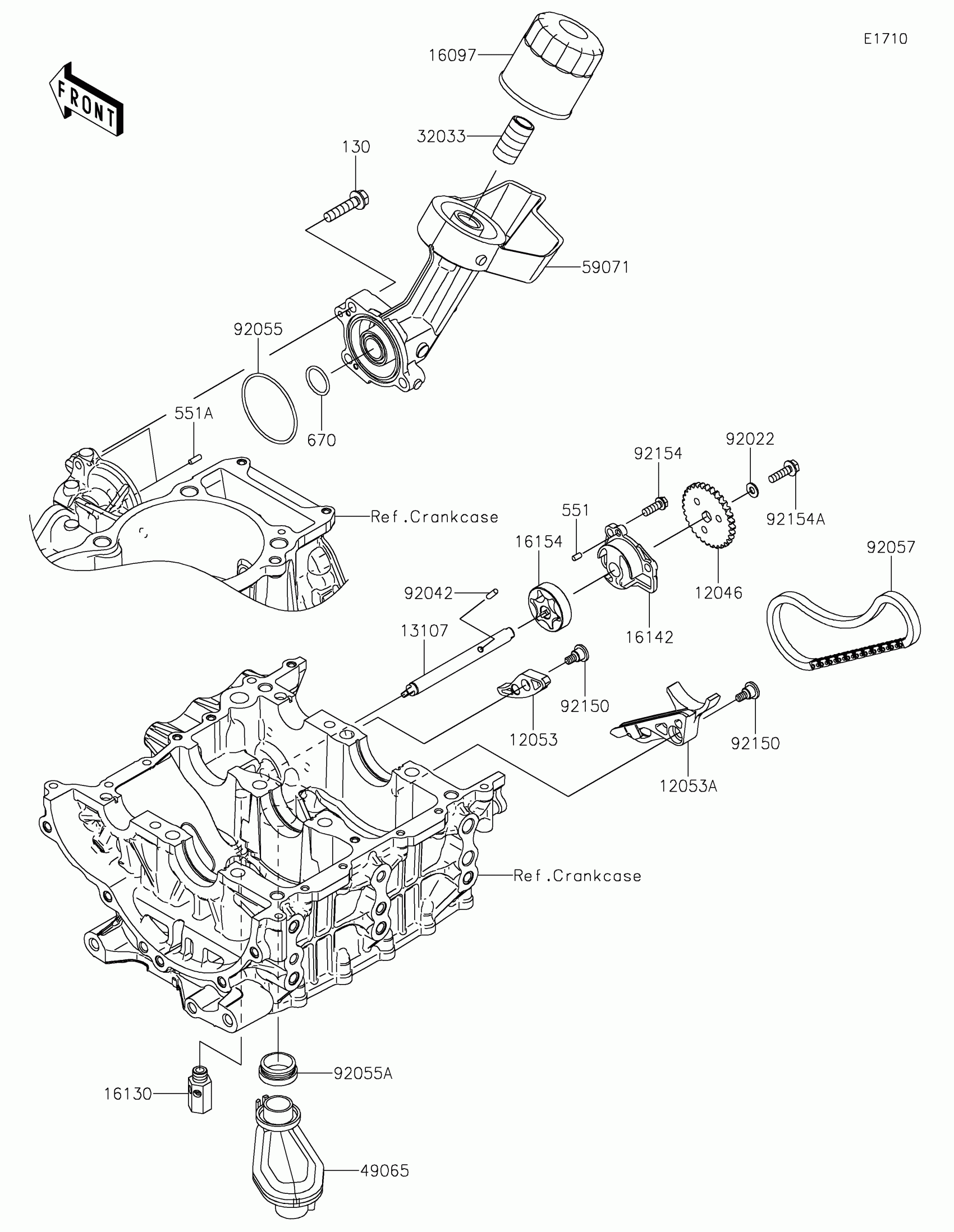

Kawasaki MULE PRO-FXT 1000 LE Ranch Edition Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,OIL PUMP,31T

12046-0614

$14.36

12053

GUIDE-CHAIN,UPP

12053-0276

$12.58

12053A

GUIDE-CHAIN,LWR

12053-0296

$17.54

13107

SHAFT,OIL PUMP

13107-0896

$26.31

16097

FILTER-ASSY-OIL

16097-0007

$11.75

16130

VALVE-ASSY-RELIEF

16130-1058

$37.32

16142

COVER-PUMP

16142-0774

$72.03

16154

ROTOR-PUMP

16154-0779

$46.37

32033

PIPE,OIL FILTER

32033-1535

$9.85

49065

FILTER-OIL

49065-0729

$24.83

59071

JOINT,OIL FILTER

59071-0800

$195.32

92022

WASHER,6X12.8X1.2

92022-1827

$3.57

92042

PIN,DOWEL,4X13.8

92042-030

$2.99

92055

RING-O,59.5X2.4

92055-0753

$3.13

92055A

RING-O,OIL FILTER

92055-1503

$7.25

92057

CHAIN,98XRH2010-70M

92057-0765

$34.50

92150

BOLT,6MM

92150-1090

$5.69

92154

BOLT,FLANGED,6X18

92154-0499

$1.44

92154A

BOLT,FLANGED,6X22

92154-1525

$1.47

130

BOLT-FLANGED,8X35

130BA0835

$1.13

551

PIN-DOWEL,4X8

551A0408

$0.68

551A

PIN-DOWEL

551A0412

$1.39

670

O RING,22MM

670D2022

Unavailable
