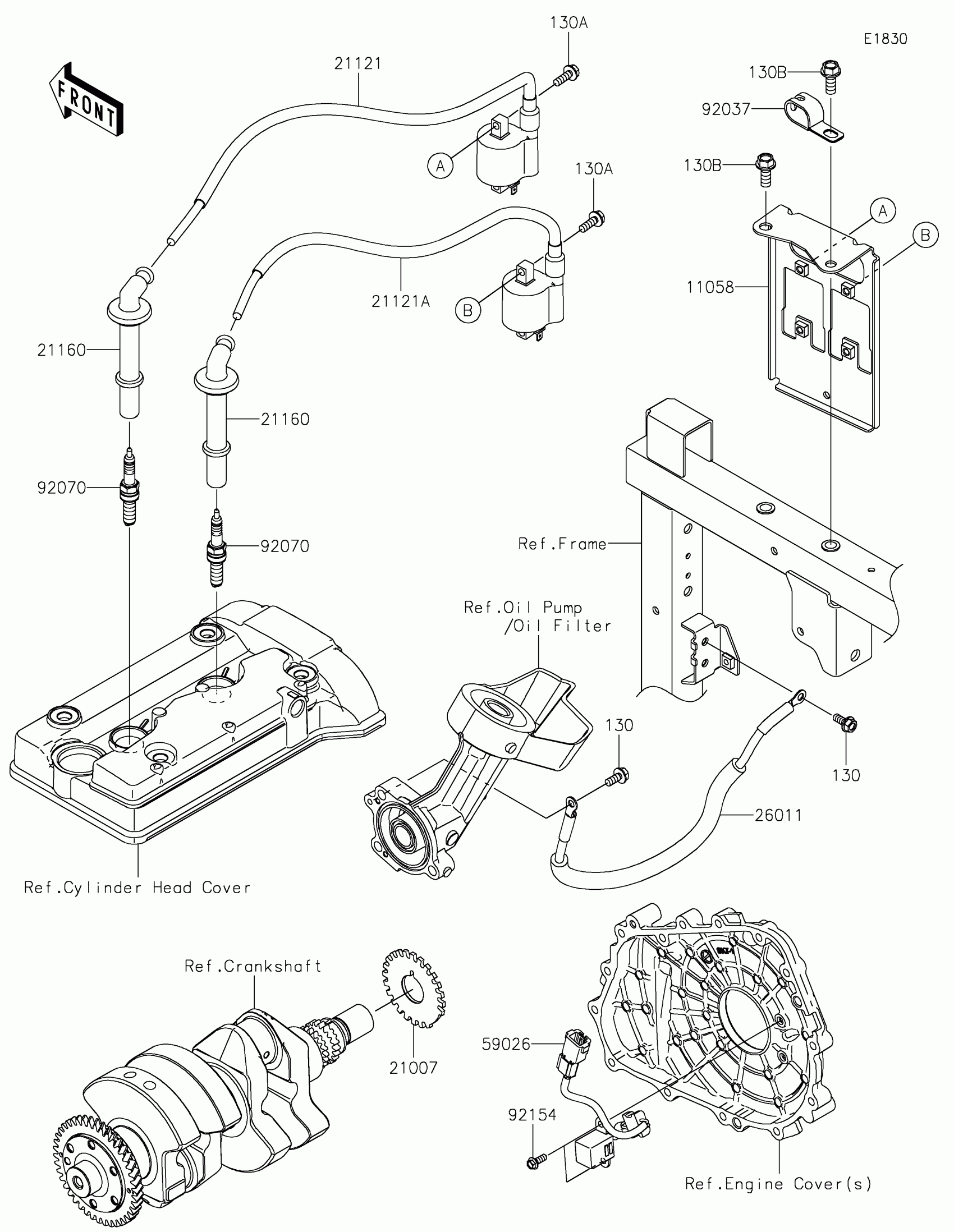

Kawasaki MULE PRO-FXT 1000 LE Ranch Edition Ignition System Diagram

Description

Price

11058

BRACKET,COIL-IGNITION

11058-0333

$16.28

21007

ROTOR

21007-0726

$18.63

21121

COIL-IGNITION,#1

21121-0751

$70.03

21121A

COIL-IGNITION,#2

21121-0752

$70.03

21160

CAP-ASSY-PLUG

21160-0030

$49.66

26011

WIRE-LEAD

26011-2420

$38.60

59026

COIL-PULSING

59026-0566

$86.65

92037

CLAMP

92037-2204

$2.26

92070

PLUG-SPARK,LMAR9G(NGK)

92070-0716

$11.62

92154

BOLT,FLANGED,5X14

92154-3884

$2.49

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,6X18

130BA0618

$1.54

130B

BOLT-FLANGED,8X20

130BA0820

$4.14
