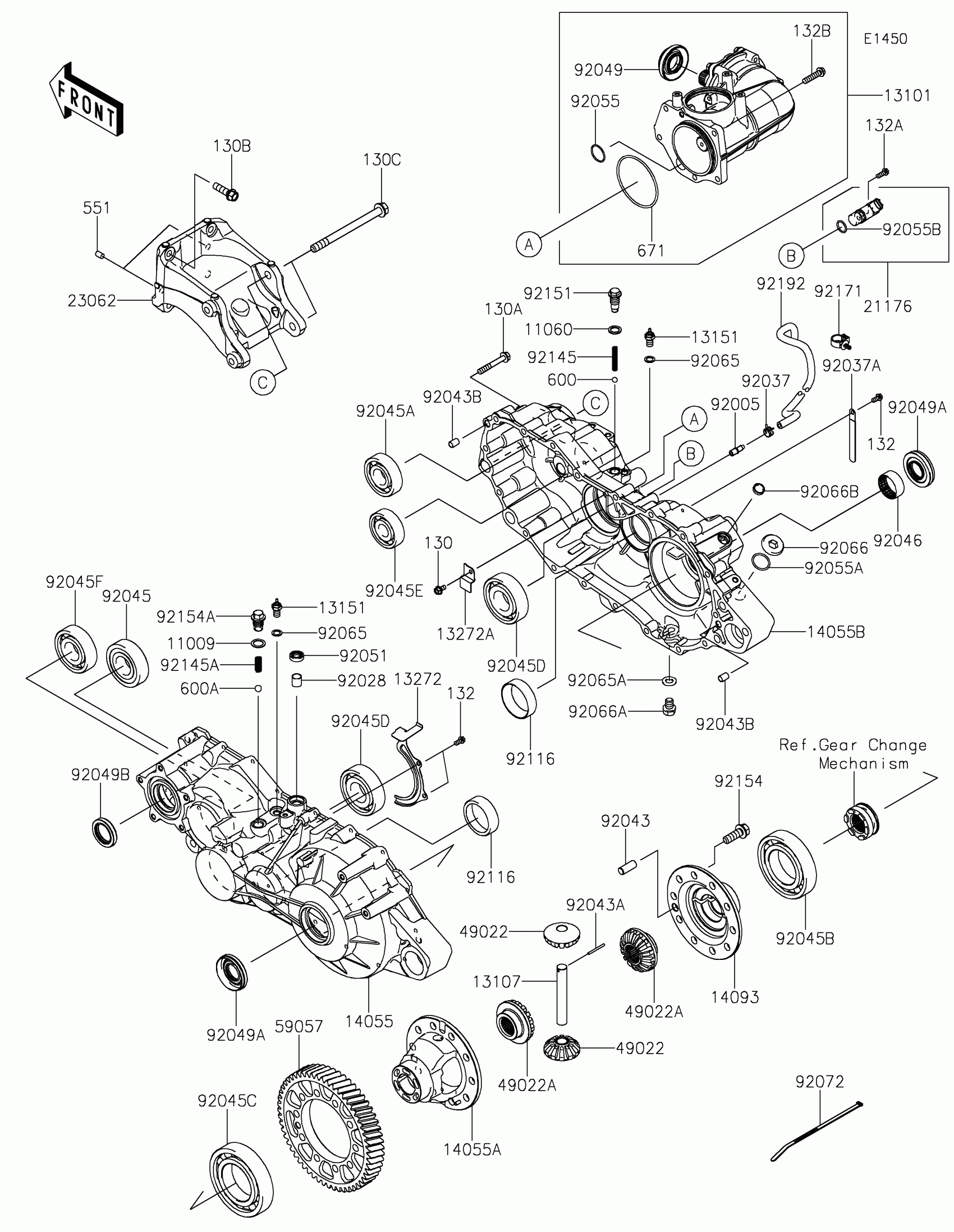

Kawasaki MULE PRO-FXT 1000 LE Ranch Edition Gear Box Diagram
#
11009
GASKET,15.5X22X1
11009-1008
$3.63
11060
GASKET,14X20X2
11060-1287
$3.50
13101
GEAR-ASSY,PARTICULAR
13101-0636
$1,290.53
13107
SHAFT
13107-0793
$28.79
13151
SWITCH-COMP,NEUTRAL
13151-1080
$10.38
13272
PLATE
13272-1624
$7.83
13272A
PLATE
13272-4169
$1.13
14055
CASE-GEAR,LH
14055-0608
$379.53
14055A
CASE-GEAR,DIFF
14055-0614
$347.20
14055B
CASE-GEAR,RH
14055-0665
$453.54
14093
COVER,DIFF
14093-0048
$111.97
21176
SENSOR,ROTATION
21176-0767
$65.52
23062
BRACKET-COMP
23062-1391
$110.34
49022
GEAR-BEVEL,PINION,12T
49022-0585
$75.96
49022A
GEAR-BEVEL,OUTPUT,16T
49022-0589
$153.75
59057
GEAR-HELICAL,55T
59057-0012
$270.93
92005
FITTING,BREATHER
92005-1127
$17.17
92028
BUSHING
92028-1347
$8.51
92037
CLAMP,TUBE
92037-1505
$4.76
92037A
CLAMP
92037-1993
$5.52
92043
PIN,DOWEL,12X30
92043-0789
$3.63
92043A
PIN,DOWEL
92043-0806
$1.08
92043B
PIN,DOWEL,10X14
92043-1037
$0.74
92045
BEARING-BALL,63/32
92045-0764
$42.72
92045A
BEARING-BALL,63/28
92045-0765
$27.59
92045B
BEARING-BALL,6212
92045-0766
$64.48
92045C
BEARING-BALL,6213
92045-0767
$77.04
92045D
BEARING-BALL,6307C3
92045-0768
$32.37
92045E
BEARING-BALL,B22-19C3 UR
92045-0769
$43.08
92045F
BEARING-BALL,63/32C3
92045-1364
$42.60
92046
BEARING-NEEDLE,BTM35.6
92046-0612
$15.45
92049
SEAL-OIL
92049-0160
$12.92
92049A
SEAL-OIL
92049-0749
$15.80
92049B
SEAL-OIL,TC32488
92049-1361
$6.82
92051
SEAL-OIL,TB13225.5
92051-005
$7.74
92055
RING-O,1.9X26.2
92055-0782
$1.74
92055A
RING-O,25.7X2.4
92055-1136
$5.00
92055B
RING-O
92055-1639
$3.09
92065
GASKET,10.5X16X1
92065-058
$3.96
92065A
GASKET,12X22X2
92065-097
$0.74
92066
PLUG,25X8
92066-0012
$11.70
92066A
PLUG,OIL DRAIN,12X15
92066-1174
$6.16
92066B
PLUG
92066-7014
$1.72
92072
BAND,L=292.1
92072-3509
Unavailable
92116
BEARING-ROLLER,HR32206JA LC
92116-0015
$11.71
92145
SPRING
92145-1589
$3.91
92145A
SPRING
92145-1590
$3.60
92151
BOLT,CHANGE POSITION
92151-1687
$14.71
92154
BOLT,FLANGED,12X35
92154-1332
$3.94
92154A
BOLT,CHANGE POSITION
92154-1366
$16.25
92171
CLAMP
92171-0453
$3.54
92192
TUBE,BREATHER
92192-1340
$5.86
130
BOLT-FLANGED,6X12
130BA0612
$1.72
130A
BOLT-FLANGED,8X55
130BA0855
$2.25
130B
BOLT-FLANGED,10X35
130CA1035
$6.75
130C
BOLT-FLANGED,12X150
130CA12150
$17.65
132
BOLT-FLANGED-SMALL,6X12
132BA0612
$1.20
132A
BOLT-FLANGED-SMALL,6X16
132BA0616
$1.51
132B
BOLT-FLANGED-SMALL,8X35
132BA0835
$4.76
551
PIN-DOWEL,8X12
551A0812
$3.29
600
BALL-STEEL,5/16
600A1000
$0.73
600A
BALL-STEEL,13/32"
600A1300
$0.94
671
O RING
671D2585
$7.98
