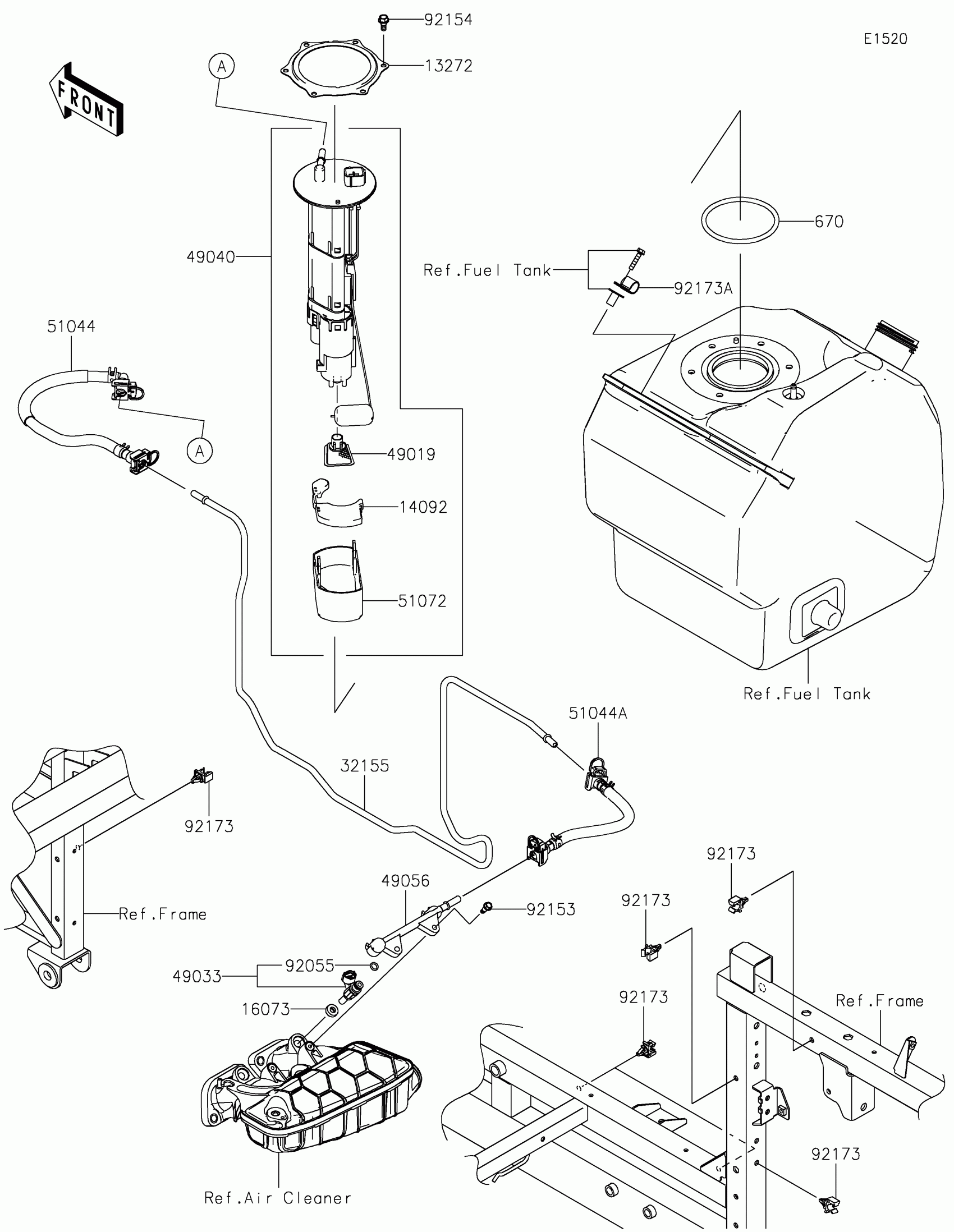

Kawasaki MULE PRO-FXT 1000 LE Ranch Edition Fuel Pump Diagram

Description

Price

13272

PLATE

13272-2500

$4.98

14092

COVER

14092-1044

$31.19

16073

INSULATOR

16073-0129

$4.53

32155

PIPE,FUEL

32155-7380

$73.46

49019

FILTER-FUEL

49019-0013

$13.34

49033

NOZZLE-INJECTION

49033-0040

$120.84

49040

PUMP-FUEL

49040-0832

$787.95

49056

PIPE-INJECTION

49056-0566

$44.05

51044

TUBE-ASSY,TANK-PIPE

51044-1260

$206.47

51044A

TUBE-ASSY,PIPE-ENGINE

51044-1261

$161.88

51072

CHAMBER-FUEL

51072-0003

$46.89

92055

RING-O,INJECTION NOZZLE

92055-0937

$7.56

92153

BOLT,FLANGED,5MM

92153-0361

$3.75

92154

BOLT,FUEL PUMP

92154-1326

$0.81

92173

CLAMP,FUEL PIPE

92173-1213

$1.32

92173A

CLAMP

92173-2551

$2.58

670

O RING

670E5090

$27.18
