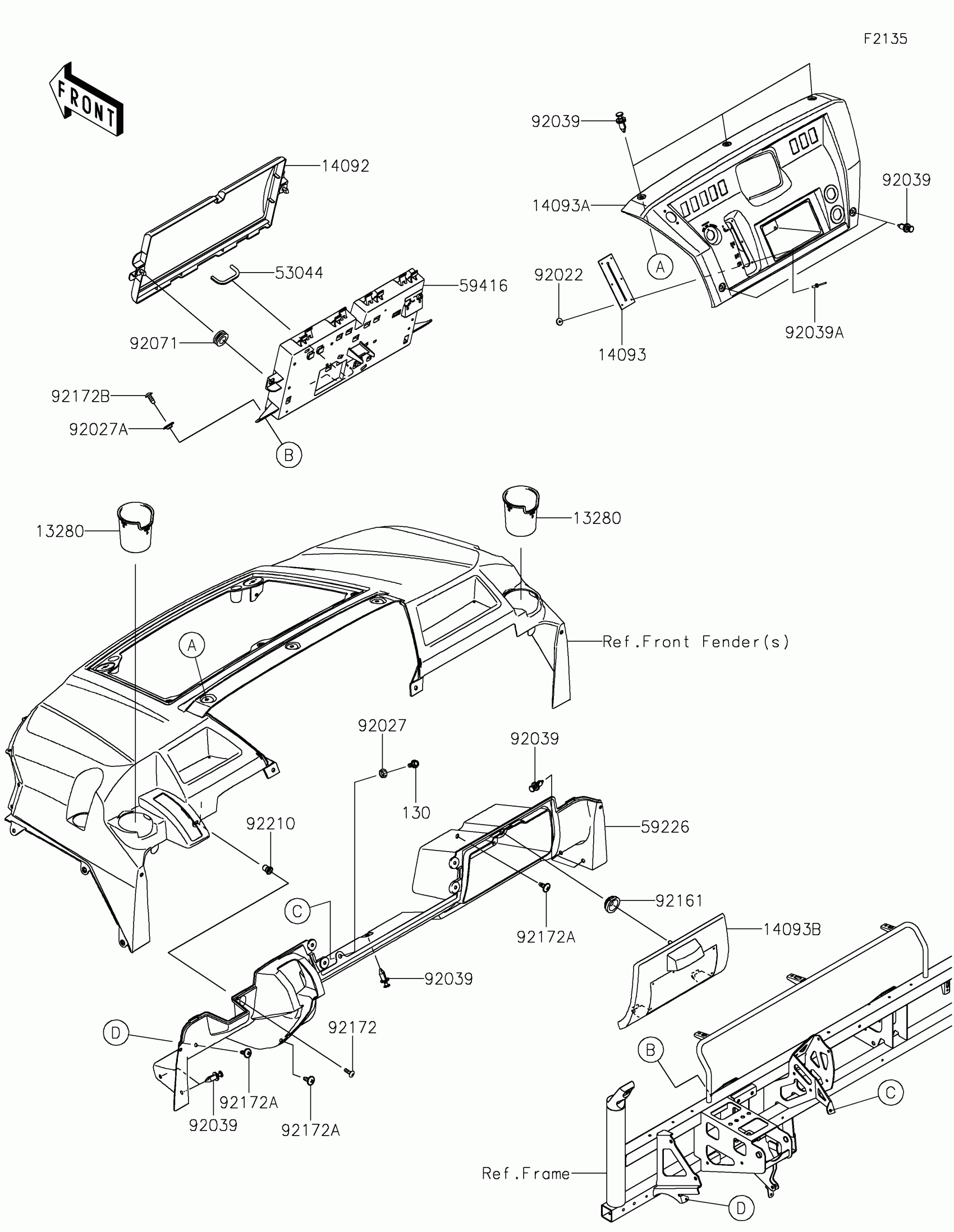

Kawasaki MULE PRO-FXT 1000 LE Ranch Edition Front Box Diagram

Description

Price

13280

HOLDER,CUP

13280-0774

$13.38

14092

COVER,ELECTRIC BOX

14092-1197

$39.28

14093

COVER,SHIFT LEVER

14093-0146

$2.70

14093A

COVER,METER

14093-0545

$71.40

14093B

COVER,GLOVE BOX

14093-1061

$25.75

53044

TRIM

53044-0572

$2.15

59226

PANEL-CONTROL

59226-0042

$114.81

59416

CASE-ELECTRIC

59416-0026

$38.44

92022

WASHER,3.3X12X1.2

92022-1407

$3.65

92027

COLLAR,L=4.6

92027-1168

$5.00

92027A

COLLAR,L=5.1

92027-1260

$6.22

92039

RIVET

92039-0776

$1.19

92039A

RIVET

92039-1231

$1.81

92071

GROMMET

92071-1131

$7.77

92161

DAMPER,7.8X30X11

92161-1953

$1.19

92172

SCREW,5MM

92172-0292

$3.39

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85

92210

NUT,WELL,5MM

92210-0370

$5.65

130

BOLT-FLANGED,6X16

130CA0616

$1.80
