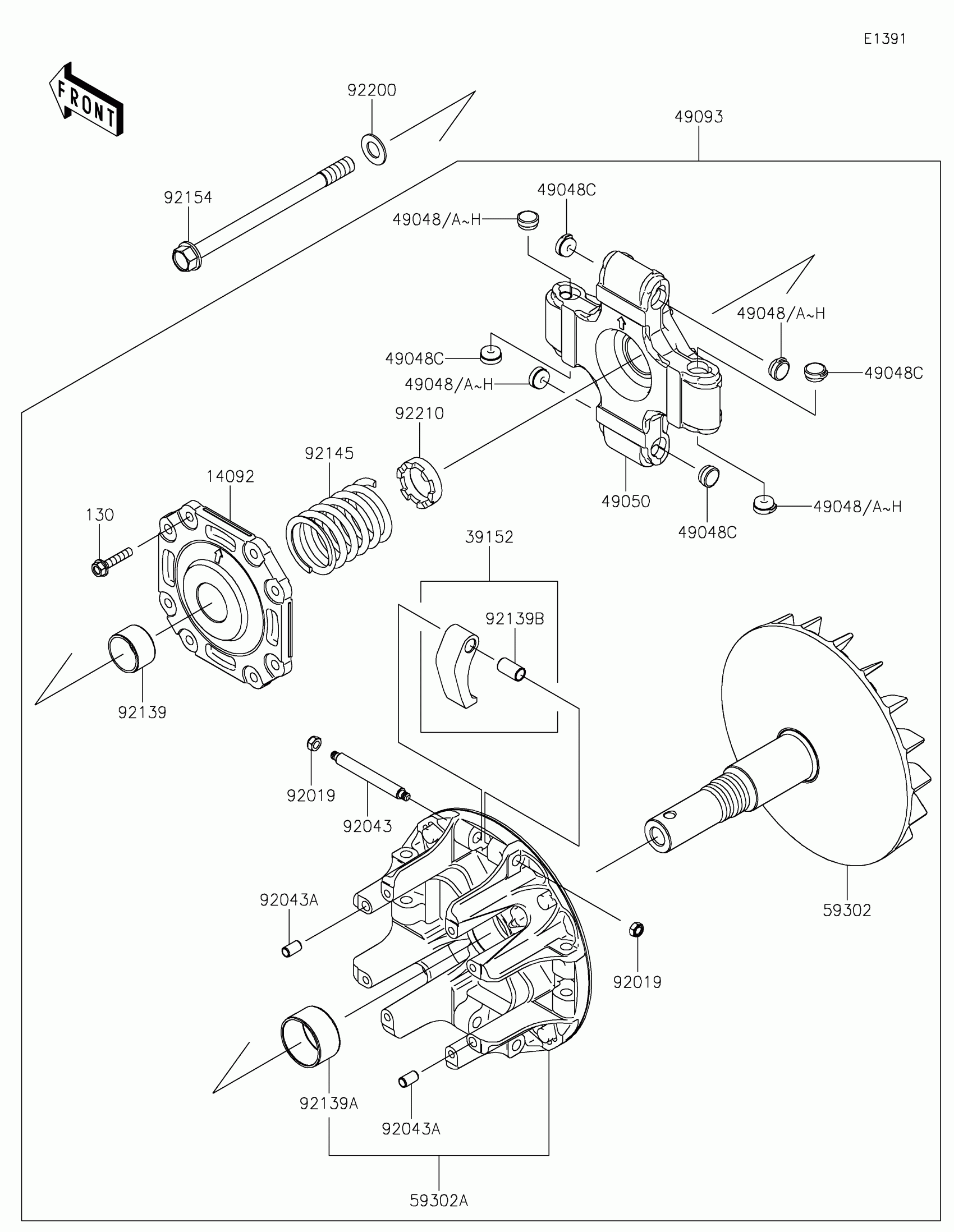

Kawasaki MULE PRO-FXT 1000 LE Ranch Edition Drive Converter Diagram

Description

Price

14092

COVER

14092-1201

$49.63

39152

WEIGHT-RAMP

39152-0107

$70.49

49048

SHOE,T=7.2

49048-1087

Unavailable

49048A

SHOE,T=7.3

49048-1088

Unavailable

49048B

SHOE,T=7.4

49048-1089

Unavailable

49048C

SHOE,T=7.5

49048-1090

$14.82

49048D

SHOE,T=7.6

49048-1091

Unavailable

49048E

SHOE,T=7.7

49048-1092

Unavailable

49048F

SHOE,T=7.8

49048-1093

Unavailable

49048G

SHOE,T=7.9

49048-1094

Unavailable

49048H

SHOE,T=8.0

49048-1095

Unavailable

49050

SPIDER

49050-0567

$183.41

49093

CONVERTER-ASSY-DRIVE

49093-0114

$1,017.32

59302

SHEAVE-COMP

59302-0113

$774.51

59302A

SHEAVE-COMP,MOVABLE

59302-0119

$309.35

92019

NUT,LOCK,6MM

92019-008

$4.26

92043

92043-0809

$16.04

92043A

PIN,6.2X8X14

92043-1263

$0.43

92139

BUSHING

92139-1243

$7.90

92139A

BUSHING

92139-1244

$12.80

92139B

BUSHING,9X11X19.75

92139-1245

$7.53

92145

SPRING

92145-2271

$44.06

92154

BOLT-FLANGED,12X171

92154-4491

$7.27

92200

WASHER,13.4X25X1.6

92200-0477

$3.71

92210

NUT,LOCK

92210-1922

$32.37

130

BOLT-FLANGED,6X30

130CA0630

$2.49
