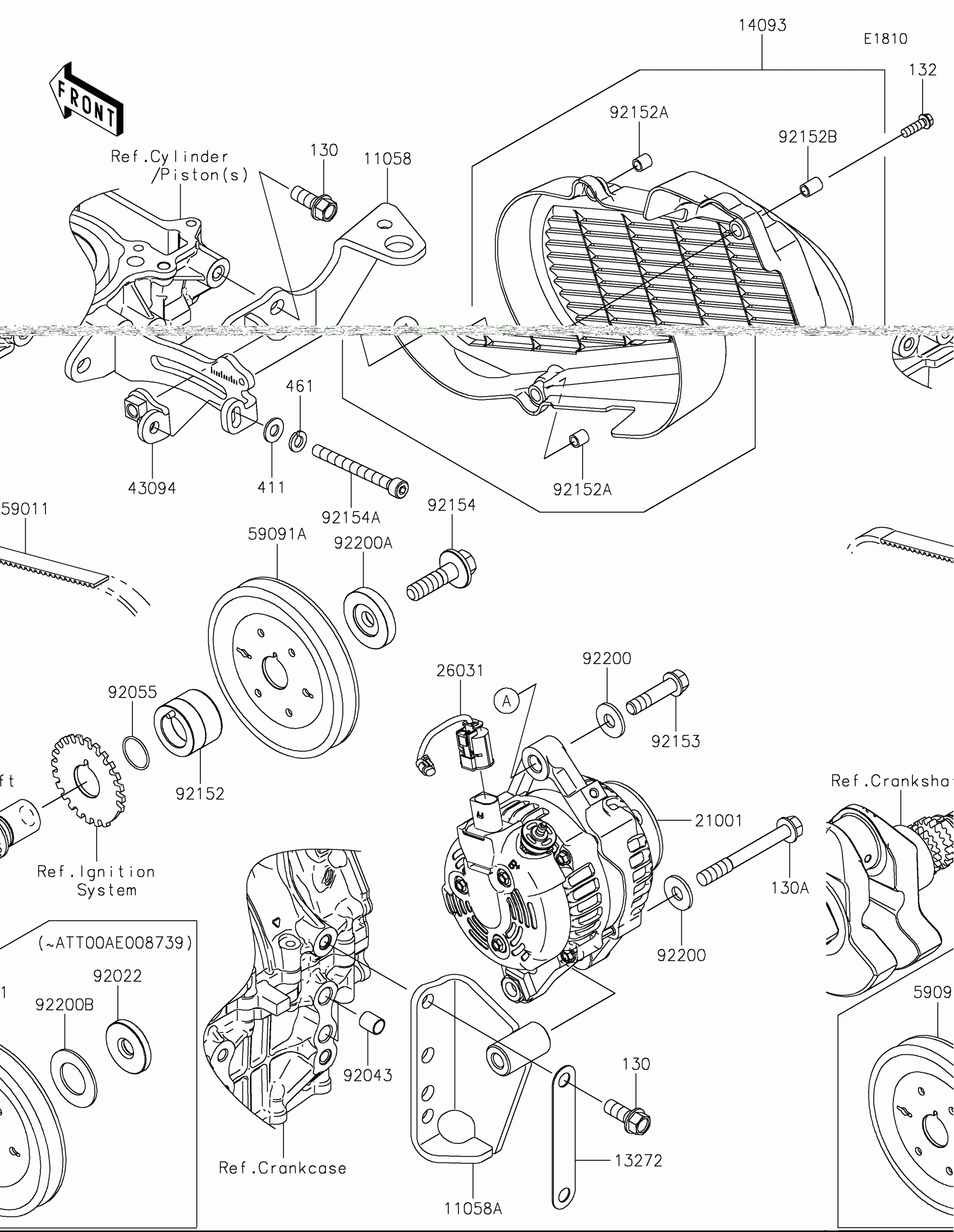

Find the part on the Generator diagram for your 2026 Kawasaki Mule PRO-FXT™ 1000 LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule PRO-FXT™ 1000 LE Generator Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11058

BRACKET,GENERATOR UPPER

11058-0328

1
Out of stock

11058A

BRACKET,GENERATOR LOWER

11058-0329

1
Out of stock

13272

PLATE,GENERATOR LOWER

13272-4113

1
Out of stock

14093

COVER,GENERATOR

14093-1393

1
Out of stock

21001

GENERATOR

21001-0687

1
Out of stock

26031

HARNESS,GENERATOR

26031-4001

1
Out of stock

43094

ADJUSTER,GENERATOR

43094-0014

1
Out of stock

59011

BELT

59011-0059

1
Out of stock

59091A

PULLEY

59091-0019

1
Out of stock

92043

PIN,10.1X12X14

92043-4009

1
Out of stock

92055

RING-O,21.5X1.5

92055-1293

1
Out of stock

92152

COLLAR,PULLEY

92152-2928

1
Out of stock

92152A

COLLAR

92152-2948

1
Out of stock

92152B

COLLAR

92152-2949

1
Out of stock

92153

BOLT,FLANGED,10X42

92153-1957

1
Out of stock

92154

BOLT-FLANGED,12X43

92154-7017

1
Out of stock

92154A

BOLT-SOCKET,8X80

92154-7077

1
Out of stock

92200

WASHER,11X26X2.6

92200-0352

1
Out of stock

92200A

WASHER

92200-2621

1
Out of stock

130

BOLT-FLANGED

130CA1025

1
Out of stock

130A

BOLT-FLANGED,10X85

130CA1085

1
Out of stock

132

1

$2.05

In stock

411

WASHER-PLAIN,8MM

411AA0800

1
Out of stock

461

WASHER-SPRING,8MM

461DA0800

1
Out of stock
