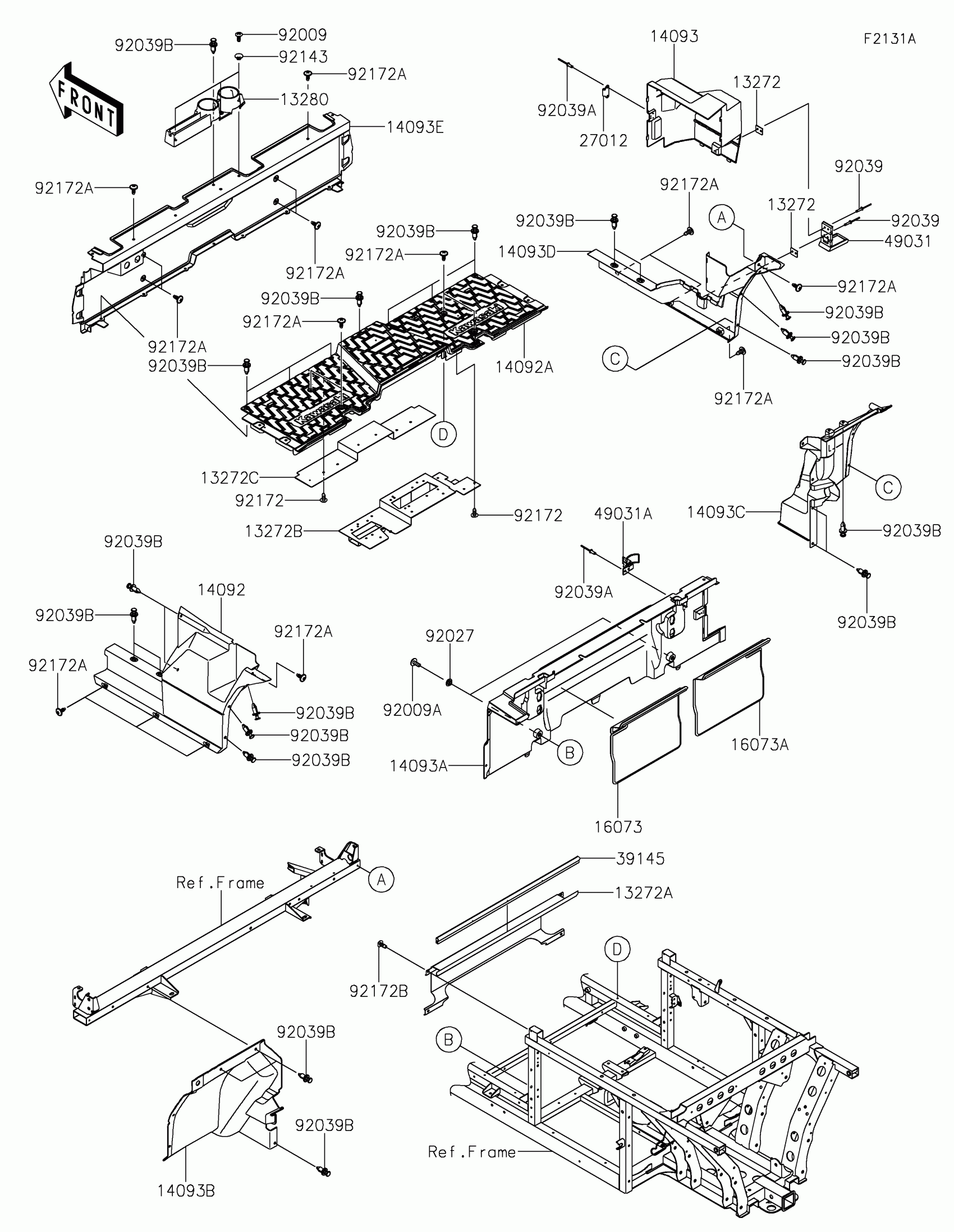

Kawasaki MULE PRO-FXT™ 1000 LE Frame Fittings(Rear)(ATFNN/ATFNL) Diagram

Description

Price

13272

PLATE,LATCH

13272-1828

$1.02

13272A

PLATE,INSULATOR

13272-4130

$59.07

13272B

PLATE,RR FLOOR,RR

13272-7269

$50.63

13272C

PLATE,RR FLOOR,FR

13272-7274

$36.61

13280

HOLDER,RR CUP

13280-1353

$16.02

14092

COVER,SIDE,LH,RR

14092-1190

$87.05

14092A

COVER,FLOOR,BOTTOM

14092-1196

$229.87

14093

COVER,A/C

14093-0366

$51.71

14093A

COVER,RR SEAT

14093-0367

$109.40

14093B

COVER,RR,FLOOR,MUD,LH

14093-0388

$75.19

14093C

COVER,RR,FLOOR,MUD,RH

14093-1397

$35.69

14093D

COVER,SIDE,RH,RR

14093-1398

$39.10

14093E

COVER,RR FLOOR,FR

14093-1428

$63.42

16073

INSULATOR,LH

16073-0814

$71.76

16073A

INSULATOR,RH

16073-0815

$71.76

27012

HOOK,STRIKER

27012-0806

$2.95

39145

TRIM-SEAL

39145-0755

$13.90

49031

LATCH,A/C

49031-0007

$5.04

49031A

LATCH,TOGGLE

49031-0015

$7.82

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92027

COLLAR,L=4.6

92027-1168

$5.00

92039

RIVET,3.2X13.4

92039-0739

$2.49

92039A

RIVET

92039-0747

$2.49

92039B

RIVET

92039-0865

$0.77

92143

COLLAR

92143-1057

$5.00

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85
