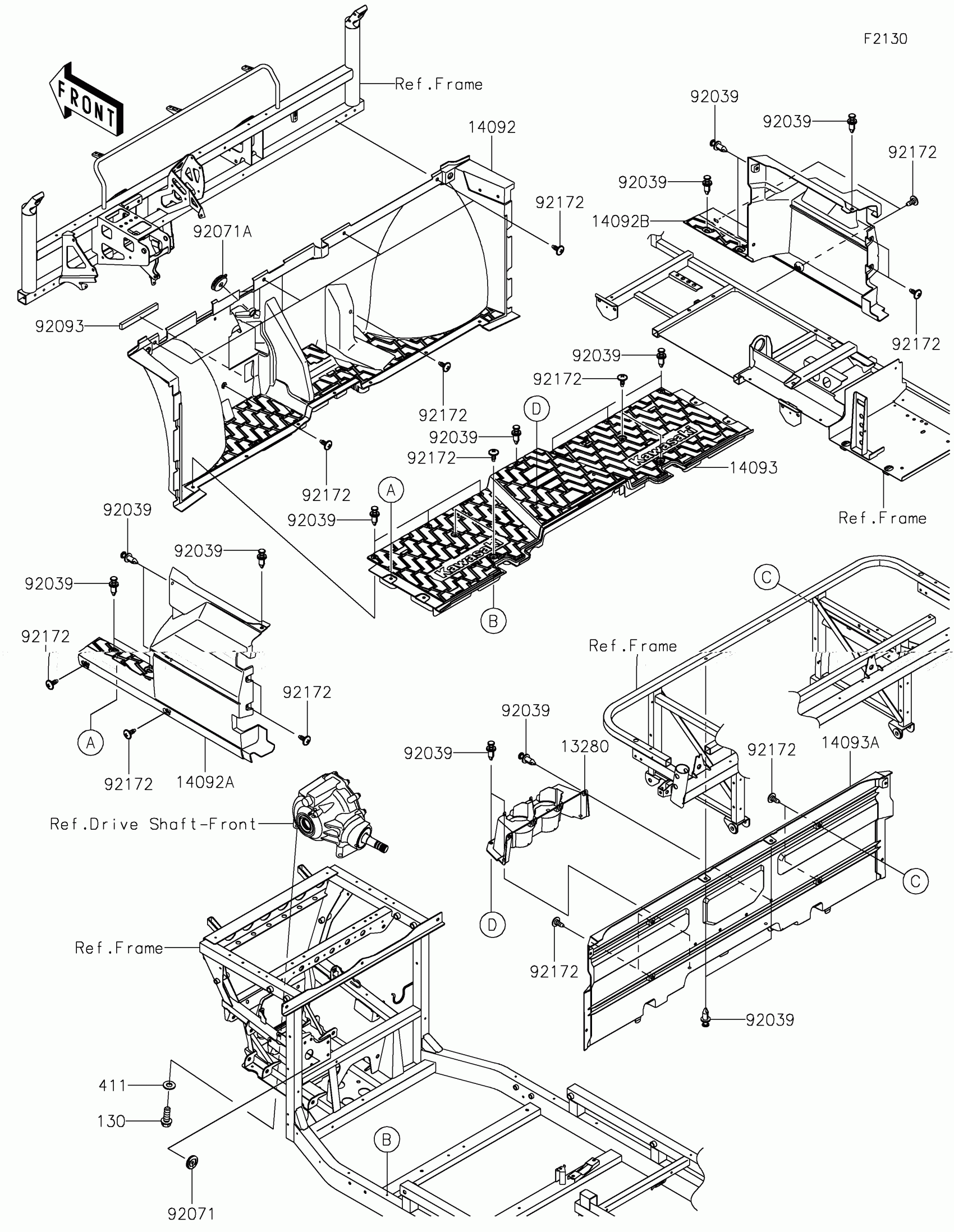

Kawasaki MULE PRO-FXT 1000 LE Frame Fittings(Front)(ARFNN-ASSNL) Diagram

Description

Price

13280

HOLDER

13280-1352

$22.32

14092

COVER,FR FLOOR

14092-1184

$240.56

14092A

COVER,SIDE,LH,FR

14092-1188

$87.05

14092B

COVER,SIDE,RH,FR

14092-1189

$87.05

14093

COVER,FLOOR,BOTTOM

14093-1426

$91.29

14093A

COVER,FR SEAT

14093-1427

$56.15

92039

RIVET

92039-0865

$0.77

92071

GROMMET,9X45X9

92071-0728

$1.50

92071A

GROMMET,8X22X8

92071-0753

$5.45

92093

SEAL,10X20X165

92093-0617

$3.91

92172

SCREW,6X16

92172-0711

$3.02

130

BOLT-FLANGED,12X35

130CA1235

$3.63

411

WASHER-PLAIN,12MM

411AA1200

$0.96
