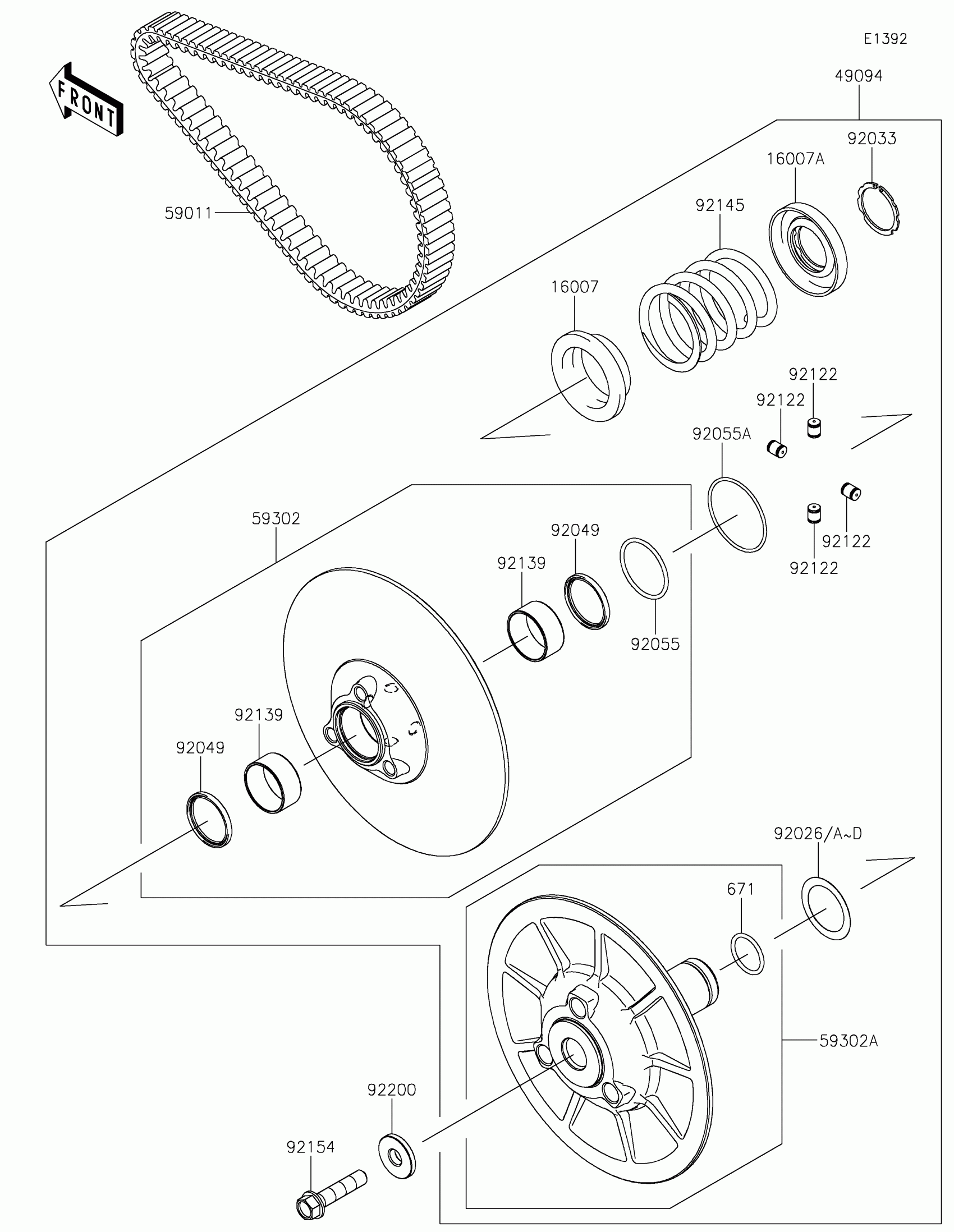

Kawasaki MULE PRO-FXT™ 1000 LE Driven Converter/Drive Belt Diagram

Description

Price

16007

SEAT-SPRING,MOVABLE

16007-0049

$17.14

16007A

SEAT-SPRING,FIXED

16007-0050

$14.76

49094

CONVERTER-ASSY-DRIVEN

49094-0102

$668.84

59011

BELT,CVT

59011-0056

$228.98

59302

SHEAVE-COMP,MOVABLE

59302-0110

$337.78

59302A

SHEAVE-COMP

59302-0111

$337.76

92026

SPACER,T=0.30

92026-0034

Unavailable

92026A

SPACER,T=1.00

92026-1565

Unavailable

92026B

SPACER,T=0.60

92026-1569

Unavailable

92026C

SPACER,T=1.40

92026-1570

Unavailable

92026D

SPACER,T=0.80

92026-1617

Unavailable

92033

RING-SNAP

92033-1317

$6.12

92049

SEAL-OIL

92049-1528

$16.41

92055

RING-O,46.4X3.1

92055-0752

$4.41

92055A

RING-O,59.5X2.4

92055-0753

$4.10

92122

ROLLER

92122-0043

$13.49

92139

BUSHING

92139-0313

$26.13

92145

SPRING

92145-1577

$51.98

92154

BOLT,FLANGED,12X55

92154-1336

$7.59

92200

WASHER

92200-0069

$14.02

671

O RING

671D2530

$5.79
