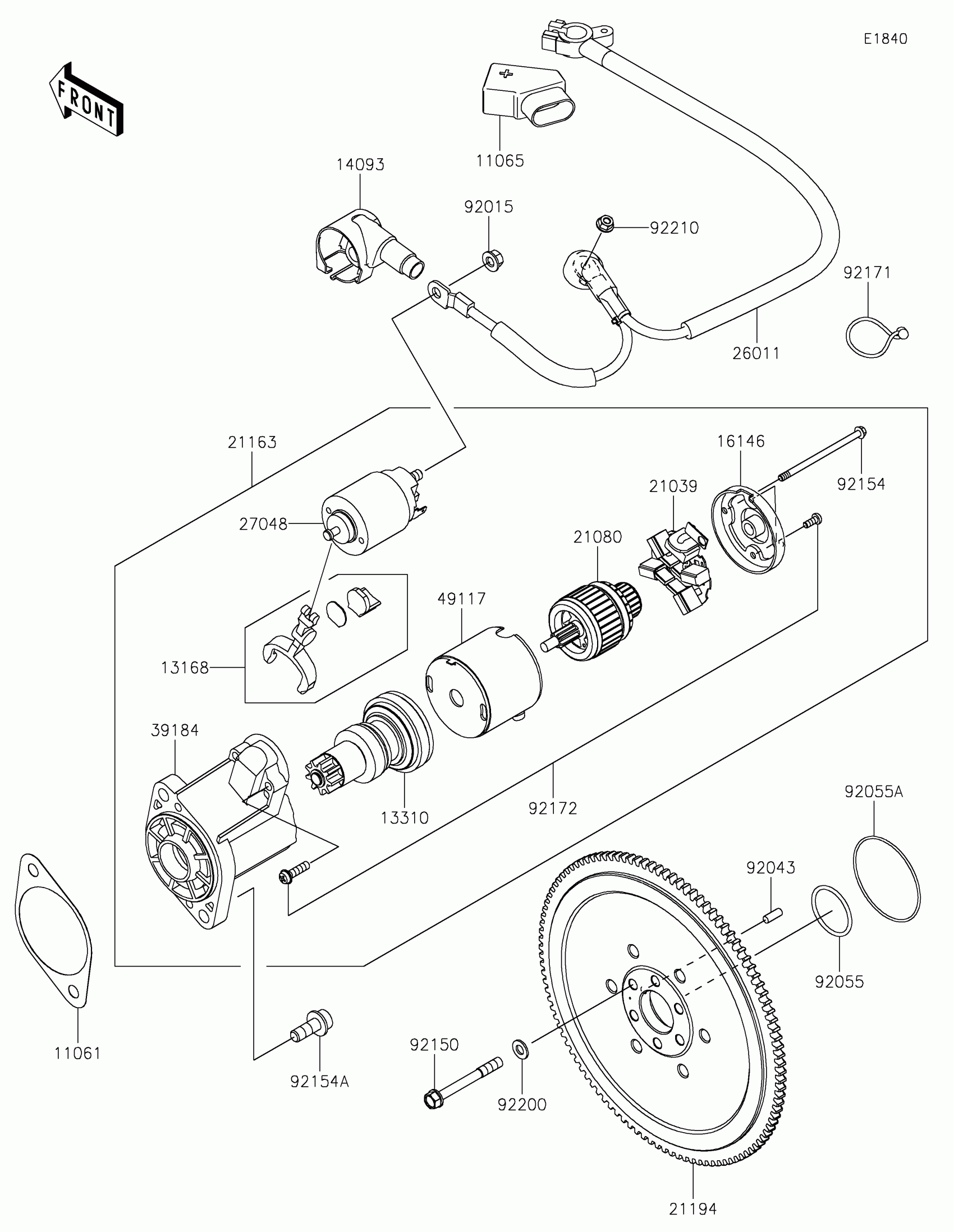

Kawasaki MULE PRO-FXT™ 1000 LE CAMO Starter Motor Diagram

Description

Price

11061

GASKET,STARTER

11061-1463

$10.00

11065

CAP

11065-0850

$3.51

13168

LEVER

13168-0935

$40.32

13310

SHAFT-ASSY

13310-0577

$467.35

14093

COVER,STARTER LEAD WIRE

14093-1523

$17.17

16146

COVER-ASSY

16146-0733

$75.96

21039

BRUSH

21039-0015

$94.96

21080

ARMATURE

21080-0015

$492.81

21163

STARTER-ELECTRIC

21163-0805

$1,151.81

21194

FLYWHEEL-COMP

21194-0725

$408.99

26011

WIRE-LEAD,BATTERY-GENERATOR

26011-2461

$169.06

27048

SWITCH-ASSY

27048-0059

$93.23

39184

BRACKET-ASSY

39184-0747

$126.32

49117

YOKE

49117-0610

$261.66

92015

NUT,8MM

92015-1402

$3.57

92043

PIN,6X16

92043-1690

$3.81

92055

RING-O,36MM

92055-1005

$4.64

92055A

RING-O,70.2X74.0X1.90

92055-1672

$3.97

92150

BOLT,8X70

92150-1483

$7.36

92154

BOLT,STARTER

92154-7040

$14.19

92154A

BOLT,SOCKET,10X25

92154-7070

$14.19

92171

CLAMP

92171-1185

$2.03

92172

SCREW

92172-0770

$1.50

92200

WASHER,8.2X16X1.6

92200-0047

$2.03

92210

NUT,6MM

92210-0188

$1.81
