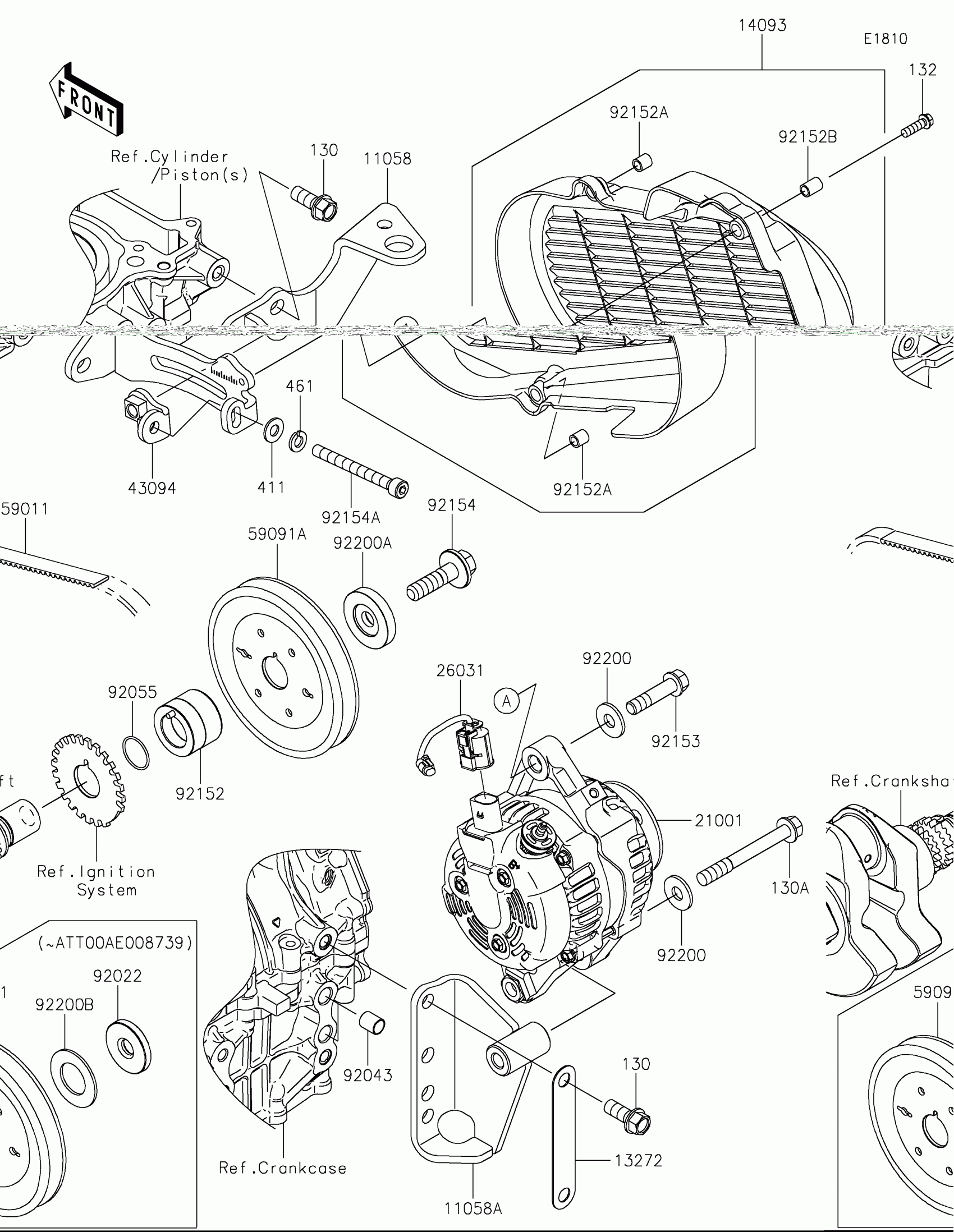

Kawasaki MULE PRO-FXT™ 1000 LE CAMO Generator Diagram
#
Description
Price
11058
BRACKET,GENERATOR UPPER
11058-0328
$132.99
11058A
BRACKET,GENERATOR LOWER
11058-0329
$118.48
13272
PLATE,GENERATOR LOWER
13272-4113
$1.98
14093
COVER,GENERATOR
14093-1393
$91.11
21001
GENERATOR
21001-0687
$773.83
26031
HARNESS,GENERATOR
26031-4001
$34.33
43094
ADJUSTER,GENERATOR
43094-0014
$9.99
59011
BELT
59011-0059
$11.43
59091A
PULLEY
59091-0019
$97.92
92043
PIN,10.1X12X14
92043-4009
$6.22
92055
RING-O,21.5X1.5
92055-1293
$5.00
92152
COLLAR,PULLEY
92152-2928
$38.95
92152A
COLLAR
92152-2948
$5.40
92152B
COLLAR
92152-2949
$5.79
92153
BOLT,FLANGED,10X42
92153-1957
$3.90
92154
BOLT-FLANGED,12X43
92154-7017
$6.58
92154A
BOLT-SOCKET,8X80
92154-7077
$7.98
92200
WASHER,11X26X2.6
92200-0352
$3.39
92200A
WASHER
92200-2621
$37.63
130
BOLT-FLANGED
130CA1025
$1.83
130A
BOLT-FLANGED,10X85
130CA1085
$3.00
132
BOLT-FLANGED-SMALL,6X20
132BA0620
$2.49
411
WASHER-PLAIN,8MM
411AA0800
$0.96
461
WASHER-SPRING,8MM
461DA0800
$0.40
