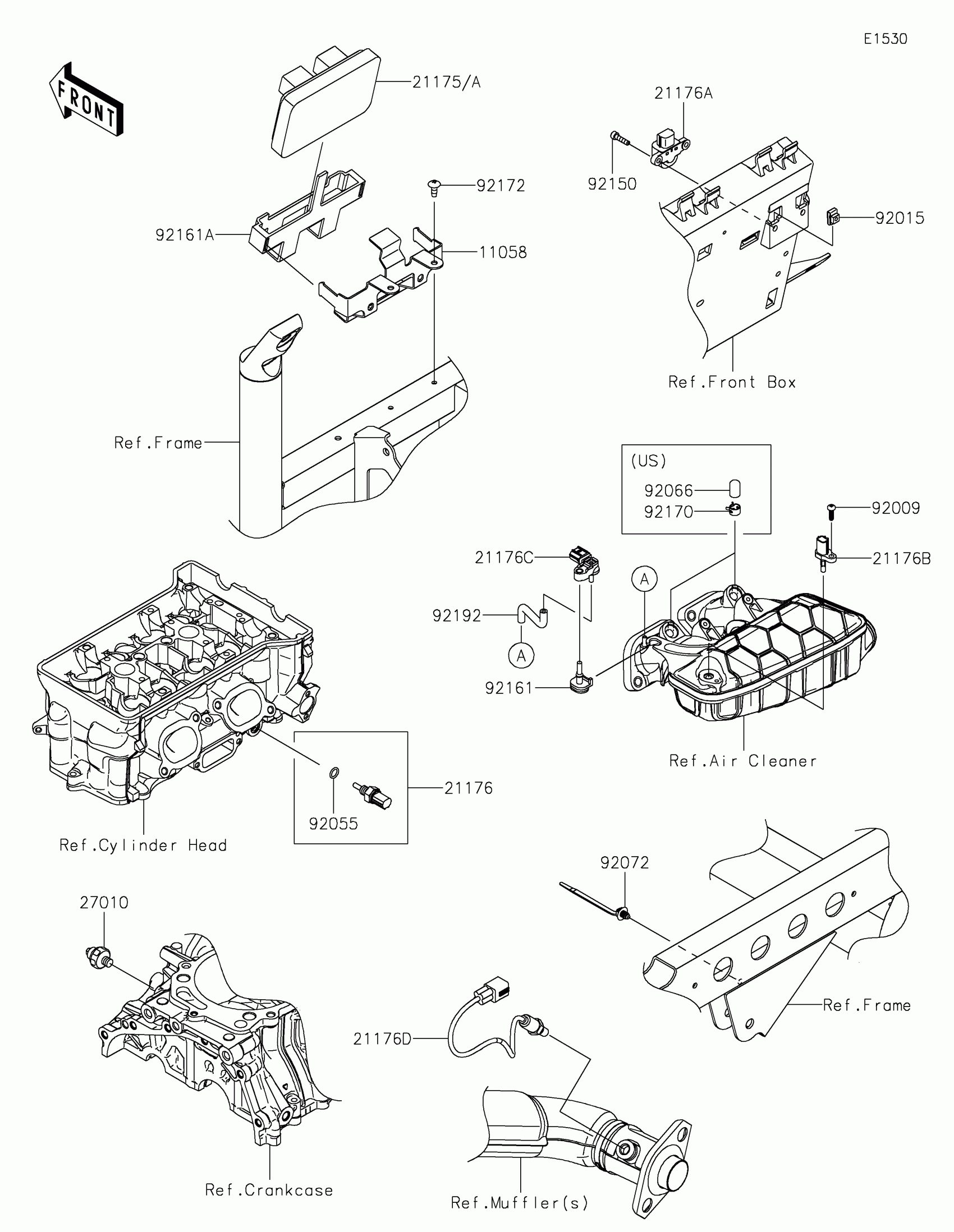

Kawasaki MULE PRO-FXT™ 1000 LE CAMO Fuel Injection Diagram

Description

Price

11058

BRACKET,ECU

11058-0323

$14.41

21175

CONTROL UNIT-ELECTRONIC

21175-1853

$863.49

21175A

CONTROL UNIT-ELECTRONIC

21175-1877

$863.49

21176

SENSOR,WATER TEMP

21176-0009

$69.24

21176A

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176B

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

21176C

SENSOR,PRESSURE

21176-0906

$222.28

21176D

SENSOR,OXYGEN

21176-1192

$208.55

27010

SWITCH,OIL PRESSURE

27010-1313

$40.13

92009

SCREW,TAPPING,5X16

92009-1264

$3.13

92015

NUT,5MM

92015-1627

$5.93

92055

RING-O,9.5X1.9

92055-0016

$8.89

92066

PLUG

92066-0862

$1.21

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92150

BOLT,SOCKET,5X20

92150-1019

$4.26

92161

DAMPER

92161-0673

$5.54

92161A

DAMPER,ECU

92161-2481

$6.78

92170

CLAMP

92170-2043

$1.19

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92192

TUBE

92192-2633

$5.74
