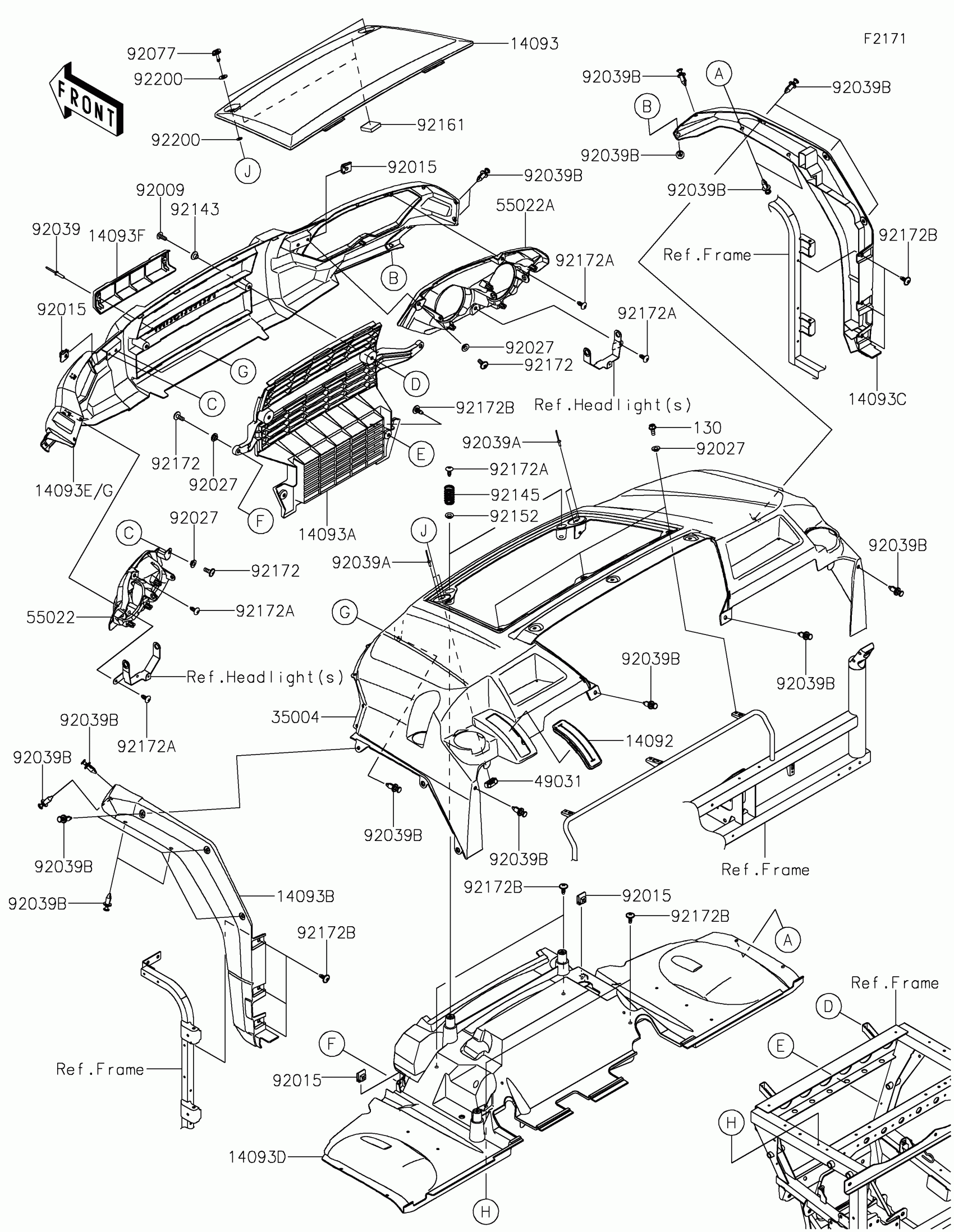

Kawasaki MULE PRO-FXT™ 1000 LE CAMO Front Fender(s) Diagram

Description

Price

14092

COVER,CENTER CONSOLE,TOP

14092-0791

$6.92

14093

COVER,OPEN,CAMOUFLAGE

14093-0019-72X

$159.20

14093A

COVER,RADIATOR

14093-0584

$62.91

14093B

COVER,SIDE,LH

14093-0596

$81.76

14093C

COVER,SIDE,RH

14093-0597

$81.76

14093D

COVER,TOP,FR INNER

14093-1405

$100.96

14093F

COVER,FR GRILLE,LOGO

14093-1434

$6.66

14093G

COVER,FR GRILLE,CAMOUFLAGE

14093-1435-72X

$197.30

35004

FENDER-FRONT,CAMOUFLAGE

35004-0337-72X

$409.99

49031

LATCH

49031-0008

$1.78

55022

COVER-HEAD LAMP,LH

55022-0322

$16.50

55022A

COVER-HEAD LAMP,RH

55022-0323

$16.50

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92027

COLLAR,L=4.6

92027-1168

$5.00

92039

RIVET,4.0X17.5

92039-0703

$0.99

92039A

RIVET,3.2X9.5

92039-0785

$2.44

92039B

RIVET

92039-0865

$0.77

92077

KNOB

92077-0030

$3.04

92143

COLLAR

92143-1057

$5.00

92145

SPRING,17X65

92145-1727

$2.47

92152

COLLAR

92152-0140

$5.25

92161

DAMPER,40X40X10

92161-1861

$2.49

92172

SCREW,6X16

92172-0236

$0.85

92172A

SCREW,6X16

92172-0284

$1.34

92172B

SCREW,6X16

92172-0826

$2.26

92200

WASHER

92200-0503

$2.55

130

BOLT-FLANGED,6X14

130BA0614

$1.20
