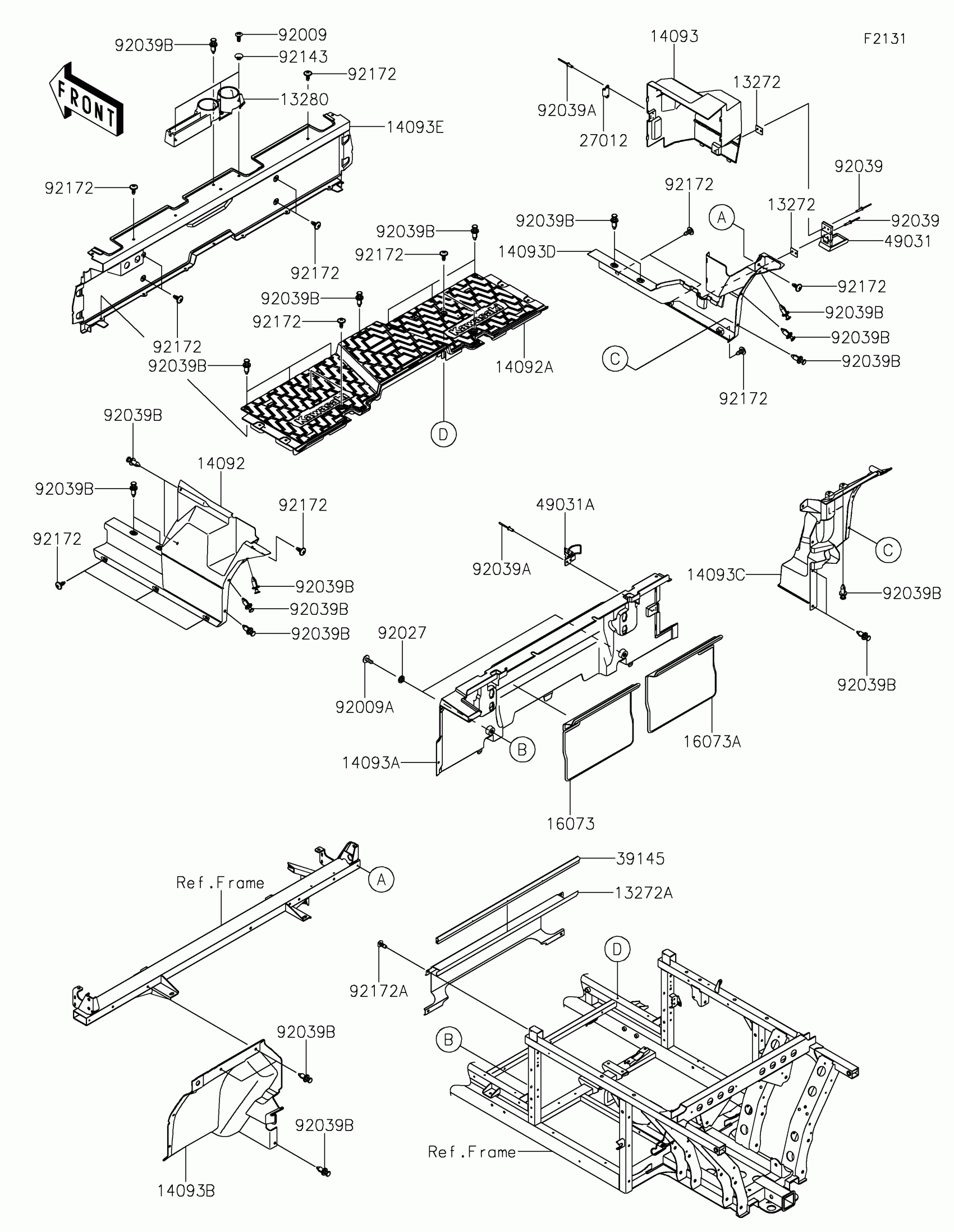

Kawasaki MULE PRO-FXT™ 1000 LE CAMO Frame Fittings(Rear)(BRFNN-BSSNL) Diagram

Description

Price

13272

PLATE,LATCH

13272-1828

$0.85

13272A

PLATE,INSULATOR

13272-4130

$60.10

13280

HOLDER,RR CUP

13280-1353

$15.08

14092

COVER,SIDE,LH,RR

14092-1190

$77.48

14092A

COVER,FLOOR,BOTTOM

14092-1196

$209.57

14093

COVER,A/C

14093-0366

$46.03

14093A

COVER,RR SEAT

14093-0367

$111.59

14093B

COVER,RR,FLOOR,MUD,LH

14093-0388

$72.72

14093C

COVER,RR,FLOOR,MUD,RH

14093-1397

Unavailable

14093D

COVER,SIDE,RH,RR

14093-1398

$39.81

14093E

COVER,RR FLOOR,FR

14093-1428

$64.41

16073

INSULATOR,LH

16073-0814

$73.13

16073A

INSULATOR,RH

16073-0815

$73.13

27012

HOOK,STRIKER

27012-0806

$2.06

39145

TRIM-SEAL

39145-0755

$13.17

49031

LATCH,A/C

49031-0007

$3.83

49031A

LATCH,TOGGLE

49031-0015

$5.97

92009

SCREW,TAPPING,6X16

92009-1166

$4.18

92009A

SCREW,6X16

92009-1621

Unavailable

92027

COLLAR,L=4.6

92027-1168

$3.81

92039

RIVET,3.2X13.4

92039-0739

$1.77

92039A

RIVET

92039-0747

$1.77

92039B

RIVET

92039-0865

$0.80

92143

COLLAR

92143-1057

$3.81

92172

SCREW,6X16

92172-0711

$2.11

92172A

SCREW,TAPPING,6X16

92172-0739

$0.73
