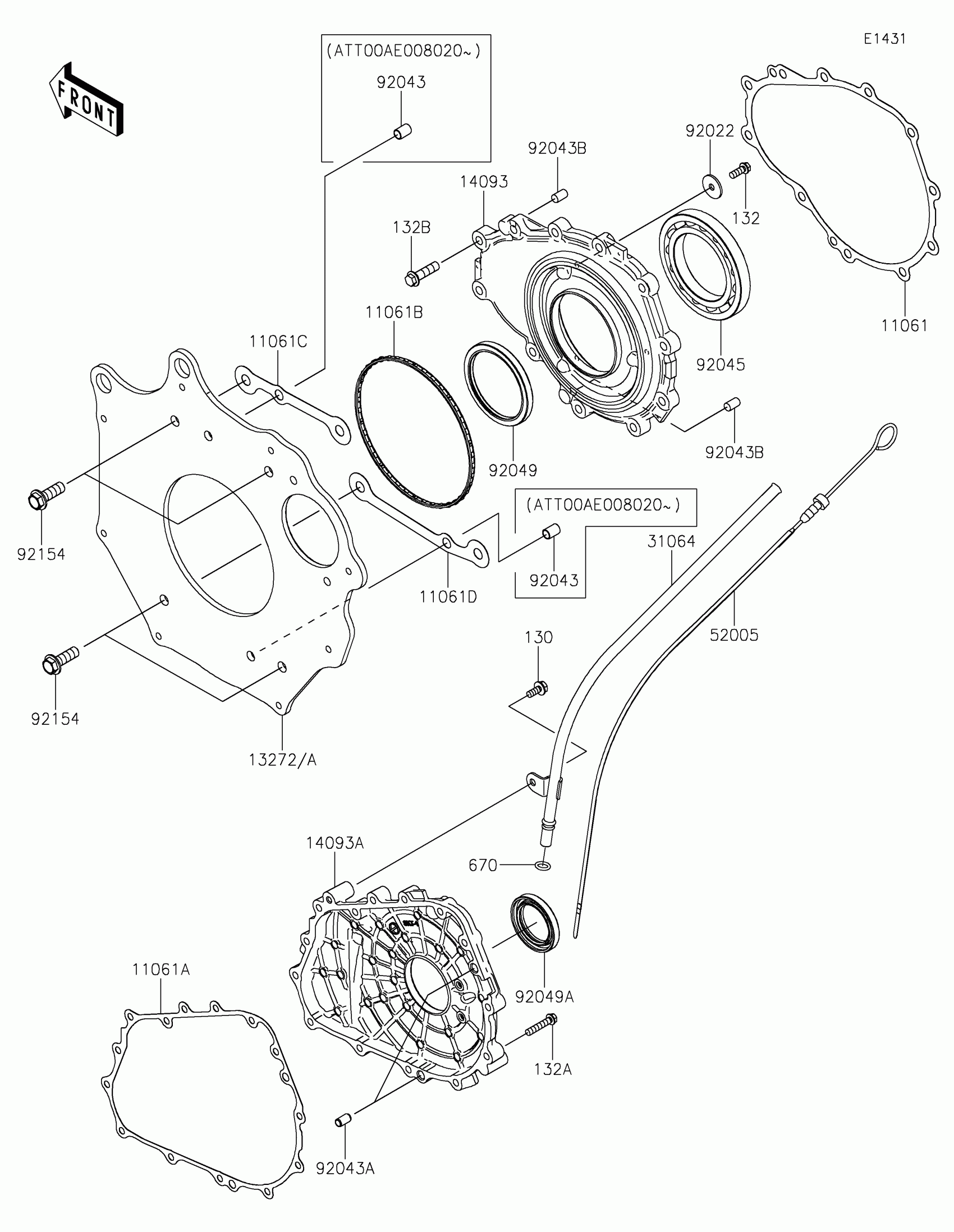

Kawasaki MULE PRO-FXT™ 1000 LE CAMO Engine Cover(s) Diagram

Description

Price

11061

GASKET,CLUTCH COVER

11061-1305

$25.76

11061A

GASKET,CRANKCASE COVER

11061-1461

$49.81

11061B

GASKET,COVER-BACK PLATE

11061-1462

$37.29

11061C

GASKET,CRANKCASE UPPER

11061-1533

$5.67

11061D

GASKET,CRANKCASE LOWER

11061-1534

$6.05

13272A

PLATE,CLUTCH COVER,BACK

13272-4346

$686.60

14093

COVER,CRANKCASE LH

14093-1385

$148.56

14093A

COVER,CRANKCASE RH

14093-1386

$152.26

31064

PIPE-COMP

31064-0753

$20.81

52005

GAUGE,OIL

52005-0783

$74.77

92022

WASHER,6.5X24X2

92022-1690

$3.92

92043

PIN,DOWEL,10X14

92043-1037

$0.74

92043A

PIN,6.2X8X14

92043-1263

$0.43

92043B

PIN,8X14

92043-1567

$2.26

92045

BEARING-BALL,16014CS45

92045-0709

$86.33

92049

SEAL-OIL

92049-0869

$94.68

92049A

SEAL-OIL

92049-0875

$19.04

92154

BOLT-FLANGED,10X30

92154-7039

$4.87

130

BOLT-FLANGED,6X14

130BA0614

$1.20

132

BOLT-FLANGED-SMALL,6X16

132BA0616

$1.51

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

132B

BOLT-FLANGED-SMALL,8X30

132BA0830

$4.45

670

O RING,10MM

670D2010

$1.94
