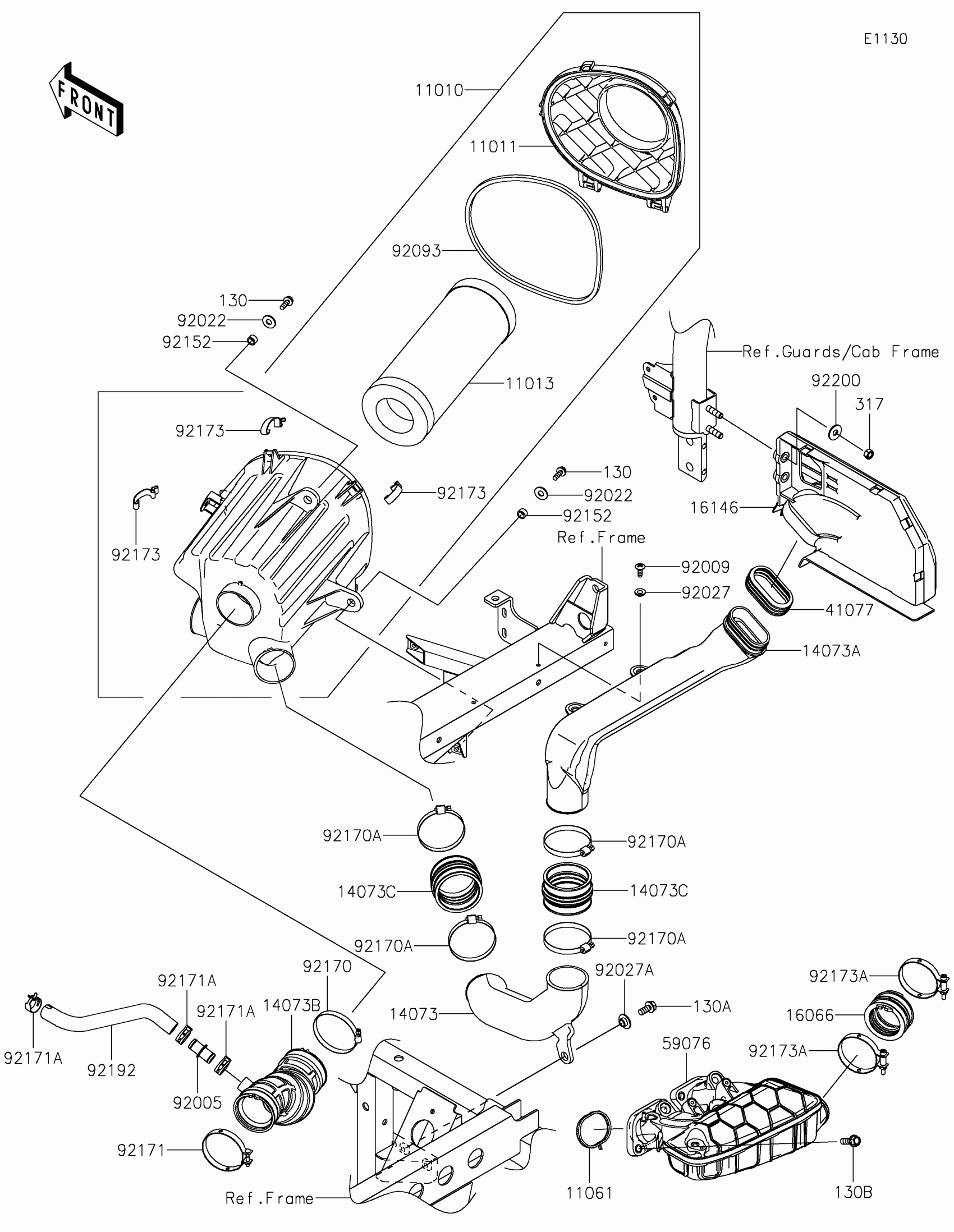

Kawasaki MULE PRO-FXT™ 1000 LE CAMO Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1818

$134.94

11011

CASE-AIR FILTER,UPP

11011-0971

$14.67

11013

ELEMENT-AIR FILTER

11013-7044

$25.17

11061

GASKET,MANIFOLD-INTAKE

11061-1459

$20.33

14073

DUCT,LOWER

14073-1887

$29.24

14073A

DUCT,UPPER

14073-1889

$40.41

14073B

DUCT,A/F CASE-THROTTLE

14073-1890

$24.11

14073C

DUCT,INTAKE JOINT

14073-1891

$10.08

16066

HOLDER-THROTTLE BODY

16066-0028

$17.39

16146

COVER-ASSY,BLACK

16146-0921-6Z

Unavailable

41077

ADAPTER

41077-0753

$5.05

59076

MANIFOLD-INTAKE

59076-0040

$142.18

92005

FITTING,DUCT-BREATHER TUBE

92005-0992

$7.22

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92022

WASHER,8.5X20X1.6

92022-1561

$4.31

92027

COLLAR,L=4.6

92027-1168

$5.00

92027A

COLLAR

92027-1745

$8.58

92093

SEAL,AIR FILTER CASE

92093-0787

$5.78

92152

COLLAR,8.8X12.3X6.9

92152-1853

$3.63

92170

CLAMP

92170-1763

$5.70

92170A

CLAMP

92170-1764

$11.48

92171

CLAMP,62MM

92171-0857

$17.27

92171A

CLAMP

92171-1277

$2.75

92173

CLAMP,AIR FILTER CASE

92173-2023

$3.76

92173A

CLAMP

92173-2674

$11.03

92192

TUBE,BREATHER

92192-2632

$17.22

92200

WASHER,8.5X23X1.6

92200-0752

$1.19

130

BOLT-FLANGED,6X18

130BA0618

$1.54

130A

BOLT-FLANGED,8X18

130BA0818

$2.55

130B

BOLT-FLANGED,8X25

130CA0825

$1.46

317

NUT-HEX-SMALL,8MM

317BA0800

$1.67
