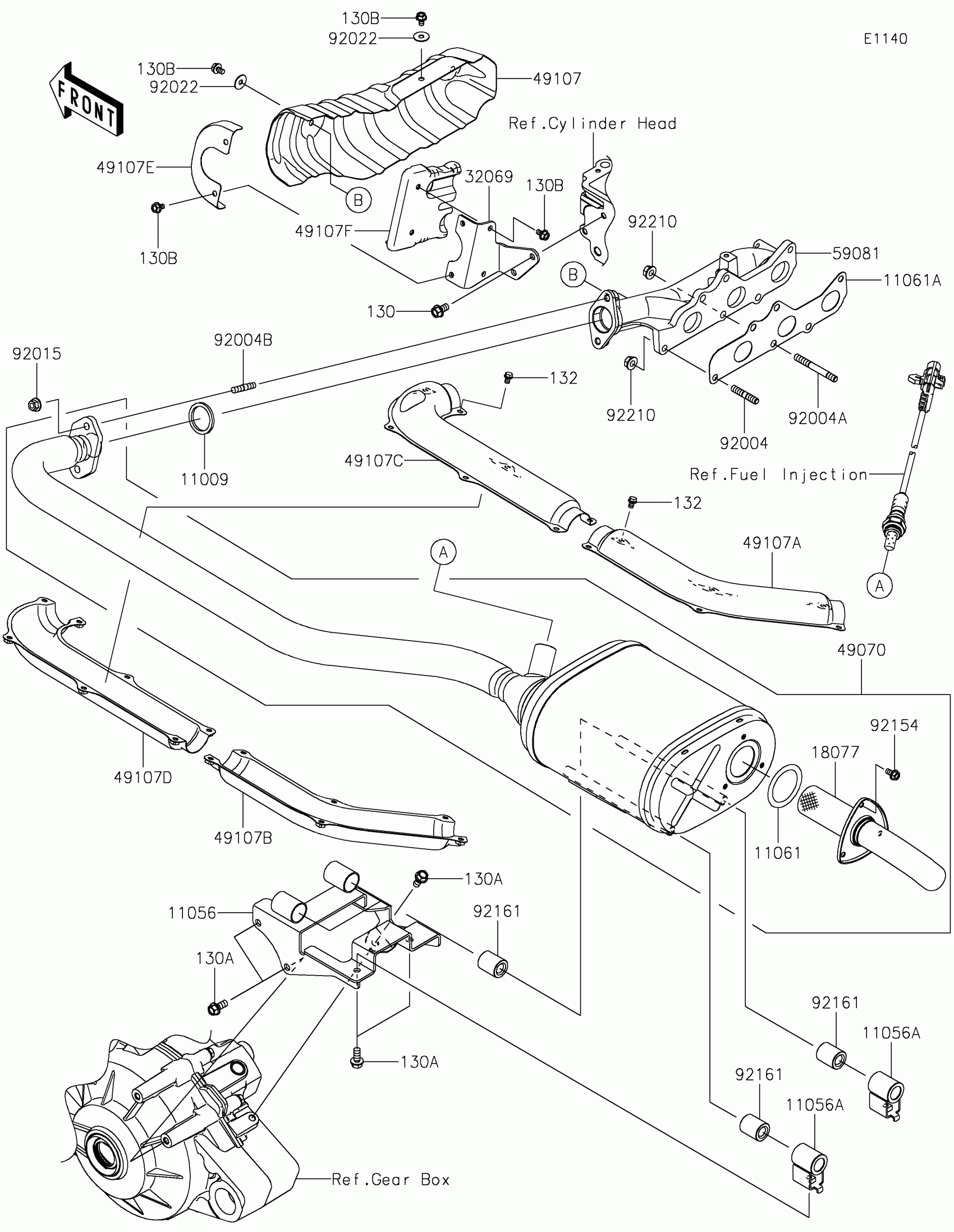

Kawasaki MULE PRO-FXR™ Muffler(s) Diagram

#

Description
Price

11009

GASKET,EXHAUST HOLDER

11009-1894

$8.03

11056

BRACKET,MUFFLER MOUNT

11056-4394

$59.91

11056A

BRACKET

11056-4440

$25.61

11061

GASKET,EXHAUST PIPE

11061-0013

$15.45

11061A

GASKET

11061-1186

$27.54

130

BOLT-FLANGED,8X14

130BA0814

$2.16

130A

BOLT-FLANGED,8X18

130BA0818

$2.55

130B

BOLT-FLANGED,6X10

130BD0610

$3.67

132

BOLT-FLANGED-SMALL,6X8

132BD0608

$3.40

18077

ARRESTER-SPARK

18077-0044

$168.58

32069

BRACKET-MUFFLER

32069-0894

$50.16

49070

MUFFLER-COMP

49070-0852

$456.43

49107

COVER-EXHAUST PIPE

49107-0767

$57.37

49107A

COVER-EXHAUST PIPE,RR,UPP

49107-0771

$21.22

49107B

COVER-EXHAUST PIPE,RR,LWR

49107-0772

$28.39

49107C

COVER-EXHAUST PIPE,FR,UPP

49107-0773

$25.72

49107D

COVER-EXHAUST PIPE,FR,LWR

49107-0774

$29.62

49107E

COVER-EXHAUST PIPE

49107-0838

$10.86

49107F

COVER-EXHAUST PIPE

49107-0839

$20.34

59081

MANIFOLD-EXHAUST

59081-0235

$354.78

92004

STUD

92004-0735

$6.18

92004A

STUD

92004-0736

$2.73

92004B

STUD,8X25

92004-1214

Unavailable

92015

NUT,8MM

92015-1402

$4.69

92022

WASHER,PLAIN,6.5X20X1

92022-165

$3.74

92154

BOLT,FLANGED,6X12

92154-0852

$1.19

92161

DAMPER

92161-0961

$24.27

92210

NUT

92210-0944

$1.17
