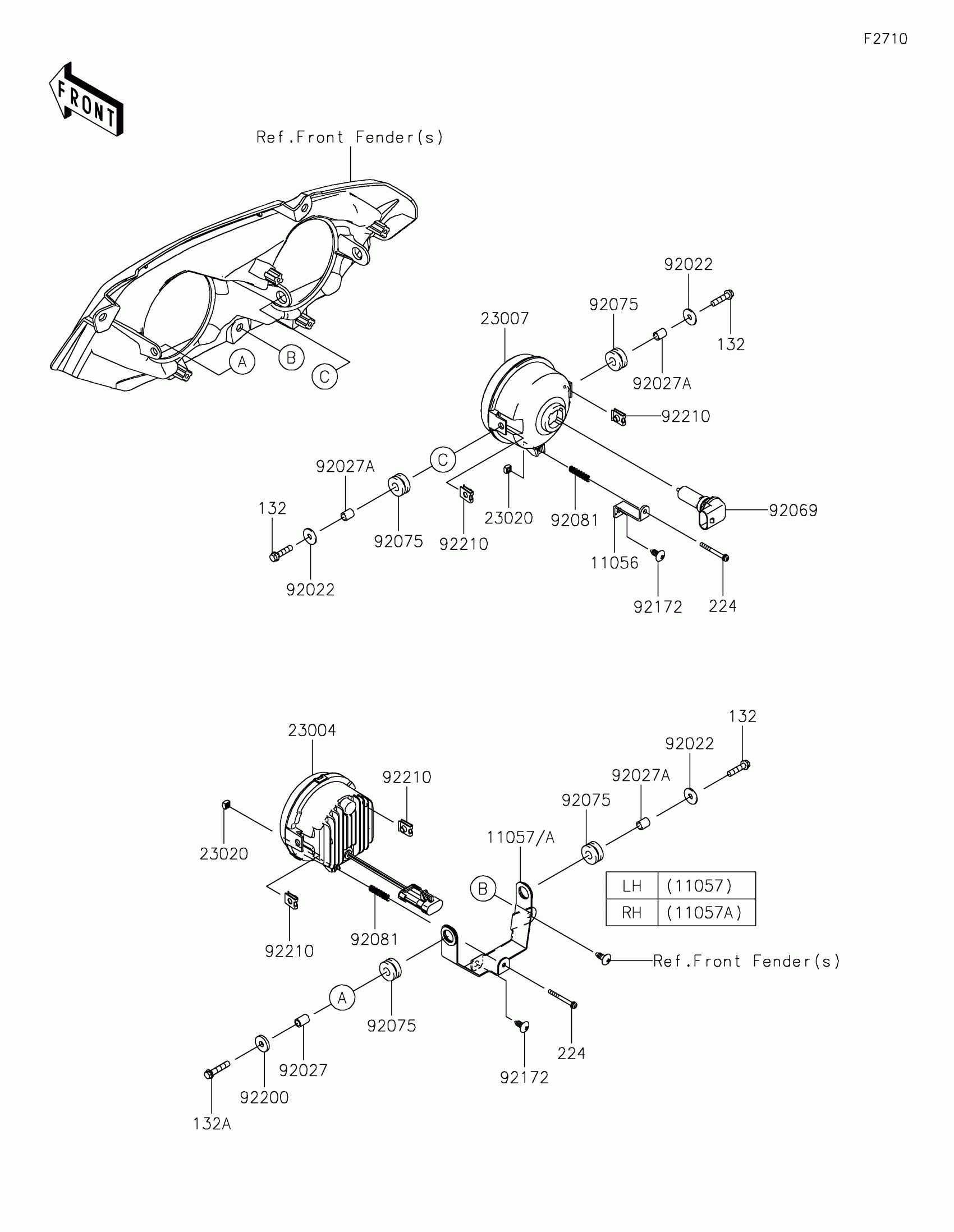

Kawasaki MULE PRO-FXR™ Headlight(s) Diagram

Description

Price

11056

BRACKET

11056-2933

$3.89

11057

BRACKET,LED HL,LH

11057-0755

$17.91

11057A

BRACKET,LED HL,RH

11057-0783

$17.91

132

BOLT-FLANGED-SMALL,6X25

132BA0625

$2.80

132A

BOLT-FLANGED-SMALL,6X30

132BA0630

$2.65

224

SCREW-PAN-WP-CROS

224AA0440

$1.71

23004

LAMP-HEAD

23004-0372

$143.52

23007

LENS-COMP,HEAD LAMP

23007-0096

$50.83

23020

NUT,4MM,FOCUS ADJUST

23020-018

$4.65

92022

WASHER,6.5X20X1.6

92022-125

$1.40

92027

COLLAR,6.8X10X14.5

92027-156

$5.00

92027A

COLLAR,6.8X10X12

92027-162

$6.57

92069

BULB,12V 35/35W

92069-0019

$15.75

92075

DAMPER,10X24X12

92075-1690

$5.00

92081

SPRING,FOCUS ADJUST

92081-1896

$5.25

92172

SCREW,6X16

92172-0284

$1.34

92200

WASHER,6.5X20X3.2

92200-0359

$2.15

92210

NUT

92210-1125

$4.76
