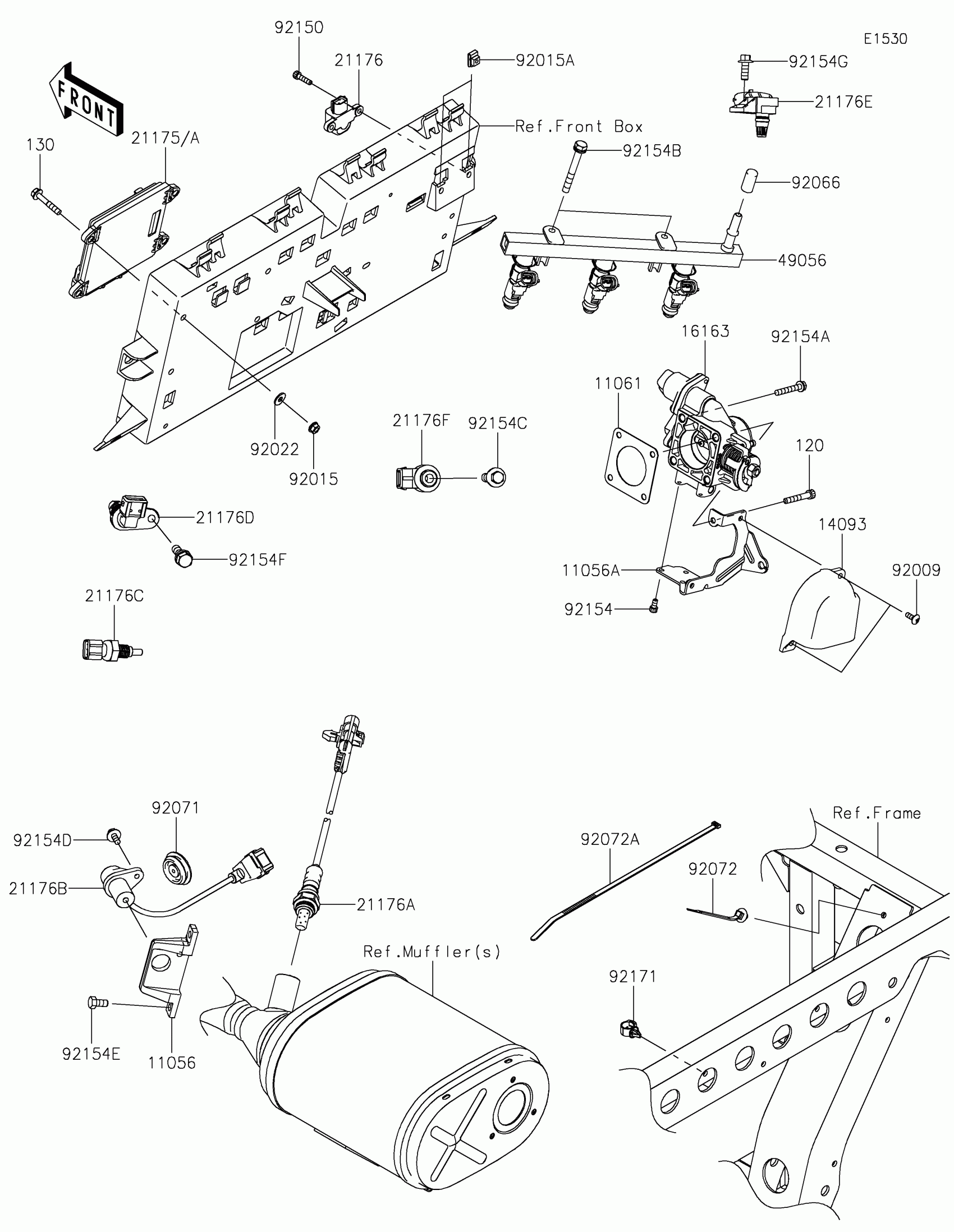

Kawasaki MULE PRO-FXR™ Fuel Injection Diagram

#

Description
Price

11056

BRACKET,CRANKSHAFT POSITION

11056-2680

$8.64

11056A

BRACKET,THROTTLE CABLE

11056-7495

$16.39

11061

GASKET,THROTTLE

11061-0954

$1.44

120

BOLT-SOCKET,6X40

120CA0640

$2.06

130

BOLT-FLANGED,6X35

130BA0635

$0.94

14093

COVER,THROTTLE

14093-0043

$5.61

16163

THROTTLE-ASSY

16163-0816

$540.06

21175

CONTROL UNIT-ELECTRONIC,DFI

21175-1167

$892.98

21175A

CONTROL UNIT-ELECTRONIC,DFI

21175-1180

$892.98

21176

SENSOR,VEHICLE-DOWN

21176-0026

$86.97

21176A

SENSOR,OXYGEN

21176-0773

$296.24

21176B

SENSOR,CRANKSHAFT POSITION

21176-0795

$56.51

21176C

SENSOR,WATER TEMP

21176-0796

$41.88

21176D

SENSOR,CAMSHAFT POSITION

21176-0797

$77.70

21176E

SENSOR,AIR INTAKE TEMP

21176-0798

$147.18

21176F

SENSOR,EXPLOSION

21176-0799

$65.68

49056

PIPE-INJECTION

49056-0038

$576.49

92009

SCREW,5X14,WHITE

92009-1366

$3.92

92015

NUT,FLANGED,6MM

92015-1367

$3.69

92015A

NUT,5MM

92015-1627

$5.93

92022

WASHER

92022-2247

$0.62

92066

PLUG

92066-0810

$0.81

92071

GROMMET

92071-0730

$4.14

92072

BAND,OS170-FT7(BLACK)

92072-1414

$3.74

92072A

BAND,L=292.1

92072-3509

Unavailable

92150

BOLT,SOCKET,5X20

92150-1019

$4.26

92154

BOLT,SOCKET,5X10

92154-1396

$1.48

92154A

BOLT,6X38

92154-1589

$1.59

92154B

BOLT,6X50

92154-1591

$1.63

92154C

BOLT,FLANGED,8X30

92154-1592

$0.82

92154D

BOLT,FLANGED,6X12

92154-1593

$0.64

92154E

BOLT,6X12

92154-1594

$0.64

92154F

BOLT,8X16

92154-1595

$1.08

92154G

BOLT,FLANGED,6X16

92154-1596

$0.67

92171

CLAMP,13MM DIA.

92171-1415

$2.03
