Description

Price

130

BOLT-FLANGED,6X16

130CA0616

$1.80

14092

COVER,CENTER CONSOLE,TOP

14092-0791

$6.92

14092A

COVER,TOP,FR INNER

14092-1194

$163.66

14093B

COVER,OPEN,M.P.SILVER

14093-0019-IS

$159.20

14093C

COVER,OPEN,C.P.RED

14093-0019-V9

$159.20

14093F

COVER,FR GRILLE,M.P.SILVER

14093-0583-IS

$137.02

14093G

COVER,FR GRILLE,C.P.RED

14093-0583-V9

$143.38

14093H

COVER,RADIATOR

14093-0584

$62.91

14093I

COVER,SIDE,LH

14093-0596

$81.76

14093J

COVER,SIDE,RH

14093-0597

$81.76

35004B

FENDER-FRONT,M.P.SILVER

35004-0337-IS

$409.99

35004C

FENDER-FRONT,C.P.RED

35004-0337-V9

$409.99

49031

LATCH

49031-0008

$1.78

55022

COVER-HEAD LAMP,LH

55022-0322

$16.50

55022A

COVER-HEAD LAMP,RH

55022-0323

$16.50

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92009A

SCREW,6X16

92009-1621

Unavailable

92015

NUT,CLAMP,6MM

92015-1678

$5.52

92027

COLLAR,L=4.6

92027-1168

$5.00

92039

RIVET

92039-0776

$1.19

92039A

RIVET,3.2X9.5

92039-0785

$2.44

92077

KNOB

92077-0030

$3.04

92143

COLLAR

92143-1057

$5.00

92145

SPRING,17X65

92145-1727

$2.47

92152

COLLAR

92152-0140

$5.25

92161

DAMPER,40X40X10

92161-1861

$2.49

92172

SCREW,6X16

92172-0284

$1.34

92172A

SCREW,6X16

92172-0711

$3.02

92200

WASHER

92200-0503

$2.55

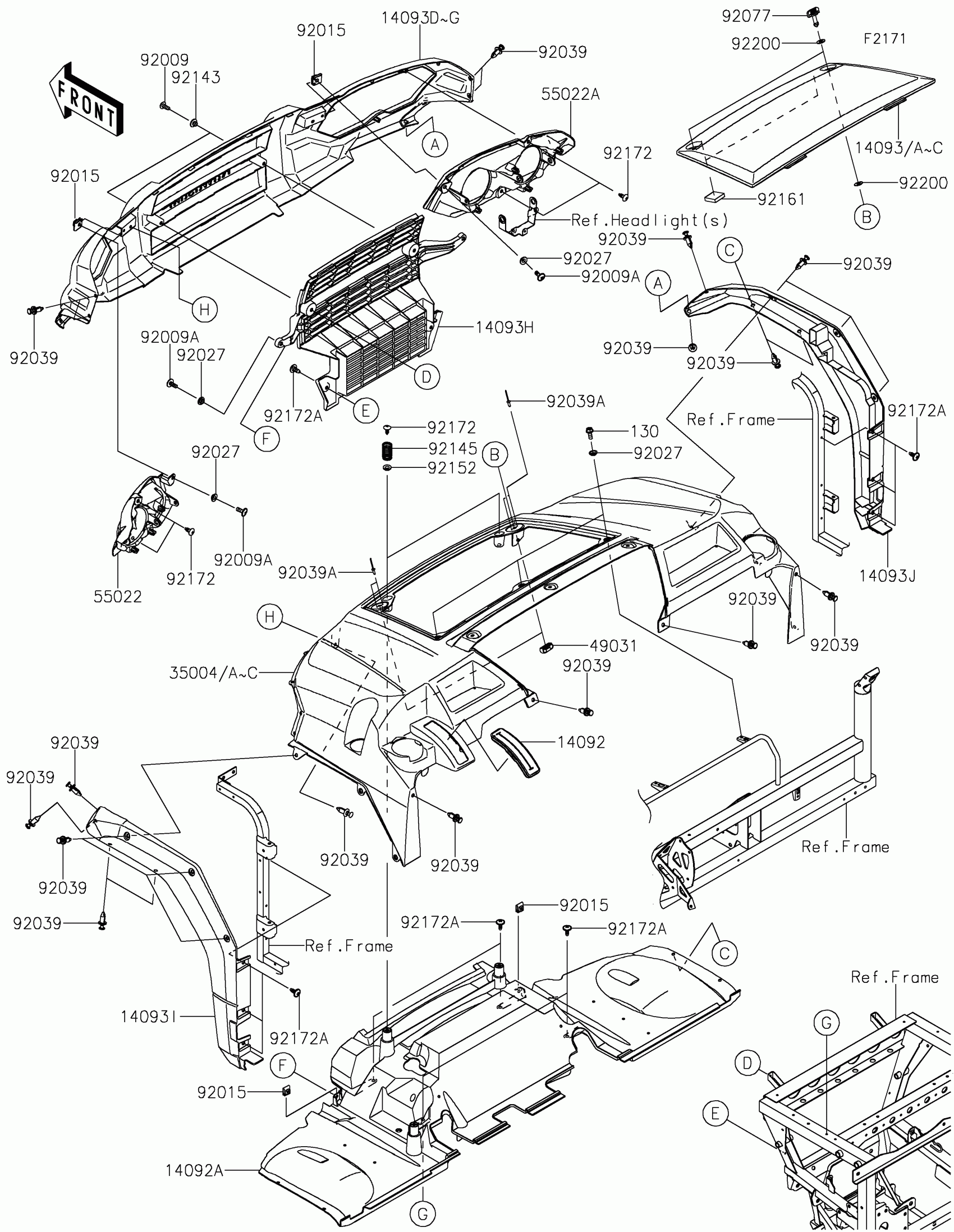

Kawasaki MULE PRO-FXR™ Front Fender(s) Diagram

BOLT-FLANGED,6X16

COVER,CENTER CONSOLE,TOP

COVER,TOP,FR INNER

COVER,OPEN,M.P.SILVER

COVER,OPEN,C.P.RED

COVER,FR GRILLE,M.P.SILVER

COVER,FR GRILLE,C.P.RED

COVER,RADIATOR

COVER,SIDE,LH

COVER,SIDE,RH

FENDER-FRONT,M.P.SILVER

FENDER-FRONT,C.P.RED

LATCH

COVER-HEAD LAMP,LH

COVER-HEAD LAMP,RH

SCREW,TAPPING,6X16

SCREW,6X16

NUT,CLAMP,6MM

COLLAR,L=4.6

RIVET

RIVET,3.2X9.5

KNOB

COLLAR

SPRING,17X65

COLLAR

DAMPER,40X40X10

SCREW,6X16

SCREW,6X16

WASHER
