Description

Price

130

BOLT-FLANGED,6X12

130BA0612

$1.72

13272

PLATE,SEAT BACK,LWR

13272-2318

$186.96

13272A

PLATE,SEAT BACK,UPP

13272-2319

$261.16

14093

COVER,RR,FLOOR,MUD,LH

14093-0388

$75.19

14093A

COVER,RR,FLOOR,MUD,RH

14093-0389

$75.19

14093B

COVER,DUST

14093-0590

$18.05

14093C

COVER,RR SIDE,LH

14093-0591

$87.05

14093D

COVER,RR SIDE,RH

14093-0592

$54.21

14093E

COVER,A/C,RH

14093-0593

$51.71

14093F

COVER,FR ENG

14093-0594

$42.61

14093G

COVER

14093-0633

$32.67

27012

HOOK,STRIKER

27012-0806

$2.95

49031

LATCH,TOGGLE

49031-0015

$7.82

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92015

NUT,LOCK,FLANGED,6MM

92015-1339

$1.35

92027

COLLAR,L=4.6

92027-1168

$5.00

92039

RIVET

92039-0086

$5.54

92039A

RIVET

92039-0747

$2.49

92039B

RIVET

92039-0776

$1.19

92066

PLUG,36X20

92066-0812

$2.04

92075

DAMPER,6X10X15

92075-1808

$1.39

92075A

DAMPER,RUBBER

92075-261

$4.31

92093

SEAL,DUST,20X20X565

92093-0631

$14.51

92093A

SEAL,DUST,20X25X280

92093-0633

$7.75

92093B

SEAL,DUST,69X207X10

92093-0645

$11.40

92093C

SEAL,DUST,15X305X20

92093-0646

$7.53

92093D

SEAL,52X72X20

92093-0651

$5.64

92093E

SEAL,99X85X30

92093-0715

$19.80

92172

SCREW,6X16

92172-0236

$0.85

92172A

SCREW,6X16

92172-0711

$3.02

92172B

SCREW,TAPPING,6X16

92172-0739

$0.85

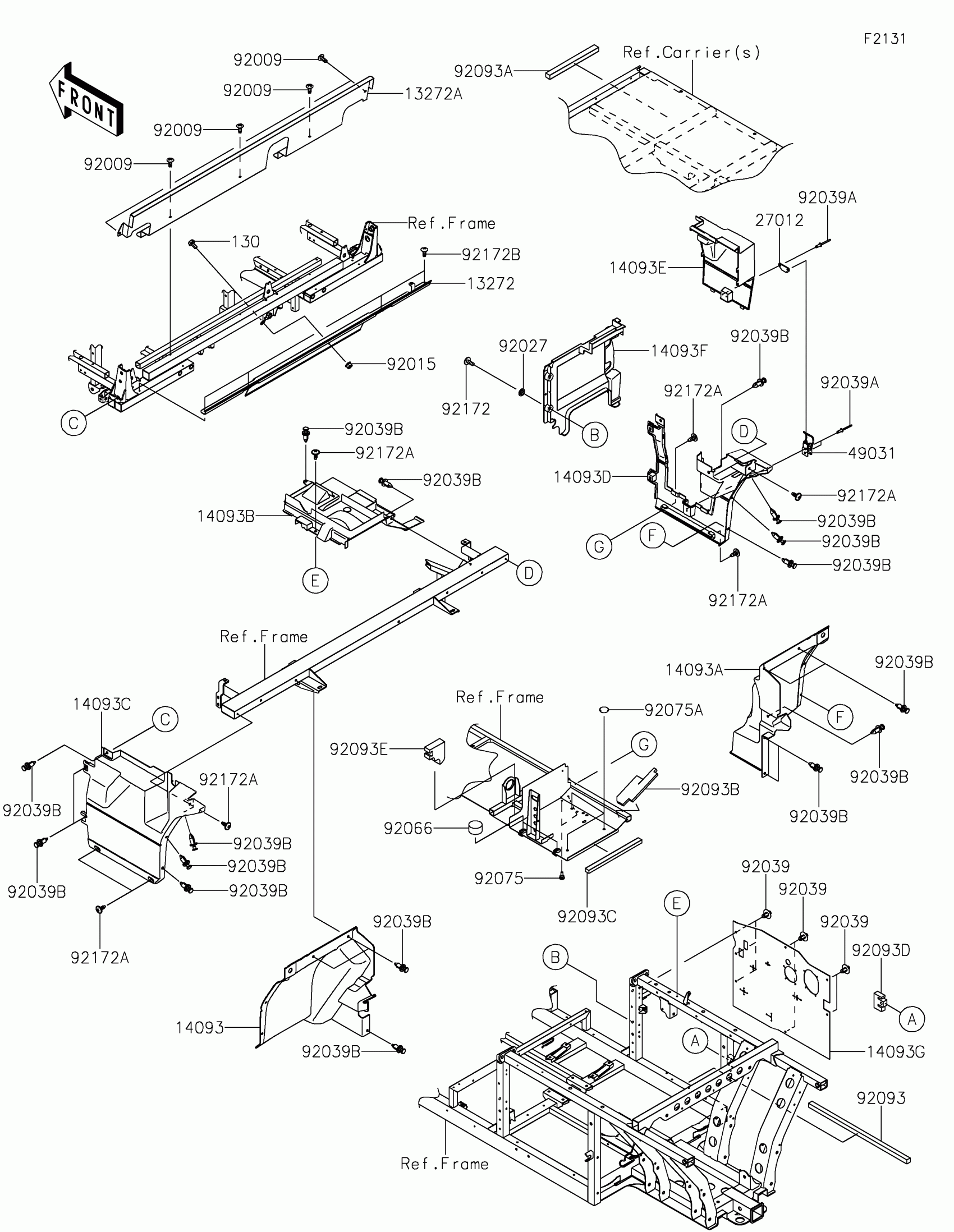

Kawasaki MULE PRO-FXR™ Frame Fittings(Rear) Diagram

BOLT-FLANGED,6X12

PLATE,SEAT BACK,LWR

PLATE,SEAT BACK,UPP

COVER,RR,FLOOR,MUD,LH

COVER,RR,FLOOR,MUD,RH

COVER,DUST

COVER,RR SIDE,LH

COVER,RR SIDE,RH

COVER,A/C,RH

COVER,FR ENG

COVER

HOOK,STRIKER

LATCH,TOGGLE

SCREW,TAPPING,6X16

NUT,LOCK,FLANGED,6MM

COLLAR,L=4.6

RIVET

RIVET

RIVET

PLUG,36X20

DAMPER,6X10X15

DAMPER,RUBBER

SEAL,DUST,20X20X565

SEAL,DUST,20X25X280

SEAL,DUST,69X207X10

SEAL,DUST,15X305X20

SEAL,52X72X20

SEAL,99X85X30

SCREW,6X16

SCREW,6X16

SCREW,TAPPING,6X16
