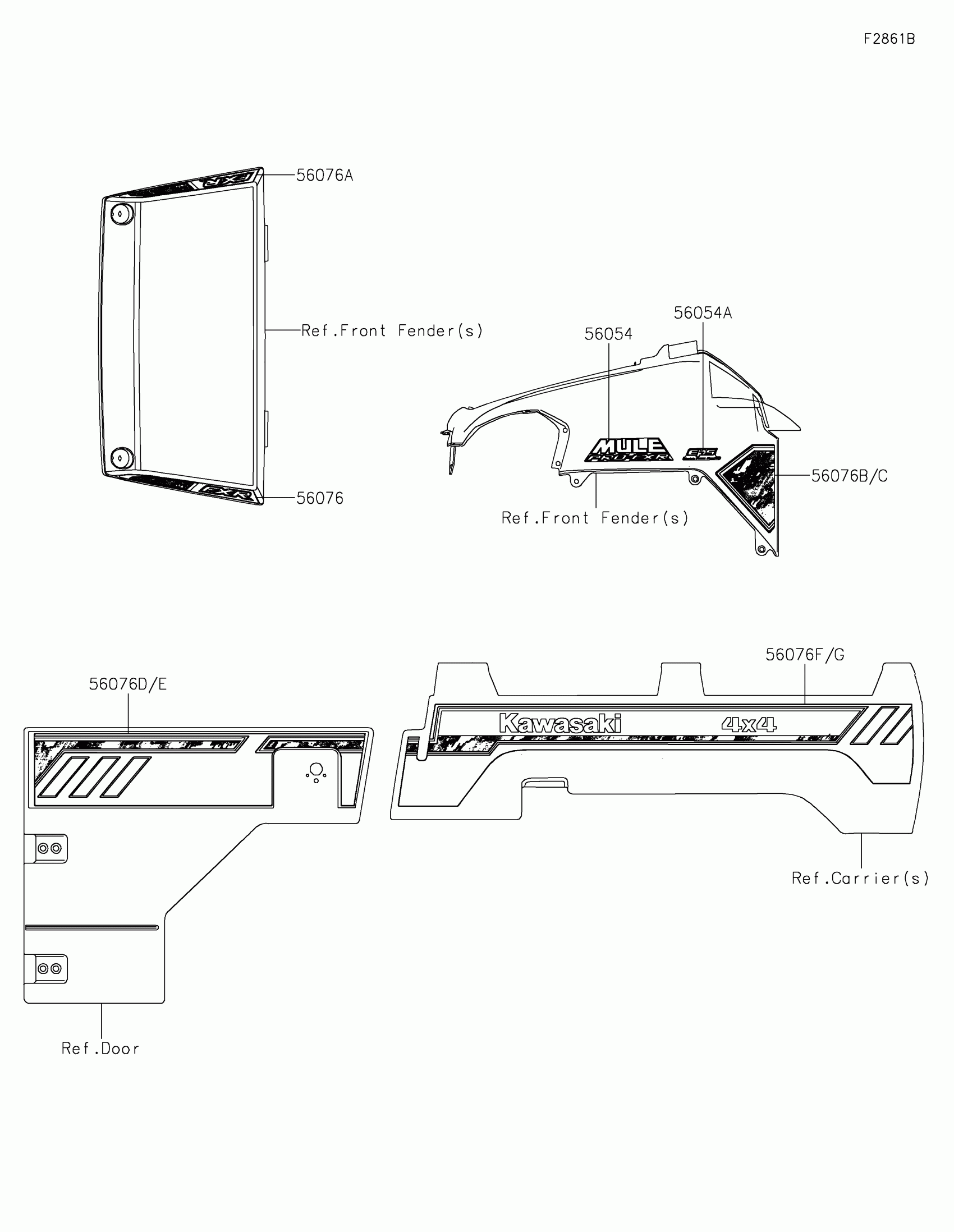

2023 Kawasaki Mule Pro-FXR™ Decals Diagram

← All diagrams

Find the part on the Decals diagram for your 2023 Kawasaki Mule Pro-FXR™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2023 Kawasaki Mule Pro-FXR™ Decals Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

56054

MARK,FR FENDER,MULE PRO-FXR

56054-2287

1
Out of stock

56054A

MARK,FR FENDER,EPS

56054-2778

1
Out of stock

56076

PATTERN,FR FENDER COVER,LH

56076-2293

1
Out of stock

56076A

PATTERN,FR FENDER COVER,RH

56076-2294

1
Out of stock

56076B

PATTERN,FR FENDER,LH

56076-2295

1
Out of stock

56076C

PATTERN,FR FENDER,RH

56076-2296

1
Out of stock

56076D

PATTERN,DOOR COVER,LH

56076-2297

1
Out of stock

56076E

PATTERN,DOOR COVER,RH

56076-2298

1
Out of stock

56076F

PATTERN,SIDE GUARD,LH

56076-2299

1
Out of stock

56076G

PATTERN,SIDE GUARD,RH

56076-2300

1
Out of stock
