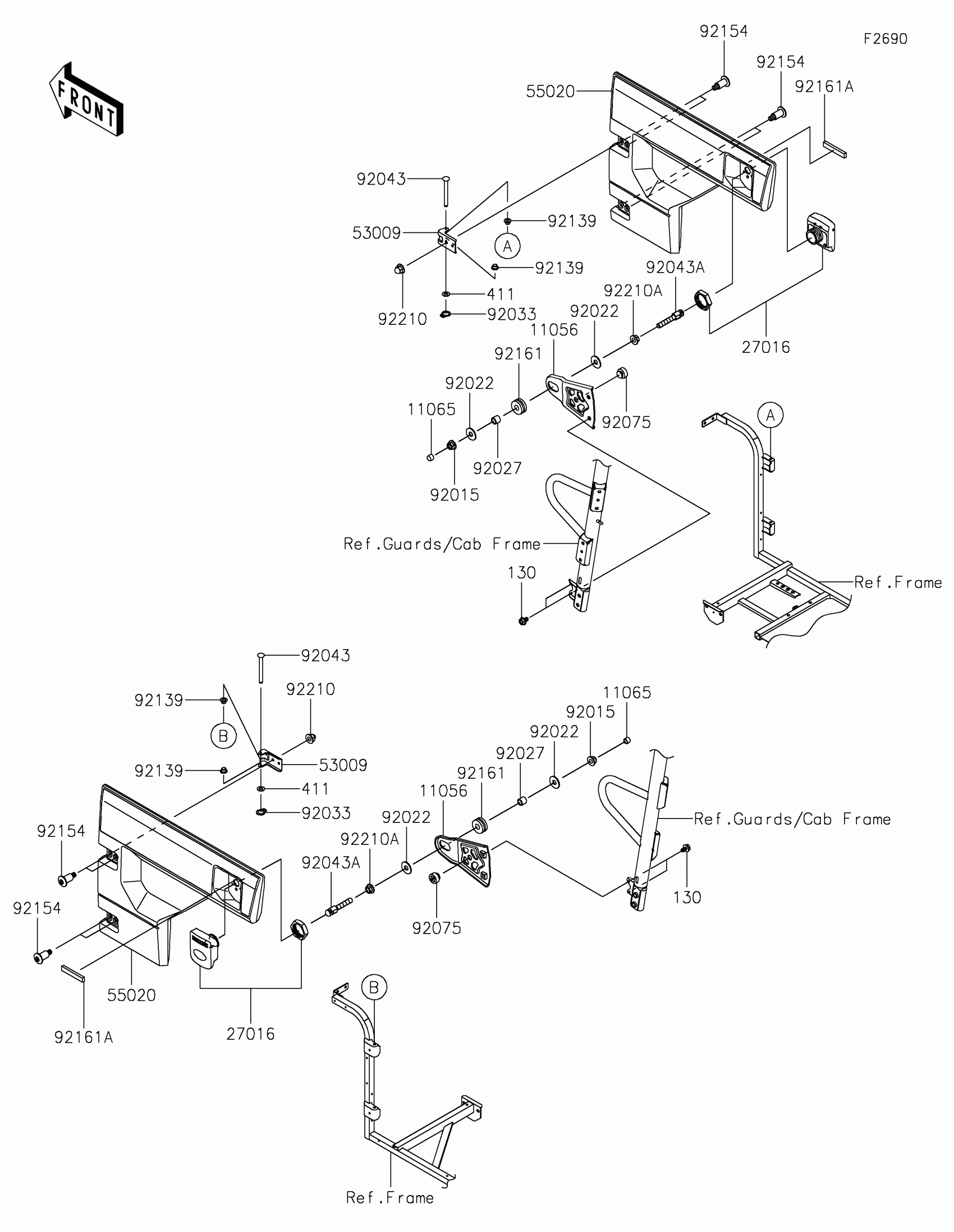

Kawasaki MULE PRO-FXR™ Door Diagram

Description

Price

11056

BRACKET,DOOR GUARD

11056-2856

$6.58

11065

CAP

11065-7504

$1.14

130

BOLT-FLANGED,6X10

130BA0610

$0.97

27016

LOCK-ASSY

27016-0084

$70.21

411

WASHER-PLAIN,6MM

411AB0600

$0.95

53009

HINGE

53009-0303

$4.77

55020

GUARD,FR,F.BLACK

55020-0936-6Z

$111.50

92015

NUT,8MM

92015-1432

$4.93

92022

WASHER,PLAIN

92022-3026

$2.74

92027

COLLAR

92027-102

$0.86

92033

RING-SNAP

92033-0719

$0.73

92043

PIN,6X56

92043-0743

$3.13

92043A

PIN,DOOR LOCK

92043-0788

$11.75

92075

DAMPER

92075-1598

$6.55

92139

BUSHING,6X8X6

92139-0709

$2.09

92154

BOLT,SOCKET,8X30

92154-1369

$2.95

92161

DAMPER,10X26X11.5

92161-1691

$0.86

92161A

DAMPER,9X52X5

92161-1837

$1.27

92210

NUT,CAP,8MM

92210-0488

$2.28

92210A

NUT,FLANGED,8MM

92210-0555

$1.47
