2020 Kawasaki Mule PRO-FXR™ Crankshaft/piston Diagram

← All diagrams

Find the part on the Crankshaft/piston diagram for your 2020 Kawasaki Mule PRO-FXR™, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

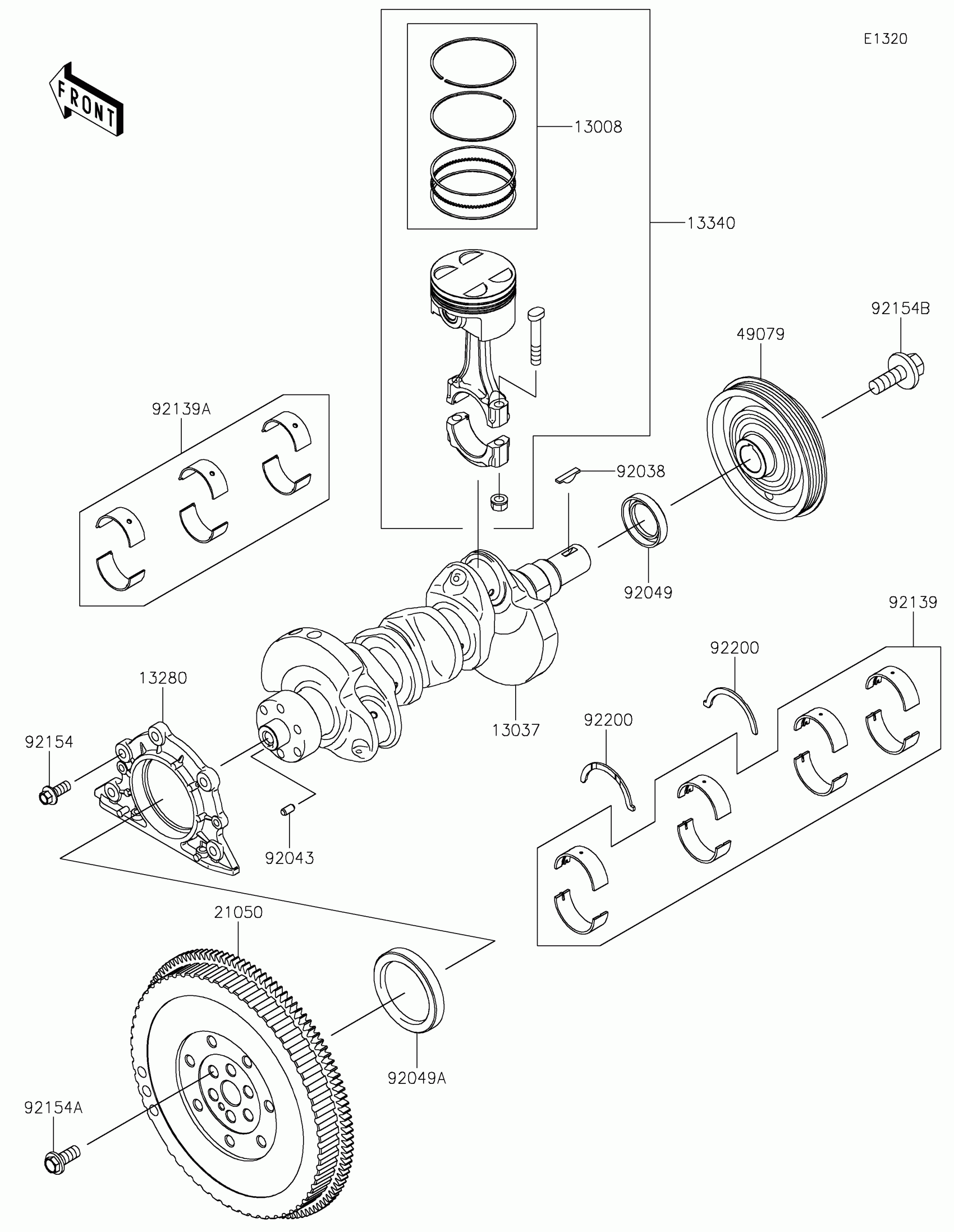

2020 Kawasaki Mule PRO-FXR™ Crankshaft/piston Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13008

RING-SET-PISTON

13008-0561

1

$43.86

In stock

13037

CRANKSHAFT

13037-0854

1

$254.06

In stock

13280

HOLDER

13280-0826

1

$26.14

In stock

13340

PISTON-ASSY-ENGINE

13340-0003

1
Out of stock

21050

FLYWHEEL

21050-0008

1

$139.36

In stock

49079

1

$124.32

In stock

92038

KEY

92038-0005

1

$3.49

In stock

92043

PIN

92043-0830

1

$0.86

In stock

92049

SEAL-OIL

92049-0774

1
Out of stock

92049A

SEAL-OIL

92049-0775

1
Out of stock

92139

BUSHING

92139-0833

1

$10.96

In stock

92139A

BUSHING

92139-0838

1

$14.40

In stock

92154

BOLT,FLANGED,8X20

92154-1586

1

$1.29

In stock

92154A

BOLT,FLYWHEEL

92154-1587

1

$2.19

In stock

92154B

1

$2.27

In stock

92200

WASHER

92200-1682

1
Out of stock
