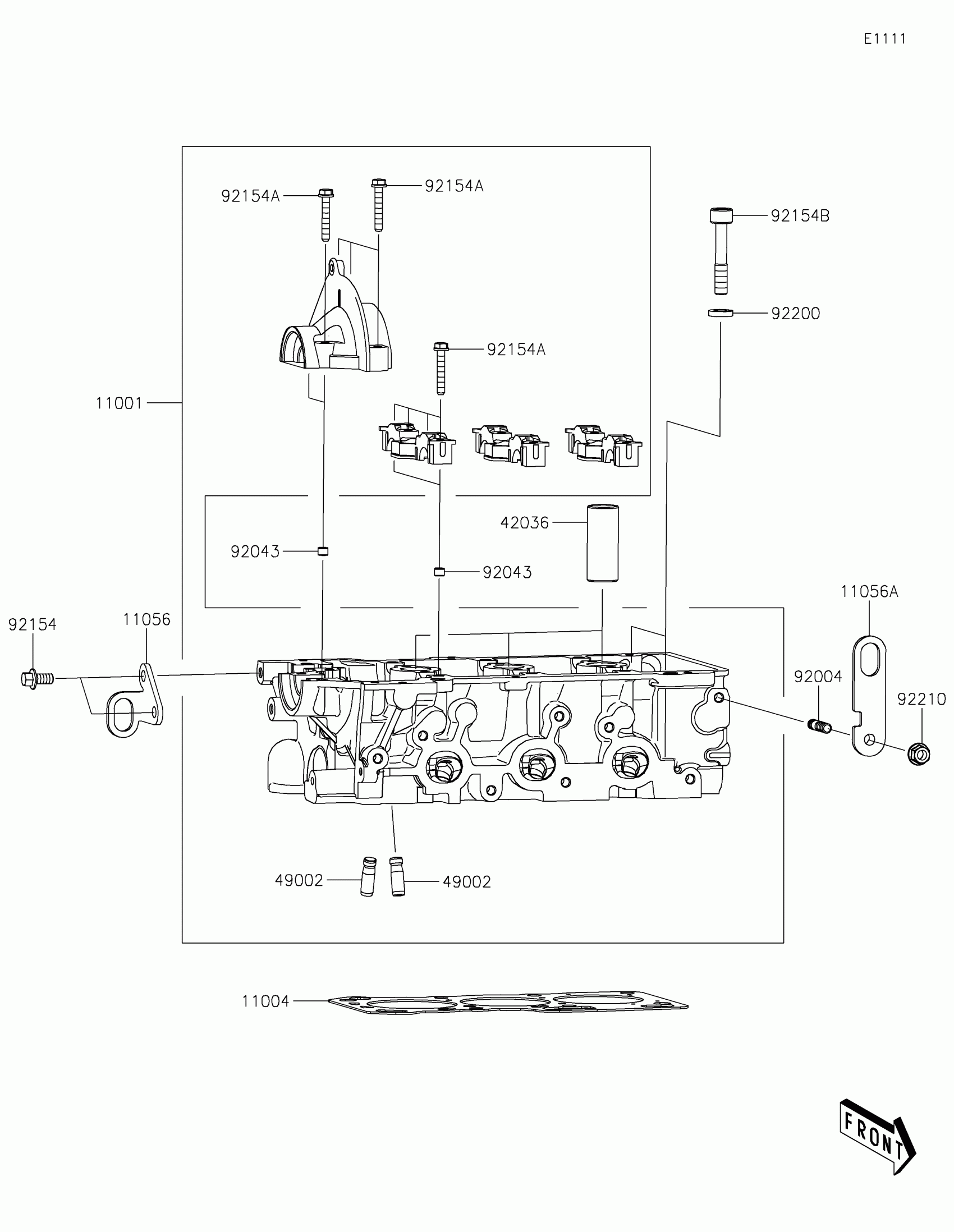

Kawasaki MULE PRO-FXR™ Cylinder Head Diagram

#

Description
Price

11001

HEAD-CYLINDER

11001-0839

$976.65

11004

GASKET-HEAD

11004-0747

$34.40

11056

BRACKET

11056-7081

$5.75

11056A

BRACKET

11056-7082

$5.61

42036

SLEEVE,SPARK PLUG

42036-0764

$13.66

49002

GUIDE-VALVE

49002-0030

$2.98

92004

STUD

92004-0734

$4.80

92043

PIN

92043-0831

$0.85

92154

BOLT,FLANGED,8X16

92154-1588

$1.02

92154A

BOLT,6X38

92154-1589

$1.20

92154B

BOLT,SOCKET

92154-1590

$2.85

92200

WASHER

92200-1683

$0.62

92210

NUT

92210-0944

$0.95
