Chassis Electrical Equipment

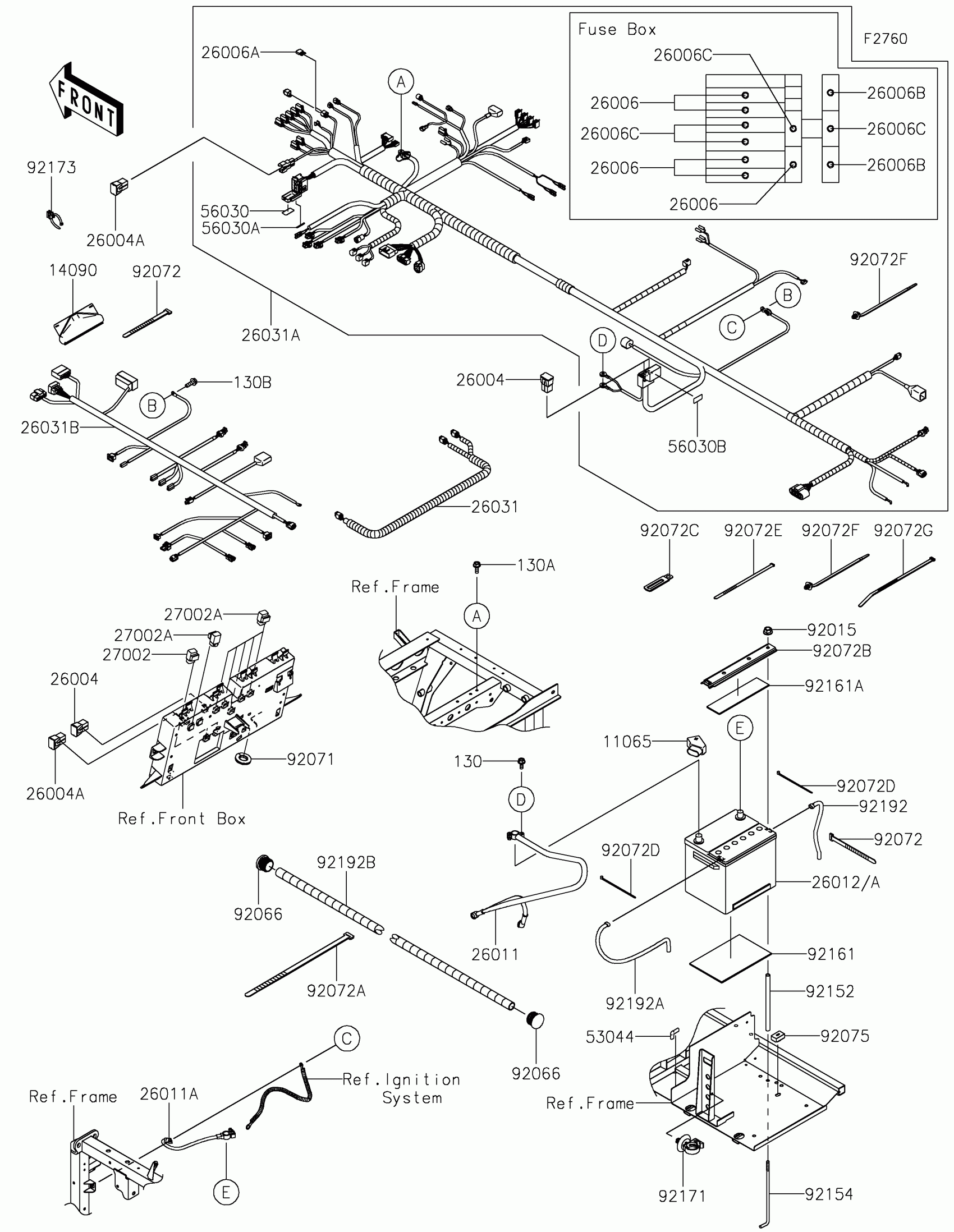

Kawasaki MULE PRO-FXR™ Chassis Electrical Equipment Diagram
#
11065
CAP
11065-0850
$4.60
14090
COVER,COUPLER
14090-1331
$8.51
26004
FUSE-ASSY,60A
26004-0024
$4.82
26004A
FUSE-ASSY,40A
26004-1093
$4.11
26006
FUSE,MINI BLADE,10A,RED
26006-0009
Unavailable
26006A
FUSE,MINI BLADE,2A,GRAY
26006-0052
$6.57
26006B
FUSE,MINI BLADE,30A,GREEN
26006-1080
$4.87
26006C
FUSE,MINI BLADE,20A,YELLOW
26006-3704
$5.24
26011
WIRE-LEAD,BATTERY(+)
26011-0851
$110.95
26011A
WIRE-LEAD,BATTERY(-)
26011-0912
$44.80
26031
HARNESS,SUB
26031-2226
$84.03
26031A
HARNESS,MAIN
26031-2237
$731.70
26031B
HARNESS
26031-2248
$400.16
27002
RELAY-ASSY
27002-0022
$46.52
27002A
RELAY-ASSY
27002-1062
$45.39
53044
TRIM
53044-0580
$5.13
56030
LABEL,FUSE BOX1
56030-0850
$2.94
56030A
LABEL,FUSE BOX2
56030-0854
$2.94
56030B
LABEL,FUSE CASE
56030-0891
$2.94
92015
NUT,FLANGED,8MM
92015-1406
$4.45
92066
PLUG
92066-0908
$0.98
92071
GROMMET,22X45X9
92071-0729
$2.15
92072
BAND,L=123
92072-030
$5.00
92072A
BAND,L=218
92072-032
$5.00
92072B
BAND
92072-0767
$9.90
92072C
BAND
92072-0770
$2.75
92072D
BAND,92X2.4
92072-0791
$0.42
92072E
BAND,L=188
92072-1239
$1.73
92072F
BAND,OS170-FT7(BLACK)
92072-1414
$3.74
92075
DAMPER
92075-099
$5.52
92152
COLLAR,9.4X12.7X190.8
92152-1852
$8.18
92154
BOLT,BATTERY
92154-1650
$11.00
92161
DAMPER
92161-0578
$4.25
92161A
DAMPER
92161-1753
$7.61
92171
CLAMP
92171-0453
$3.54
92173
CLAMP,W/EDGE CLIP,DIA.6-45
92173-1827
$2.34
92192
TUBE,BREATHER,7X10X240
92192-1646
$3.90
92192A
TUBE,BREATHER,7X10X450
92192-1694
$8.13
92192B
TUBE,CONVOLUTED,19.5X23.8X1980
92192-1816
$29.07
130
BOLT-FLANGED,6X14
130BA0614
$1.20
130A
BOLT-FLANGED,6X16
130BA0616
$1.20
130B
BOLT-FLANGED,6X18
130BA0618
$1.54
