2026 Kawasaki Mule PRO-FXR™ 1000 Steering Wheel Diagram

← All diagrams

Find the part on the Steering Wheel diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

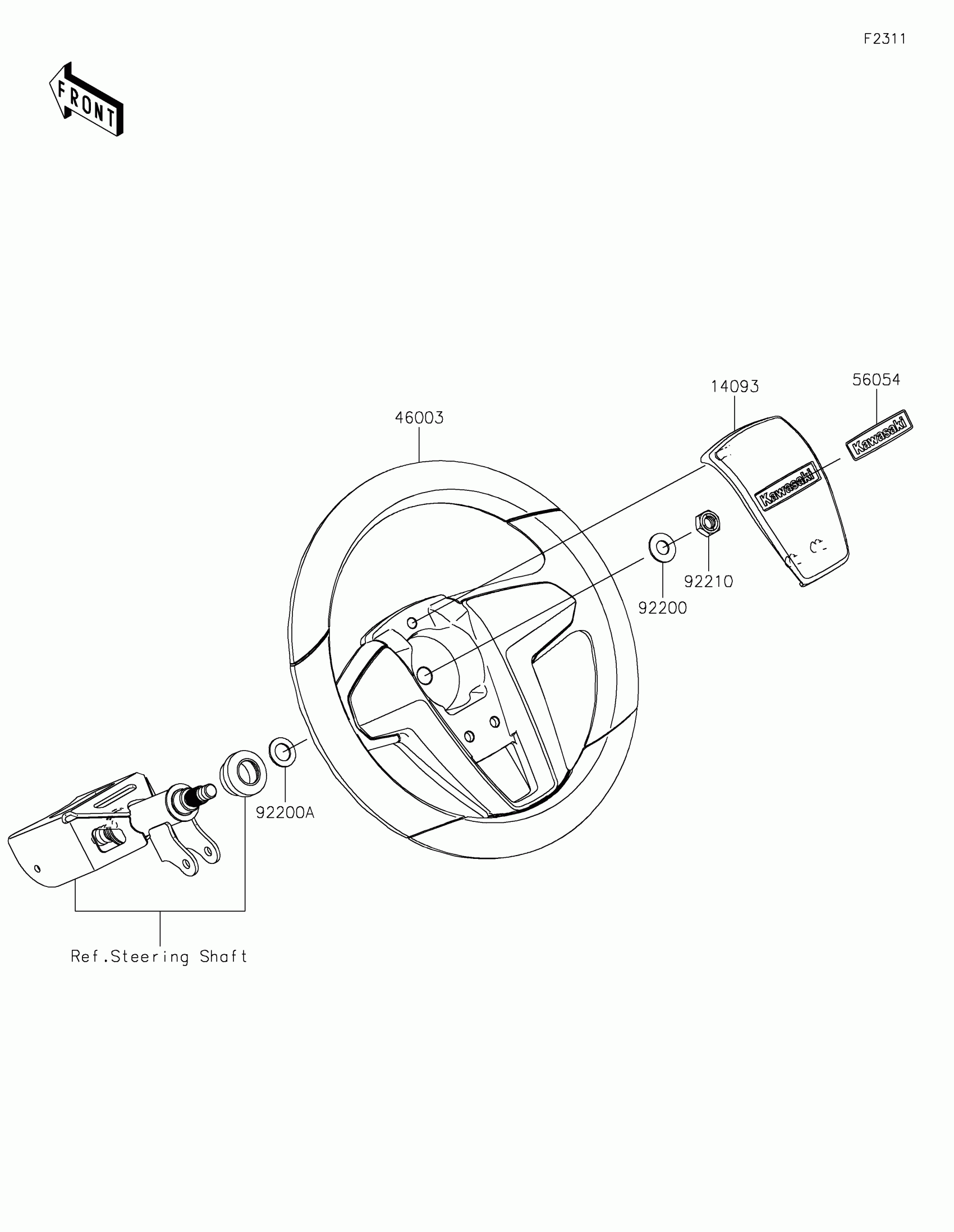

2026 Kawasaki Mule PRO-FXR™ 1000 Steering Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

14093

COVER,HORN SWITCH

14093-1144

1
Out of stock

46003

HANDLE

46003-0808

1
Out of stock

56054

MARK,CENTER LOGO,KAWASAKI

56054-2907

1
Out of stock

92200

WASHER,12.1X25X1.6

92200-0455

1
Out of stock

92200A

WASHER,15X25X1.6

92200-0460

1
Out of stock

92210

NUT,LOCK,12MM

92210-1249

1
Out of stock
← Steering Shaft Wheels/tires →
