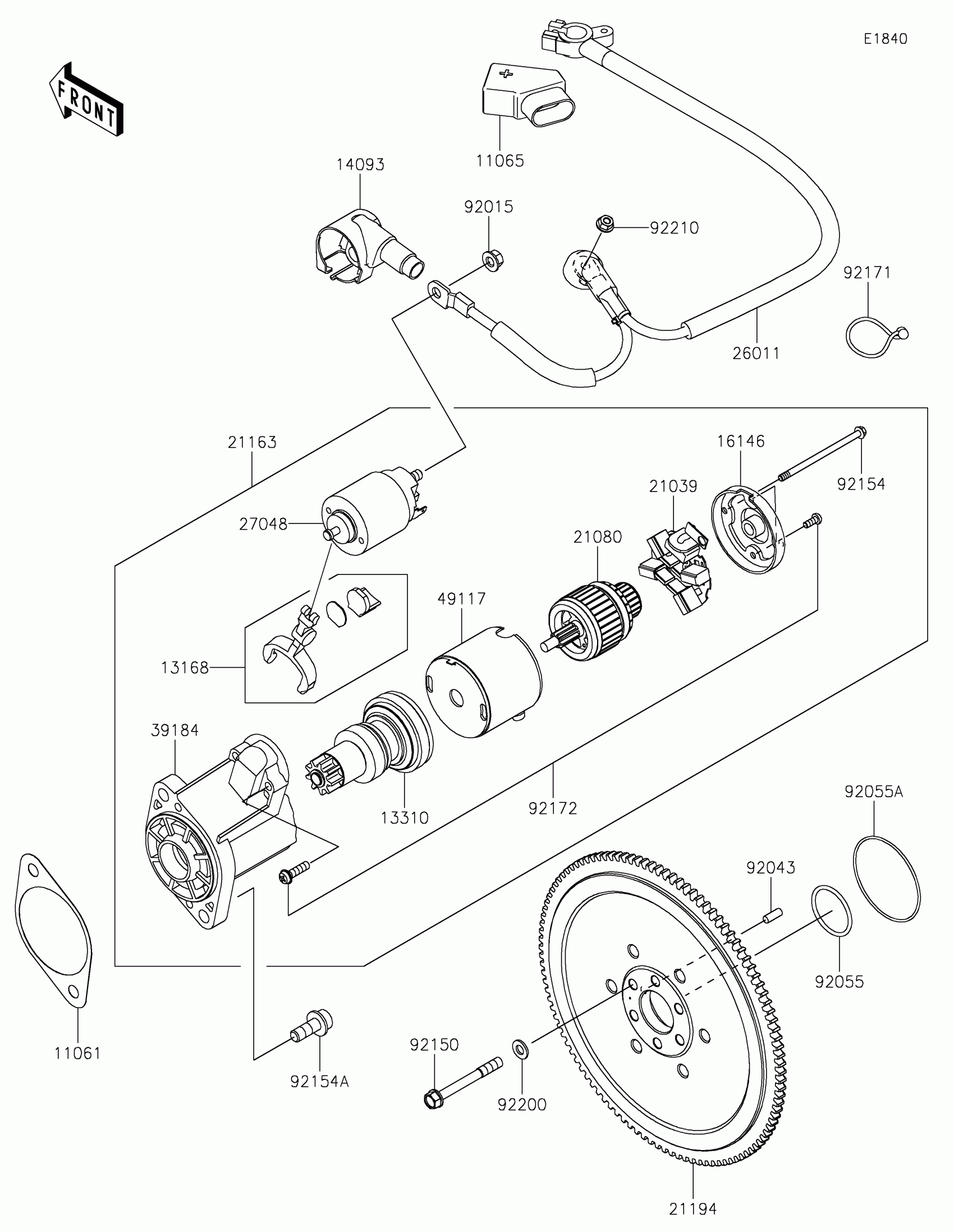

Find the part on the Starter Motor diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule PRO-FXR™ 1000 Starter Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11061

GASKET,STARTER

11061-1463

1
Out of stock

11065

CAP

11065-0850

1
Out of stock

13168

LEVER

13168-0935

1
Out of stock

13310

SHAFT-ASSY

13310-0577

1
Out of stock

14093

COVER,STARTER LEAD WIRE

14093-1523

1
Out of stock

16146

COVER-ASSY

16146-0733

1
Out of stock

21039

BRUSH

21039-0015

1
Out of stock

21080

ARMATURE

21080-0015

1
Out of stock

21163

STARTER-ELECTRIC

21163-0805

1
Out of stock

21194

FLYWHEEL-COMP

21194-0725

1
Out of stock

26011

WIRE-LEAD,BATTERY-GENERATOR

26011-2461

1
Out of stock

27048

SWITCH-ASSY

27048-0059

1
Out of stock

39184

BRACKET-ASSY

39184-0747

1
Out of stock

49117

YOKE

49117-0610

1
Out of stock

92015

NUT,8MM

92015-1402

1
Out of stock

92043

PIN,6X16

92043-1690

1
Out of stock

92055

RING-O,36MM

92055-1005

1
Out of stock

92055A

RING-O,70.2X74.0X1.90

92055-1672

1
Out of stock

92150

BOLT,8X70

92150-1483

1
Out of stock

92154

BOLT,STARTER

92154-7040

1
Out of stock

92154A

BOLT,SOCKET,10X25

92154-7070

1
Out of stock

92171

CLAMP

92171-1185

1
Out of stock

92172

SCREW

92172-0770

1
Out of stock

92200

WASHER,8.2X16X1.6

92200-0047

1
Out of stock

92210

NUT,6MM

92210-0188

1
Out of stock
