2026 Kawasaki Mule Pro-FXR™ 1000 Chassis Electrical Equipment Diagram

← All diagrams

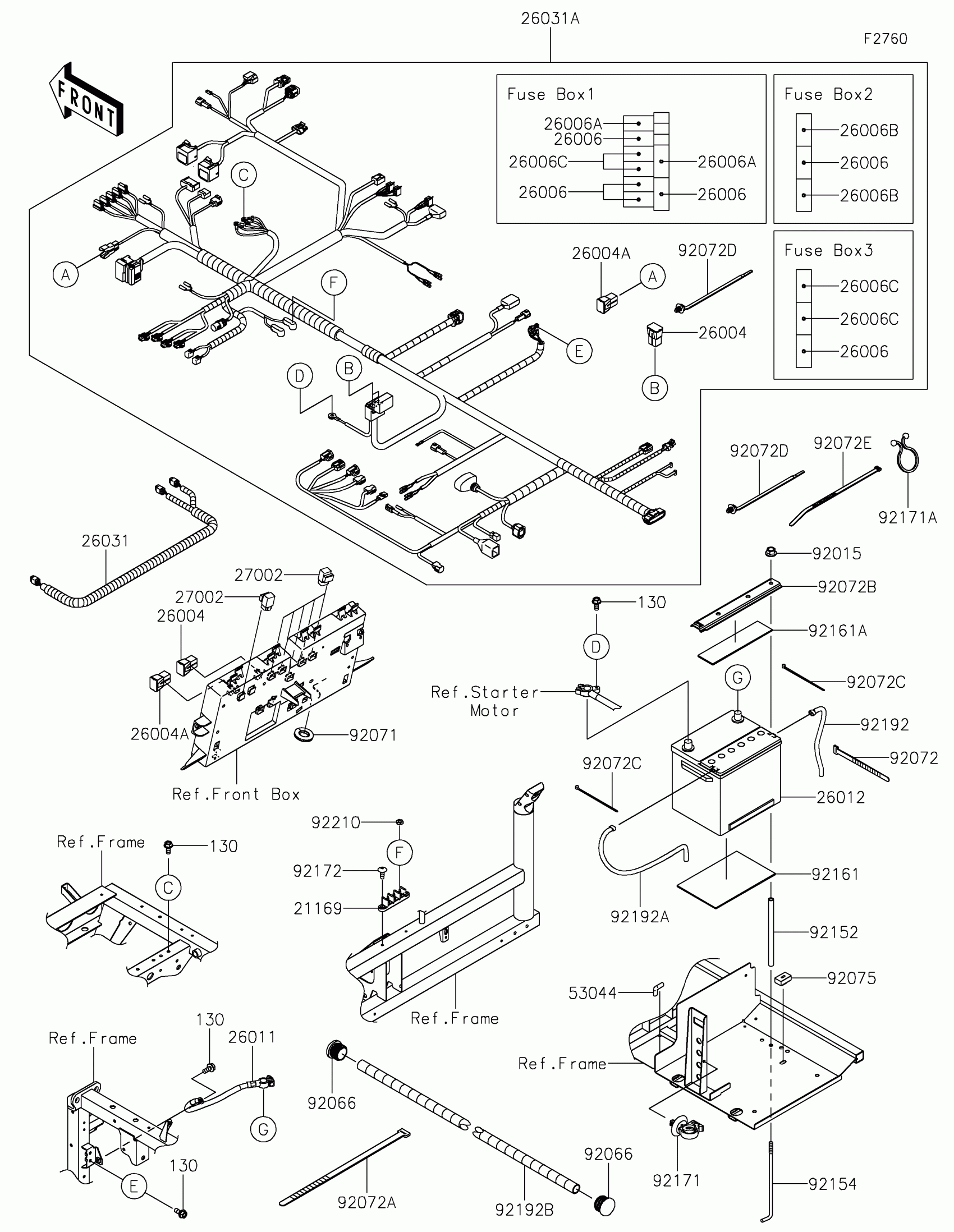

Find the part on the Chassis Electrical Equipment diagram for your 2026 Kawasaki Mule Pro-FXR™ 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule Pro-FXR™ 1000 Chassis Electrical Equipment Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

21169

TERMINAL

21169-0571

1
Out of stock

26004

FUSE-ASSY,60A

26004-0024

1
Out of stock

26004A

FUSE-ASSY,40A

26004-0035

1
Out of stock

26006

FUSE,MINI BLADE,10A,RED

26006-0009

1
Out of stock

26006A

FUSE,MINI BLADE,25A,NATURAL

26006-0020

1
Out of stock

26006B

FUSE,MINI BLADE,30A,GREEN

26006-1080

1
Out of stock

26006C

FUSE,MINI BLADE,20A,YELLOW

26006-3704

1
Out of stock

26011

WIRE-LEAD,BATTERY(-)

26011-0912

1
Out of stock

26012

BATTERY,12V 32AH

26012-0619

1
Out of stock

26031

HARNESS,SUB

26031-2226

1
Out of stock

26031A

HARNESS,MAIN

26031-7069

1
Out of stock

27002

RELAY-ASSY

27002-1062

1
Out of stock

53044

TRIM

53044-0580

1
Out of stock

92015

NUT,FLANGED,8MM

92015-1406

1
Out of stock

92066

PLUG

92066-0908

1
Out of stock

92071

GROMMET,22X45X9

92071-0729

1
Out of stock

92072

BAND,L=123

92072-030

1
Out of stock

92072A

BAND,L=218

92072-032

1
Out of stock

92072B

BAND

92072-0767

1
Out of stock

92072C

BAND,92X2.4

92072-0791

1
Out of stock

92072D

BAND,OS170-FT7(BLACK)

92072-1414

—
Out of stock

92072E

BAND,L=292.1

92072-3509

1
Out of stock

92075

DAMPER

92075-099

1
Out of stock

92152

COLLAR,9.4X12.7X190.8

92152-1852

1
Out of stock

92154

BOLT,BATTERY

92154-1650

1
Out of stock

92161

DAMPER

92161-0578

1
Out of stock

92161A

DAMPER

92161-1753

1
Out of stock

92171

CLAMP

92171-0453

1
Out of stock

92171A

CLAMP

92171-1185

1
Out of stock

92172

SCREW,TAPPING,6X16

92172-0739

1
Out of stock

92192

TUBE,BREATHER,7X10X240

92192-1646

1
Out of stock

92192A

TUBE,BREATHER,7X10X450

92192-1694

1
Out of stock

92192B

TUBE,CONVOLUTED,19.5X23.8X1980

92192-1816

1
Out of stock

92210

NUT

92210-1680

1
Out of stock

130

BOLT-FLANGED,6X14

130BA0614

1
Out of stock

92072E

BAND,L=292.1

92072-3509

1
Out of stock
