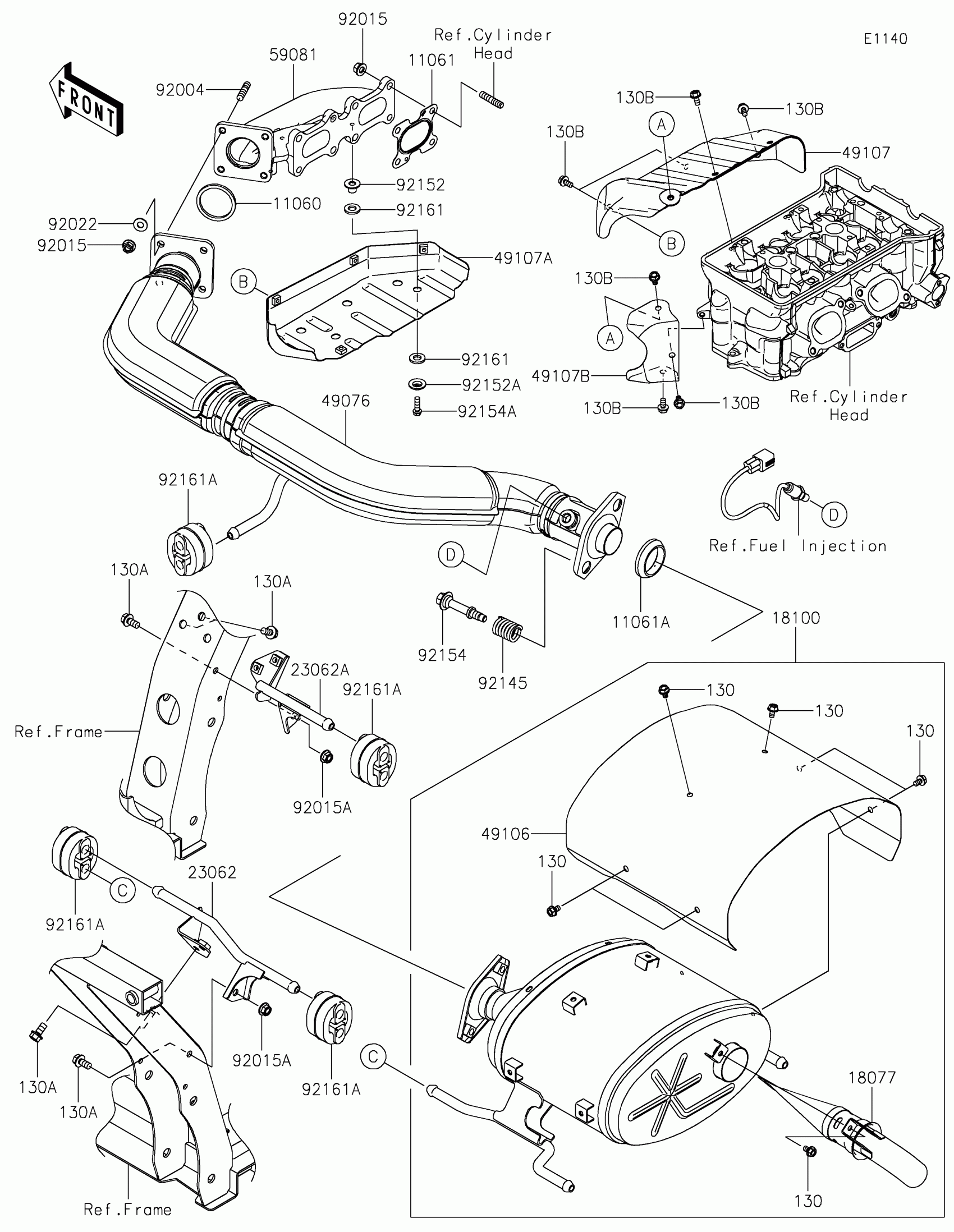

Find the part on the Muffler diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule PRO-FXR™ 1000 Muffler Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

11060

GASKET,EXHAUST PIPE

11060-1680

1
Out of stock

11061

GASKET,CYL.HEAD-EXHAUST PIPE

11061-1310

1
Out of stock

11061A

GASKET,MUFFLER

11061-1445

1
Out of stock

18077

ARRESTER-SPARK

18077-0714

1
Out of stock

18100

BODY-ASSY-MUFFLER

18100-0619

1
Out of stock

23062

BRACKET-COMP,LEFT

23062-1410

1
Out of stock

23062A

BRACKET-COMP,RIGHT

23062-1411

1
Out of stock

49076

PIPE-ASSY-EXHAUST

49076-0002

1
Out of stock

49106

COVER-MUFFLER

49106-0878

1
Out of stock

49107

COVER-EXHAUST PIPE,UPPER

49107-0852

1
Out of stock

49107A

COVER-EXHAUST PIPE,LOWER

49107-0853

1
Out of stock

49107B

COVER-EXHAUST PIPE,SIDE

49107-0854

1
Out of stock

59081

MANIFOLD-EXHAUST

59081-0471

1
Out of stock

92004

STUD,8X25

92004-1214

1
Out of stock

92015

NUT,8MM

92015-1402

1
Out of stock

92015A

NUT,8MM

92015-1432

1
Out of stock

92022

WASHER,8.2X18X1.5

92022-1964

1
Out of stock

92145

SPRING

92145-2262

1
Out of stock

92152

COLLAR,6.8X10X11.6

92152-1699

1
Out of stock

92152A

COLLAR

92152-3797

1
Out of stock

92154

BOLT,MUFFLER

92154-4485

1
Out of stock

92154A

BOLT-FLANGED-SMALL,6X20

92154-7254

1
Out of stock

92161

DAMPER

92161-0319

1
Out of stock

92161A

DAMPER

92161-2466

1
Out of stock

130

BOLT-FLANGED,6X10

130BD0610

1

$3.24

In stock

130A

BOLT-FLANGED,8X16

130CA0816

1

$2.05

In stock

130B

BOLT-FLANGED,6X12

130CD0612

1

$1.53

In stock
