2026 Kawasaki Mule PRO-FXR™ 1000 Crankshaft Diagram

← All diagrams

Find the part on the Crankshaft diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

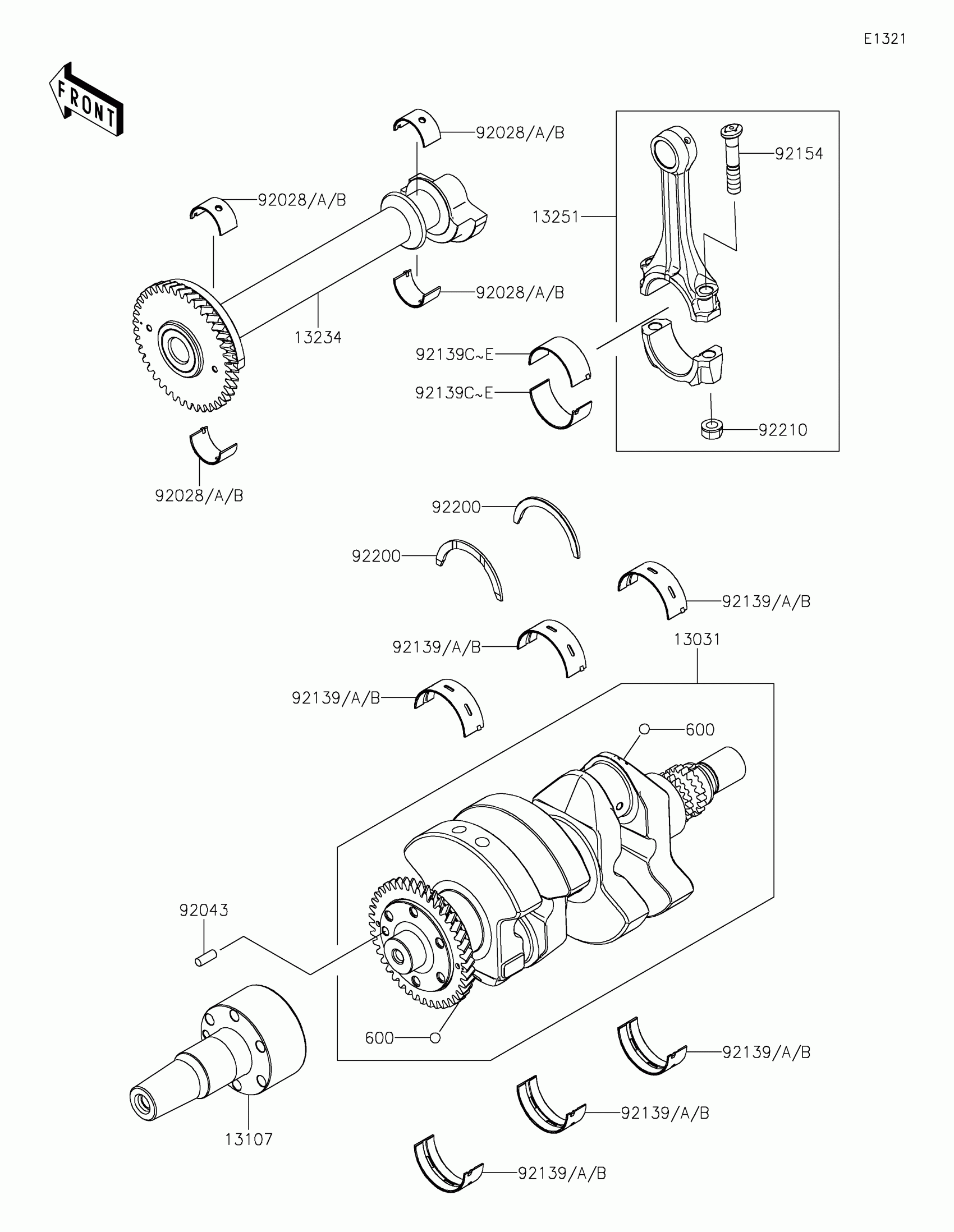

2026 Kawasaki Mule PRO-FXR™ 1000 Crankshaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13031

CRANKSHAFT-COMP

13031-1531

1
Out of stock

13107

SHAFT,CONVERTER-DRIVE

13107-0982

1
Out of stock

13234

SHAFT-COMP,BALANCER

13234-0633

1
Out of stock

13251

ROD-ASSY-CONNECTING,J

13251-0749-JJ

1
Out of stock

92028

BUSHING,BALANCER SHAFT,BLUE

92028-1909

1
Out of stock

92028A

BUSHING,BALANCER SHAFT,BLACK

92028-1910

—
Out of stock

92028B

BUSHING,BALANCER SHAFT,BROWN

92028-1911

—
Out of stock

92043

PIN,6X16

92043-1690

1
Out of stock

92139

BUSHING,CRANKSHAFT,BLUE

92139-0925

1
Out of stock

92139A

BUSHING,CRANKSHAFT,BLACK

92139-0926

—
Out of stock

92139B

BUSHING,CRANKSHAFT,BROWN

92139-0927

—
Out of stock

92139C

BUSHING,CONNECTING ROD,BLUE

92139-1197

1
Out of stock

92139D

BUSHING,CONNECTING ROD,BLACK

92139-1198

—
Out of stock

92139E

BUSHING,CONNECTING ROD,BROWN

92139-1199

—
Out of stock

92154

BOLT,CONNECTING ROD

92154-3911

1
Out of stock

92200

WASHER,THRUST,T=2.5

92200-2242

1
Out of stock

92210

NUT,FLANGED,9MM

92210-1673

1
Out of stock

600

BALL-STEEL,11/32"

600A1100

1
Out of stock
