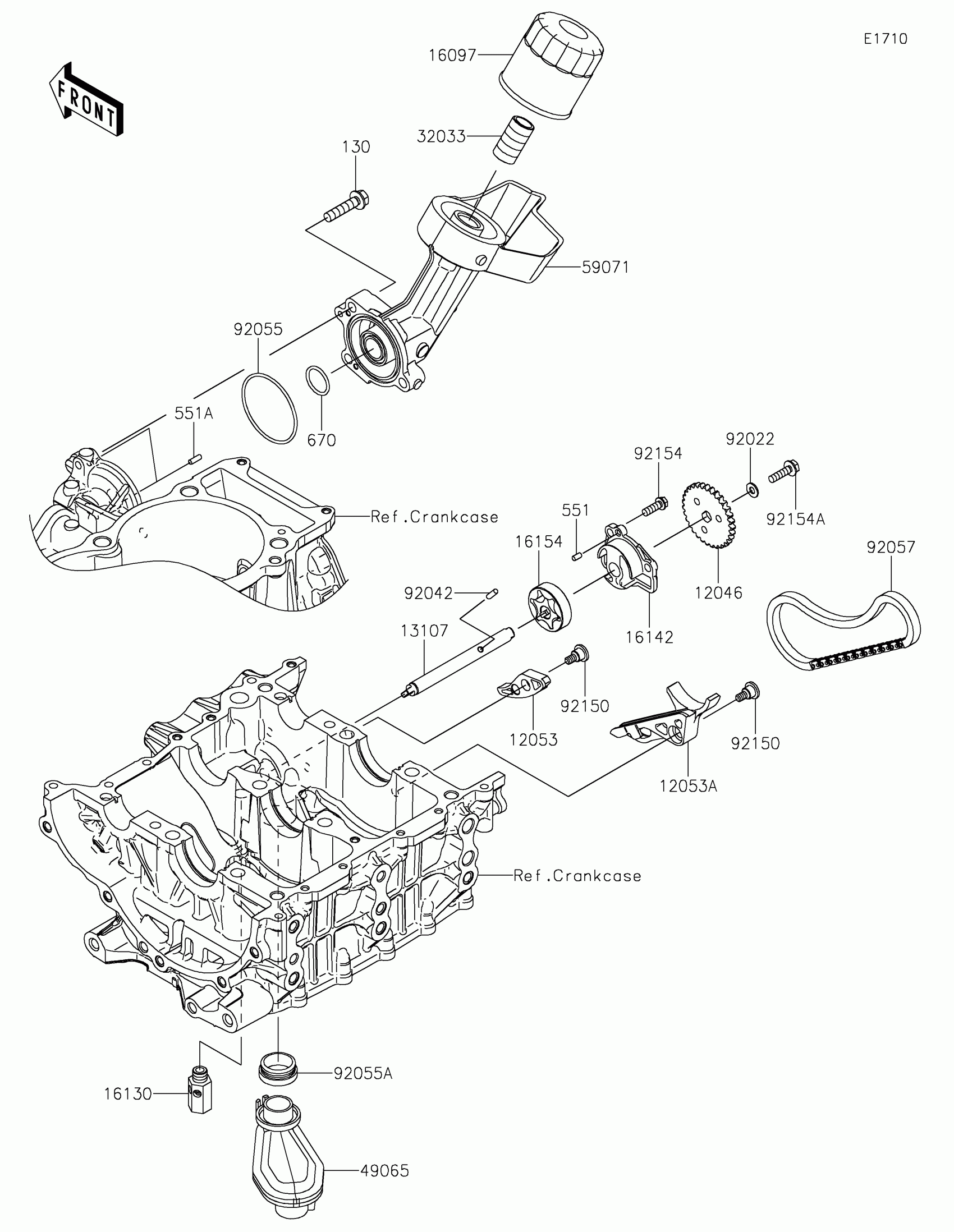

Kawasaki MULE PRO-FXR™ 1000 LE Oil Pump/Oil Filter Diagram

Description

Price

12046

SPROCKET,OIL PUMP,31T

12046-0614

$15.16

12053

GUIDE-CHAIN,UPP

12053-0374

$16.57

12053A

GUIDE-CHAIN,LWR

12053-0375

$18.77

13107

SHAFT,OIL PUMP

13107-0896

$28.04

16097

FILTER-ASSY-OIL

16097-0007

$15.48

16130

VALVE-ASSY-RELIEF

16130-1058

$41.98

16142

COVER-PUMP

16142-0774

$70.68

16154

ROTOR-PUMP

16154-0779

$45.49

32033

PIPE,OIL FILTER

32033-1535

$12.96

49065

FILTER-OIL

49065-0729

$26.47

59071

JOINT,OIL FILTER

59071-0800

$183.00

92022

WASHER,6X12.8X1.2

92022-1827

$4.69

92042

PIN,DOWEL,4X13.8

92042-030

$3.92

92055

RING-O,59.5X2.4

92055-0753

$4.10

92055A

RING-O,OIL FILTER

92055-1503

$9.51

92057

CHAIN,98XRH2010-70M

92057-0765

$38.72

92150

BOLT,6MM

92150-1090

$7.45

92154

BOLT,FLANGED,6X18

92154-0499

$1.63

92154A

BOLT,FLANGED,6X22

92154-1525

$1.71

130

BOLT-FLANGED,8X35

130BA0835

$1.46

551

PIN-DOWEL,4X8

551A0408

$0.78

551A

PIN-DOWEL

551A0412

$1.59

670

O RING,22MM

670D2022

$9.59
