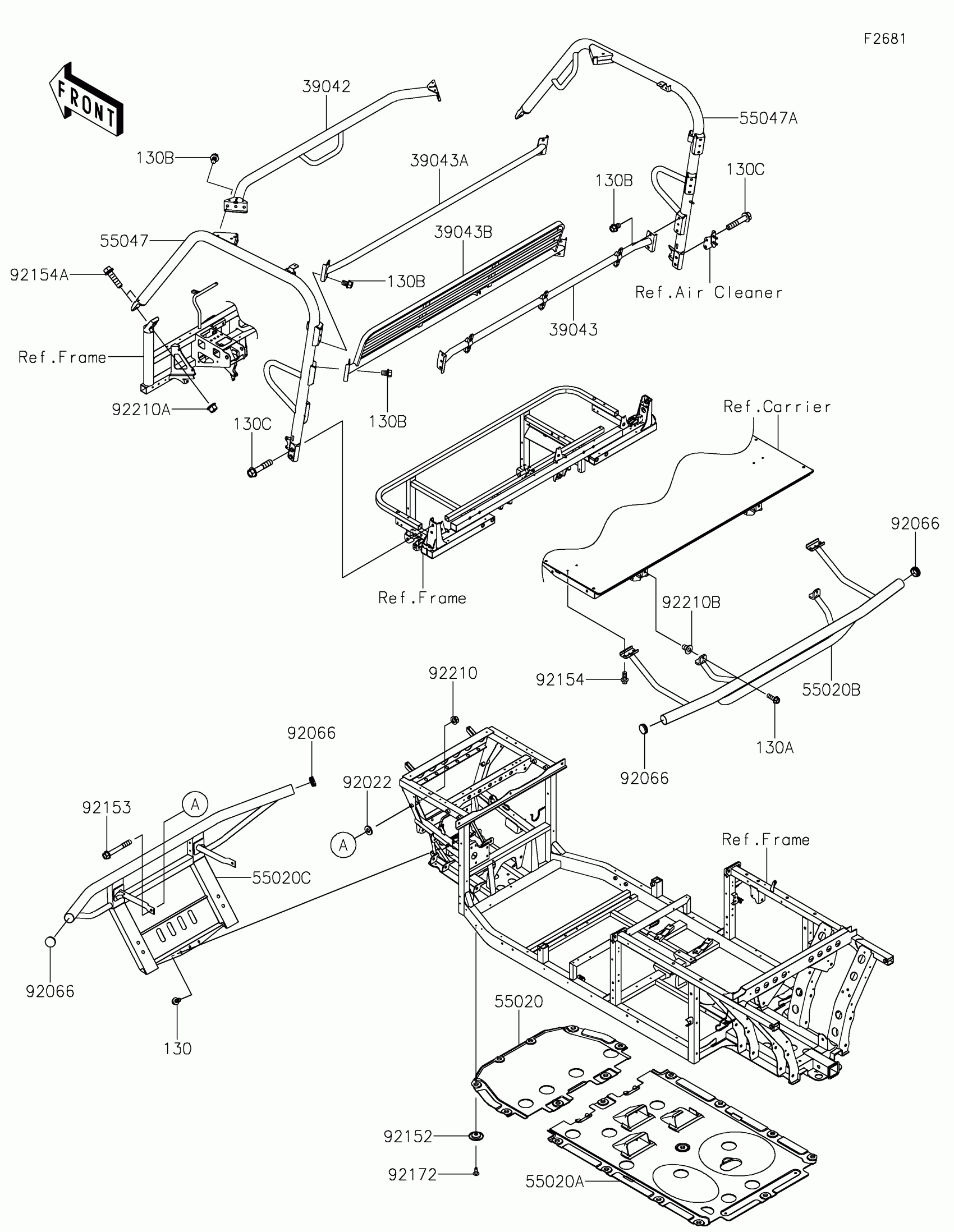

Kawasaki MULE PRO-FXR™ 1000 LE Guards/Cab Frame Diagram

Description

Price

39042

CROSSMEMBER,FR,T.BLACK

39042-0016-388

$114.69

39043

CROSSMEMBER-COMP,B-P.,LWR,BLK

39043-0017-388

$111.20

39043A

CROSSMEMBER-COMP,B-P,TOP,T.BLK

39043-0027-388

$112.23

39043B

CROSSMEMBER-COMP,B-P,UPP,T.BLK

39043-0028-388

$230.59

55020

GUARD,SKID PLATE,FR

55020-2000

$80.21

55020A

GUARD,SKID PLATE,RR

55020-2157

$106.47

55020B

GUARD,RR,T.BLACK

55020-2413-388

$58.25

55020C

GUARD,FR,T.BLACK

55020-2424-388

$87.18

55047

BAR-COMP,LH,T.BLACK

55047-0374-388

$225.56

55047A

BAR-COMP,RH,T.BLACK

55047-0375-388

$225.56

92022

WASHER,10X22X3

92022-1365

$5.52

92066

PLUG

92066-0769

$2.94

92152

COLLAR

92152-0784

$2.12

92153

BOLT,FLANGED,10X75

92153-1384

$7.75

92154

BOLT,FLANGED,8X20

92154-1226

$1.02

92154A

BOLT,FLANGED,12X45

92154-1420

$3.56

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92210

NUT,LOCK,FLANGED,10MM

92210-0276

$2.61

92210A

NUT,12MM

92210-0603

$8.98

92210B

NUT

92210-1545

$3.57

130

BOLT-FLANGED,8X16

130BA0816

$1.12

130A

BOLT-FLANGED,8X25

130BA0825

$2.95

130B

BOLT-FLANGED,10X14

130CA1014

$3.35

130C

BOLT-FLANGED,12X60

130CA1260

$4.60
