2026 Kawasaki Mule Pro-FXR™ 1000 Le Guard Diagram

← All diagrams

Find the part on the Guard diagram for your 2026 Kawasaki Mule Pro-FXR™ 1000 Le, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

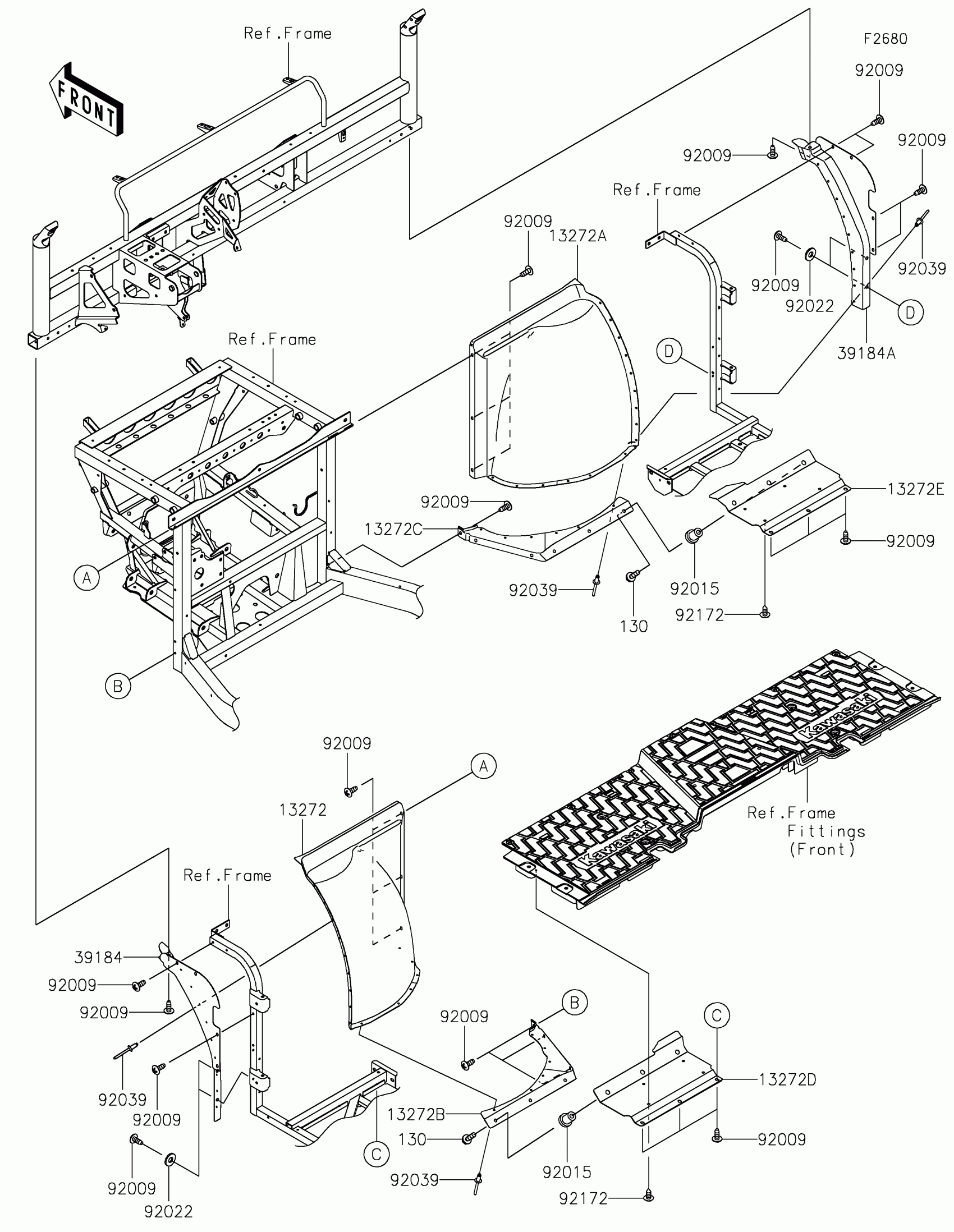

2026 Kawasaki Mule Pro-FXR™ 1000 Le Guard Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2323

1

$203.14

In stock

13272A

PLATE

13272-2324

1

$203.14

In stock

13272B

PLATE

13272-2327

1

$25.53

In stock

13272C

PLATE

13272-2328

1

$25.53

In stock

13272D

1

$52.64

In stock

13272E

1

$52.75

In stock

39184

1

$46.87

In stock

39184A

1

$46.87

In stock

92009

SCREW,TAPPING,6X16

92009-1166

1
Out of stock

92015

NUT,RUBBER,6MM

92015-1692

1

$5.84

In stock

92022

WASHER,8.2X19X2

92022-1533

1

$4.85

In stock

92039

RIVET,4.8X7.6

92039-0784

1

$2.05

In stock

92172

SCREW,6X16

92172-0284

1

$0.94

In stock

130

BOLT-FLANGED,6X20

130BA0620

1

$1.49

In stock
← Front Fender Guards/cab Frame →

More Body & Frame diagrams
