2026 Kawasaki Mule PRO-FXR™ 1000 LE Fuel Pump Diagram

← All diagrams

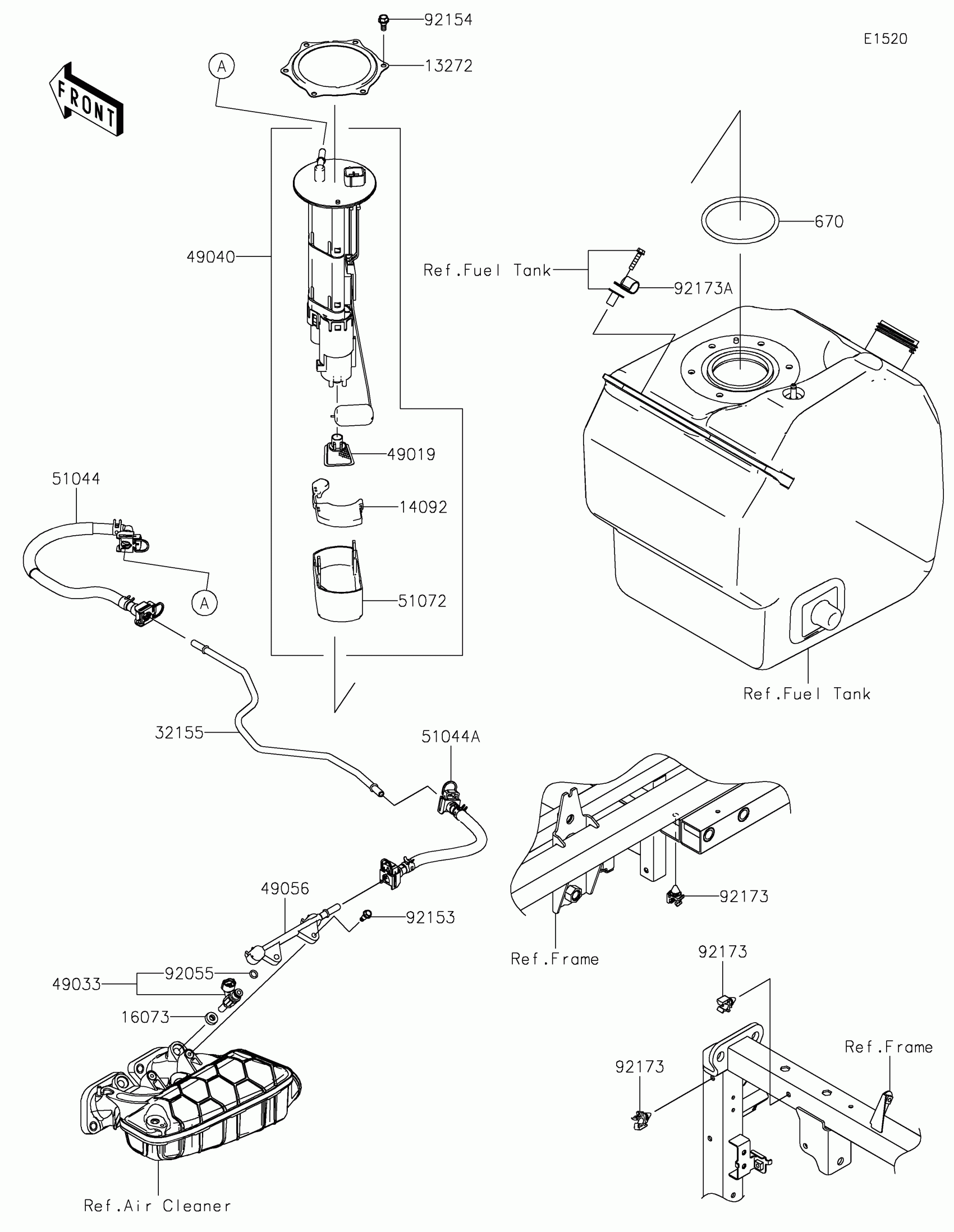

Find the part on the Fuel Pump diagram for your 2026 Kawasaki Mule PRO-FXR™ 1000 LE, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2026 Kawasaki Mule PRO-FXR™ 1000 LE Fuel Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

13272

PLATE

13272-2500

1

$5.19

In stock

14092

COVER

14092-1044

1

$31.19

In stock

16073

INSULATOR

16073-0129

1

$4.75

In stock

32155

PIPE,FUEL

32155-7381

1

$33.12

In stock

49019

FILTER-FUEL

49019-0013

1

$17.10

In stock

49033

NOZZLE-INJECTION

49033-0040

1

$132.88

In stock

49040

PUMP-FUEL

49040-0832

1

$788.27

In stock

49056

PIPE-INJECTION

49056-0566

1

$44.05

In stock

51044

TUBE-ASSY,TANK-PIPE

51044-1260

1

$206.47

In stock

51044A

1

$161.88

In stock

51072

CHAMBER-FUEL

51072-0003

1

$46.89

In stock

92055

1

$7.88

In stock

92153

BOLT,FLANGED,5MM

92153-0361

1
Out of stock

92154

BOLT,FUEL PUMP

92154-1326

1

$0.93

In stock

92173

CLAMP,FUEL PIPE

92173-1213

1

$1.32

In stock

92173A

CLAMP

92173-2551

1

$2.58

In stock

670

O RING

670E5090

1

$27.83

In stock
