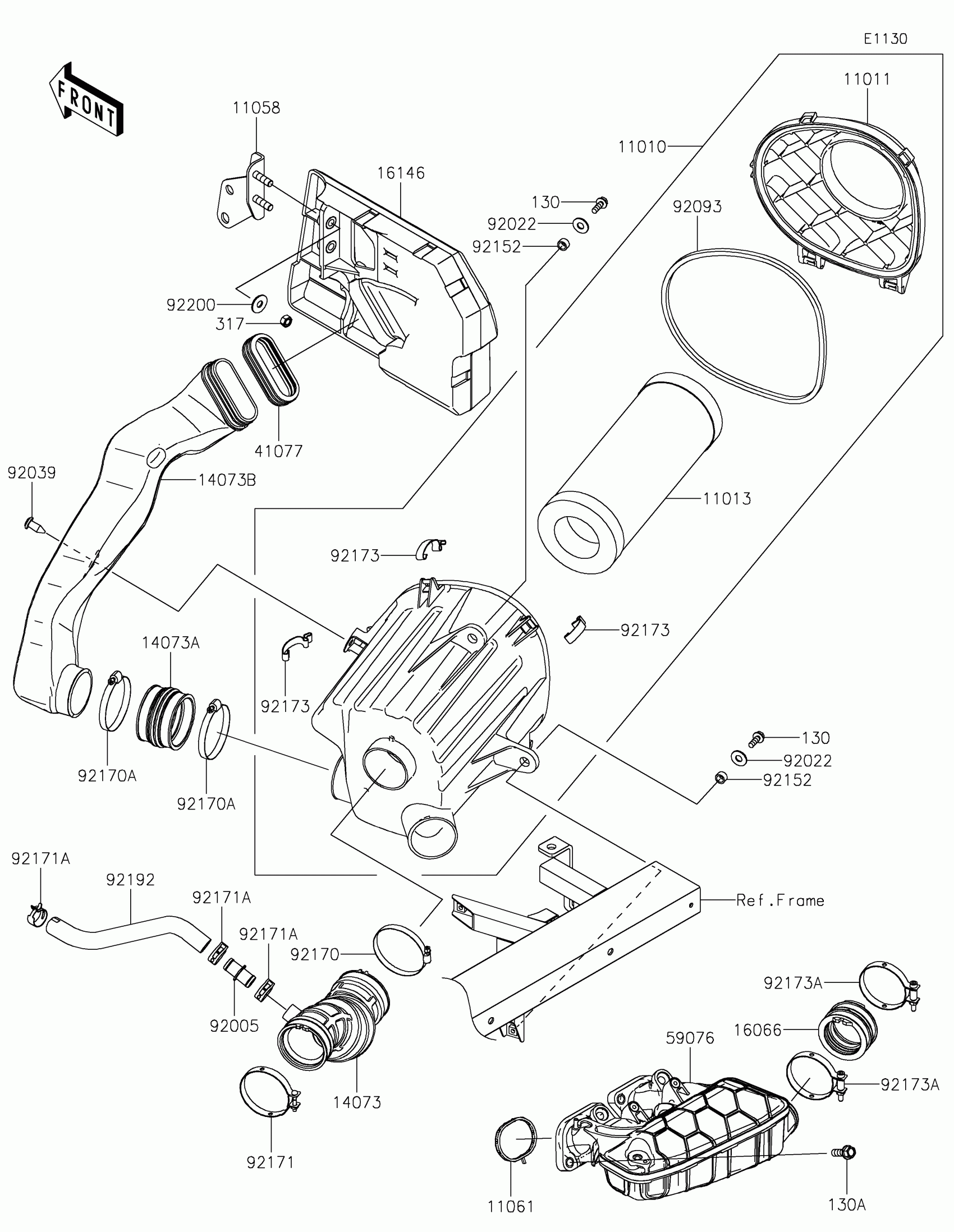

Kawasaki MULE PRO-FXR™ 1000 LE Air Cleaner Diagram

#

Description
Price

11010

FILTER-ASSY-AIR

11010-1819

$137.61

11011

CASE-AIR FILTER,UPP

11011-0971

$13.86

11013

ELEMENT-AIR FILTER

11013-7044

$24.37

11058

BRACKET,INTAKE COVER

11058-0338

$13.86

11061

GASKET,MANIFOLD-INTAKE

11061-1459

$19.08

14073

DUCT,A/F CASE-THROTTLE

14073-1890

$22.46

14073A

DUCT,INTAKE JOINT

14073-1891

$9.71

14073B

DUCT,INTAKE

14073-1904

$63.64

16066

HOLDER-THROTTLE BODY

16066-0028

$16.31

16146

COVER-ASSY,BLACK

16146-0897-6Z

$58.98

41077

ADAPTER,COVER-INTAKE

41077-0756

$3.15

59076

MANIFOLD-INTAKE

59076-0040

$145.17

92005

FITTING,DUCT-BREATHER TUBE

92005-0992

$5.51

92022

WASHER,8.5X20X1.6

92022-1561

$3.29

92039

RIVET

92039-0865

$0.80

92093

SEAL,AIR FILTER CASE

92093-0787

$5.05

92152

COLLAR,8.8X12.3X6.9

92152-1853

$3.19

92170

CLAMP

92170-1763

$4.29

92170A

CLAMP

92170-1764

$8.62

92171

CLAMP,62MM

92171-0857

$13.02

92171A

CLAMP

92171-1277

$2.25

92173

CLAMP,AIR FILTER CASE

92173-2023

$2.85

92173A

CLAMP

92173-2674

$10.59

92192

TUBE,BREATHER

92192-2632

$16.15

92200

WASHER,8.5X23X1.6

92200-0752

$1.10

130

BOLT-FLANGED,6X18

130BA0618

$1.17

130A

BOLT-FLANGED,8X25

130CA0825

$1.13

317

NUT-HEX-SMALL,8MM

317BA0800

$1.24
