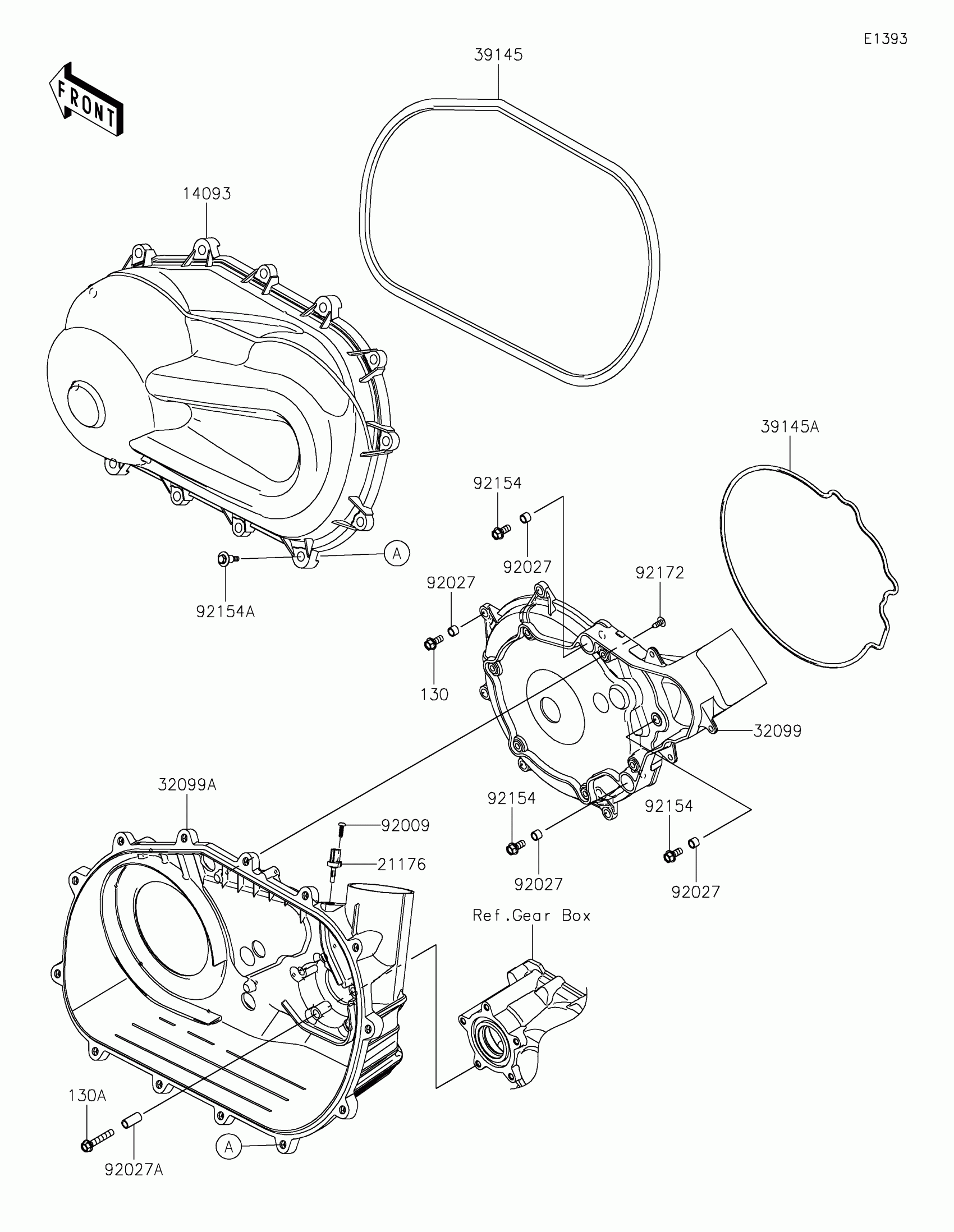

Kawasaki MULE PRO-FXR™ 1000 LE Converter Cover Diagram

Description

Price

14093

COVER,CVT

14093-1361

$51.90

21176

SENSOR,AIR TEMPERATURE

21176-0048

$26.91

32099

CASE,INNER

32099-0823

$36.59

32099A

CASE,OUTER

32099-0824

$118.79

39145

TRIM-SEAL,CVT COVER

39145-0742

$98.11

39145A

TRIM-SEAL,E/G SIDE

39145-0771

$47.97

92009

SCREW,TAPPING,5X16

92009-1264

$3.13

92027

COLLAR,8.8X12X9

92027-1568

$1.66

92027A

COLLAR

92027-4012

$6.00

92154

BOLT,FLANGED,8X18

92154-1386

$1.71

92154A

BOLT,CVT COVER

92154-1522

$3.26

92172

SCREW,6X16

92172-0284

$1.34

130

BOLT-FLANGED,8X18

130BA0818

$2.55

130A

BOLT-FLANGED,8X45

130BA0845

$1.61
