Description

Price

11056

BRACKET,STOPPER

11056-2848

$20.98

11057

BRACKET,GATE SUPPORT

11057-1438

$22.05

11065

CAP

11065-0901

$2.94

11065A

CAP

11065-0907

$2.94

13272

PLATE

13272-1597

$1.13

13272A

PLATE,FR COVER

13272-2101

$30.50

13272B

PLATE

13272-2299

$3.76

13272C

PLATE

13272-4154

$429.99

14093

COVER,SCREEN

14093-0301

$80.48

14093A

COVER,RESIN PANEL,LH,F.BLACK

14093-0585-6Z

$160.66

14093B

COVER,RESIN PANEL,RH,BLACK

14093-1441-6Z

$110.85

16073

INSULATOR,265X335

16073-0878

$10.69

16073A

INSULATOR,295X705

16073-0879

$25.33

16073B

INSULATOR,210X705

16073-0881

$20.95

31064

PIPE-COMP,FR FRAME

31064-0663

$198.05

31064A

PIPE-COMP,SIDE FRAME,LH

31064-0688

$119.64

31064B

PIPE-COMP,SIDE FRAME,RH

31064-0689

$119.64

32155

PIPE

32155-1533

$63.28

44095

DAMPER-GAS FILLED

44095-0002

$38.44

46102

ROD

46102-0629

$13.66

53029

CARRIER,BASE

53029-0379

$738.60

53044

TRIM,HEAT COVER

53044-0583

$7.71

53045

HOOK-ASSY,MAIN LOCK

53045-0025

$23.22

53045A

HOOK-ASSY,MAIN CLAMP

53045-0026

$26.44

53045B

HOOK-ASSY

53045-0029

$6.56

53062

GATE-TAIL

53062-0022

$123.56

92004

STUD

92004-0733

$3.04

92009

SCREW,TAPPING,6X16

92009-1166

$5.52

92022

WASHER,8.2X19X2

92022-1533

$5.52

92022A

WASHER,23X32X2.3

92022-1618

$6.22

92027

COLLAR,L=4.6

92027-1168

$5.00

92043

PIN,12.4X72.4

92043-0716

$7.24

92071

GROMMET,7.5X14X11

92071-0763

$4.55

92075

DAMPER,RUBBER

92075-261

$4.31

92152

COLLAR,6.8X10X9.3

92152-1799

$2.26

92154

BOLT,FLANGED,6X22

92154-1356

$1.48

92161

DAMPER

92161-1656

$1.36

92161A

DAMPER,10X40X10

92161-1775

$7.59

92161B

DAMPER,10X34X10

92161-1920

$1.59

92172

SCREW,TAPPING,6X16

92172-0739

$0.85

92173

CLAMP

92173-1850

$1.94

92200

WASHER,6.5X16X2.0

92200-1543

$2.34

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,8X12

130BA0812

$0.95

130B

BOLT-FLANGED,8X20

130BA0820

$4.14

130C

BOLT-FLANGED,6X16

130CA0616

$1.80

220

SCREW-PAN-CROS,6X10

220AB0610

$1.81

550

PIN-COTTER,3.0X30

550AA3030

$2.51

554

PIN-SNAP,12MM

554DA1200

$3.96

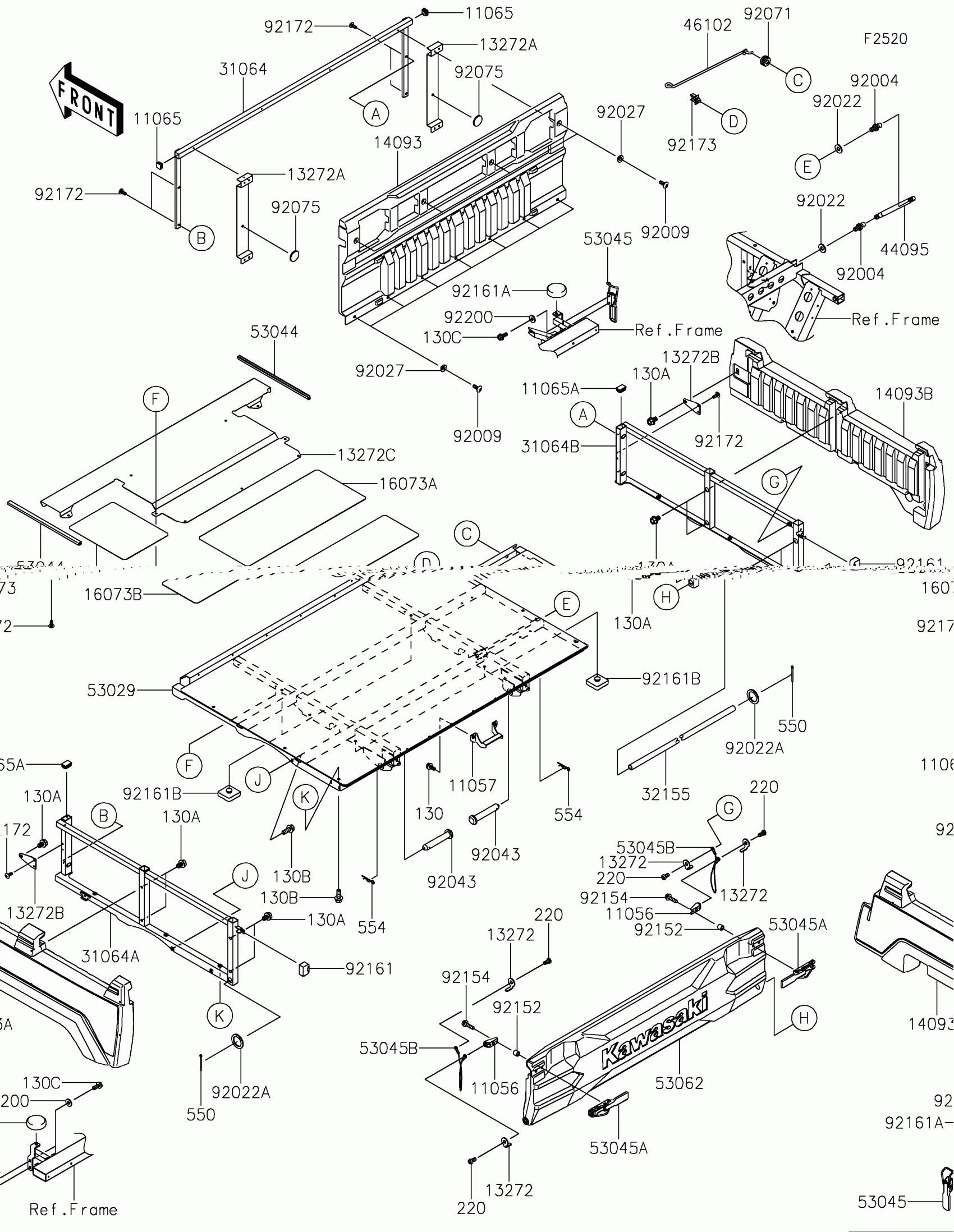

Kawasaki MULE PRO-FXR™ 1000 LE Carrier(s) Diagram

BRACKET,STOPPER

BRACKET,GATE SUPPORT

CAP

CAP

PLATE

PLATE,FR COVER

PLATE

PLATE

COVER,SCREEN

COVER,RESIN PANEL,LH,F.BLACK

COVER,RESIN PANEL,RH,BLACK

INSULATOR,265X335

INSULATOR,295X705

INSULATOR,210X705

PIPE-COMP,FR FRAME

PIPE-COMP,SIDE FRAME,LH

PIPE-COMP,SIDE FRAME,RH

PIPE

DAMPER-GAS FILLED

ROD

CARRIER,BASE

TRIM,HEAT COVER

HOOK-ASSY,MAIN LOCK

HOOK-ASSY,MAIN CLAMP

HOOK-ASSY

GATE-TAIL

STUD

SCREW,TAPPING,6X16

WASHER,8.2X19X2

WASHER,23X32X2.3

COLLAR,L=4.6

PIN,12.4X72.4

GROMMET,7.5X14X11

DAMPER,RUBBER

COLLAR,6.8X10X9.3

BOLT,FLANGED,6X22

DAMPER

DAMPER,10X40X10

DAMPER,10X34X10

SCREW,TAPPING,6X16

CLAMP

WASHER,6.5X16X2.0

BOLT-FLANGED,6X14

BOLT-FLANGED,8X12

BOLT-FLANGED,8X20

BOLT-FLANGED,6X16

SCREW-PAN-CROS,6X10

PIN-COTTER,3.0X30

PIN-SNAP,12MM
