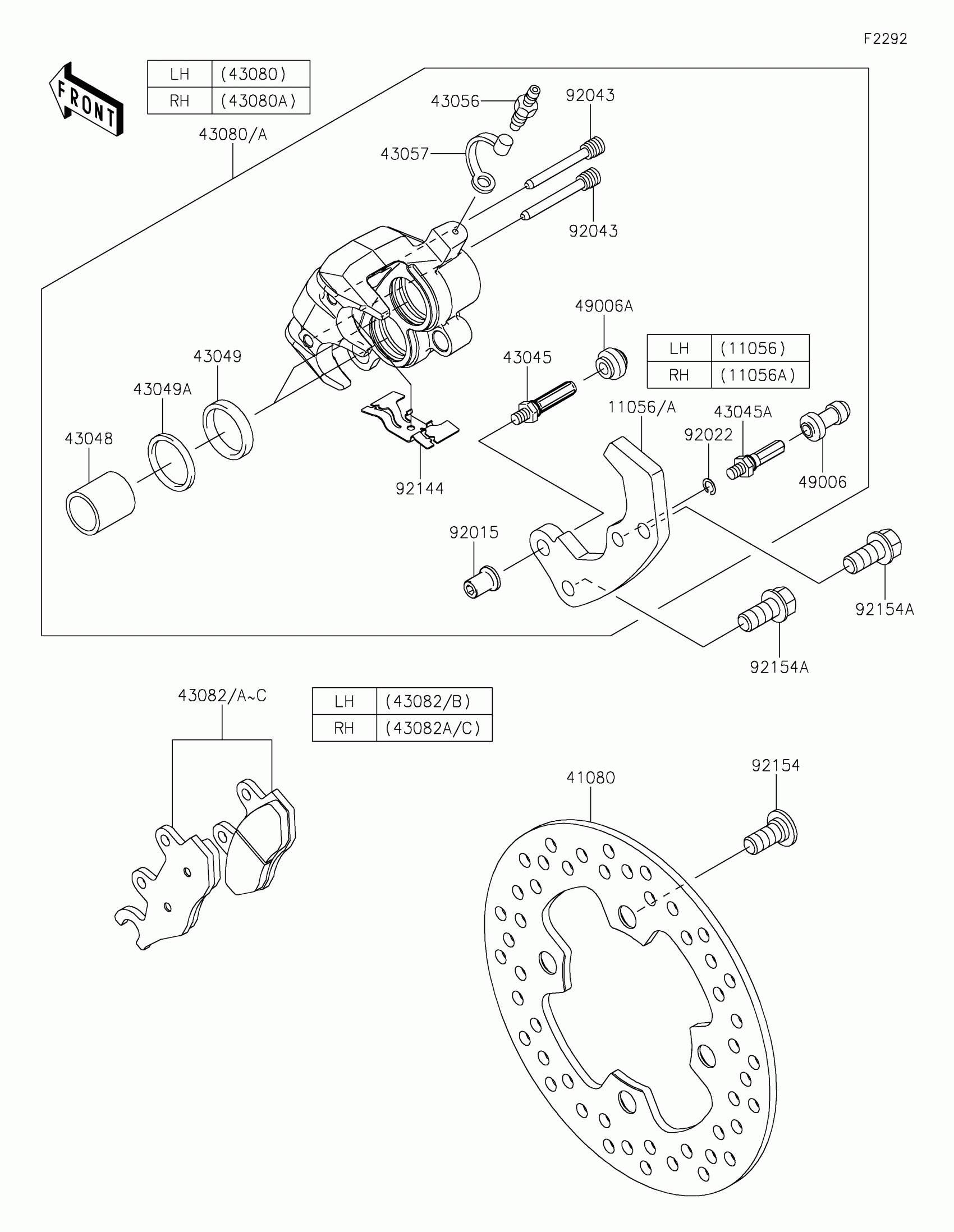

Kawasaki MULE PRO-FXR™ 1000 Front Brake Diagram

Description

Price

11056

BRACKET,LH

11056-3807

$61.32

11056A

BRACKET,RH

11056-3829

$61.32

41080

DISC

41080-0608

$61.78

43045

SHAFT-CALIPER

43045-0011

$20.77

43045A

SHAFT-CALIPER

43045-1010

$20.77

43048

PISTON-CALIPER

43048-1068

$81.86

43049

PACKING,PISTON SEAL

43049-1060

$19.45

43049A

PACKING,PISTON SEAL

43049-1061

$10.56

43056

BREATHER

43056-1055

Unavailable

43057

CAP-BREATHER

43057-1001

$4.91

43080

CALIPER-SUB-ASSY,FR,LH

43080-0138

$385.27

43080A

CALIPER-SUB-ASSY,FR,RH

43080-0139

$385.27

43082B

PAD-ASSY-BRAKE,FR,LH

43082-0216

$39.34

43082C

PAD-ASSY-BRAKE,FR,RH

43082-0217

$39.34

49006

BOOT,CALIPER

49006-1088

$11.61

49006A

BOOT,CALIPER

49006-1242

$5.46

92015

NUT

92015-1740

$6.26

92022

WASHER,WAVE

92022-1373

$3.92

92043

PIN,HANGER

92043-1416

$18.57

92144

SPRING,PAD

92144-1847

$30.33

92154

BOLT,SOCKET,10X23

92154-0713

$4.10

92154A

BOLT,FLANGED,10X22

92154-1327

$2.75
