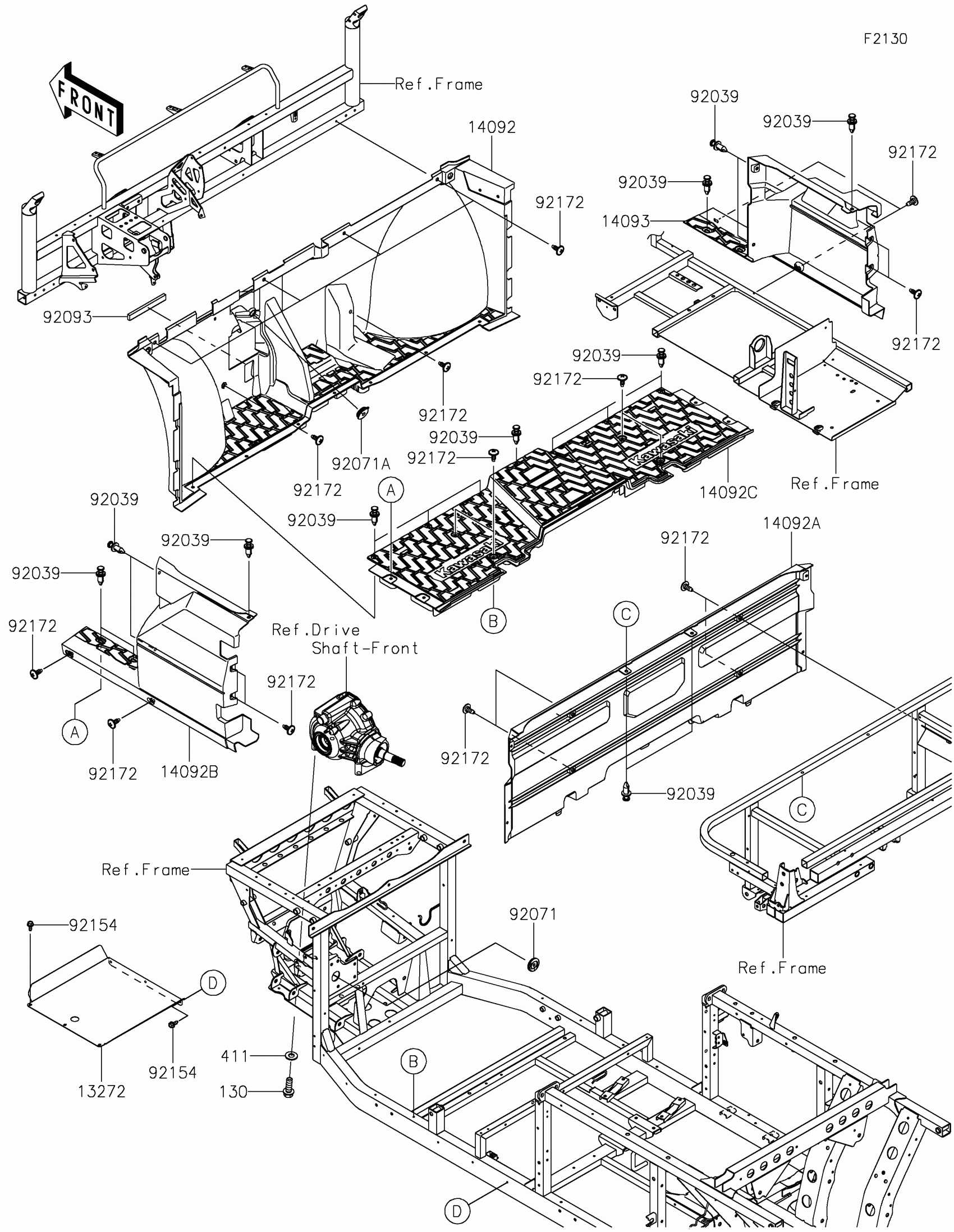

Kawasaki MULE PRO-FXR 1000 Frame Fittings(Front)(MRFNN-MSSNL) Diagram

Description

Price

13272

PLATE,FLOOR BOTTOM

13272-2205

$59.95

14092

COVER,FR FLOOR

14092-1184

$245.36

14092A

COVER,FR SEAT

14092-1185

$115.40

14092B

COVER,SIDE,LH,FR

14092-1188

$77.48

14092C

COVER,FLOOR,BOTTOM

14092-1196

$204.92

14093

COVER,SIDE,RH,FR

14093-0589

$88.63

92039

RIVET

92039-0865

$0.80

92071

GROMMET,9X45X9

92071-0728

$1.14

92071A

GROMMET,8X22X8

92071-0753

$4.10

92093

SEAL,10X20X165

92093-0617

$3.53

92154

BOLT,6X15.6

92154-1250

$0.83

92172

SCREW,6X16

92172-0711

$2.11

130

BOLT-FLANGED,12X35

130CA1235

$2.75

411

WASHER-PLAIN,12MM

411AA1200

$0.81
