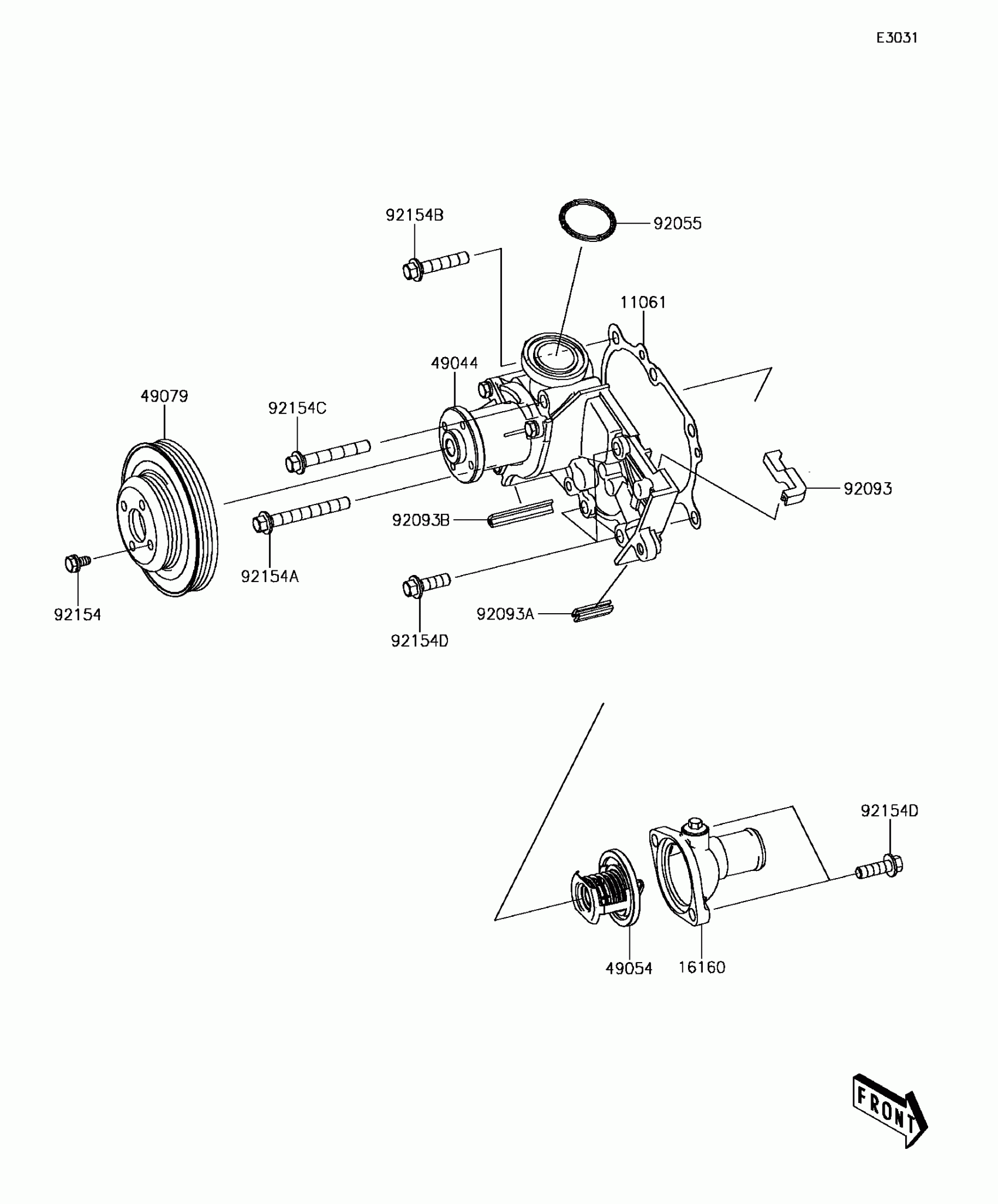

Kawasaki MULE PRO-FX™ RANCH EDITION Water Pump Diagram

Description

Price

11061

GASKET,WATER PUMP

11061-0955

$7.27

16160

BODY,THERMOSTAT HOUSING

16160-0744

$21.35

49044

PUMP-WATER

49044-0014

$126.24

49054

THERMOSTAT

49054-0007

$18.08

49079

PULLEY-BELT

49079-0022

$53.94

92055

RING-O

92055-0825

$2.80

92093

SEAL

92093-0638

$1.16

92093A

SEAL

92093-0639

$0.76

92093B

SEAL

92093-0640

$1.30

92154

BOLT,6X12

92154-1598

$1.31

92154A

BOLT,FLANGED,8X65

92154-1599

$2.67

92154B

BOLT,FLANGED,8X40

92154-1600

$1.83

92154C

BOLT,FLANGED,8X55

92154-1601

$2.26

92154D

BOLT,FLANGED,8X25

92154-1602

$1.08
