- MULE PRO-FX™ RANCH EDITION
Valve(s)/Camshaft(s)

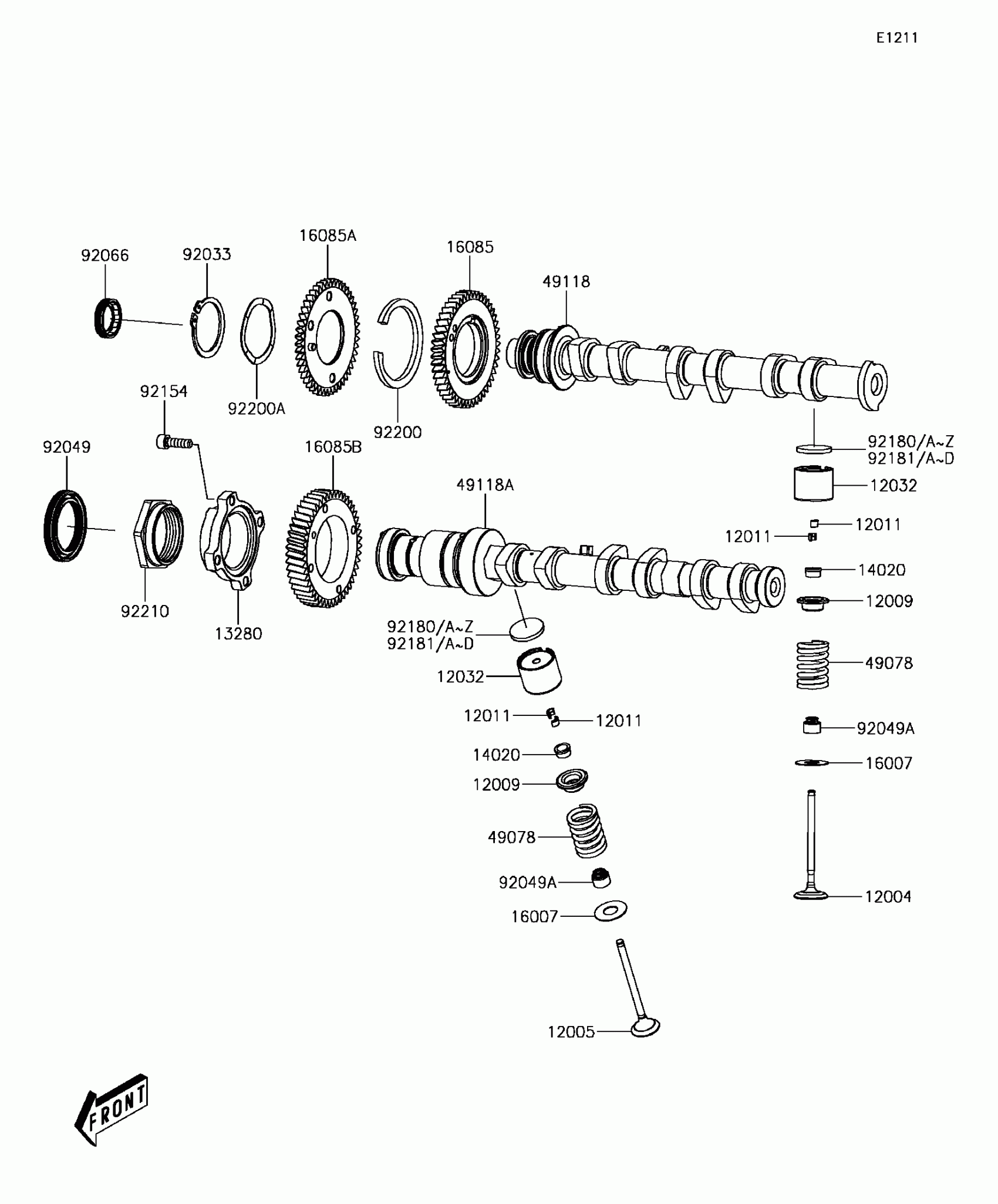

Kawasaki MULE PRO-FX™ RANCH EDITION Valve(s)/Camshaft(s) Diagram
#
12004
VALVE-INTAKE
12004-0732
$23.38
12005
VALVE-EXHAUST
12005-0749
$12.23
12009
RETAINER-VALVE SPRING
12009-0027
$1.59
12011
COLLET
12011-0003
$0.76
12032
TAPPET
12032-0019
$9.01
13280
HOLDER
13280-0827
$6.63
14020
RETAINER
14020-0015
$3.21
16007
SEAT-SPRING
16007-0729
$0.55
16085
GEAR,INTAKE CAMSHAFT,MASTER
16085-0626
$66.77
16085A
GEAR,INTAKE CAMSHAFT,SUB
16085-0627
$120.13
16085B
GEAR,EXHAUST CAMSHAFT
16085-0628
$44.18
49078
SPRING-ENGINE VALVE
49078-0724
$6.63
49118
CAMSHAFT-COMP,INTAKE
49118-0836
$99.97
49118A
CAMSHAFT-COMP,EXHAUST
49118-0837
$93.88
92033
RING-SNAP
92033-0754
$1.79
92049
SEAL-OIL
92049-0776
$12.51
92049A
SEAL-OIL,AIR VALVE
92049-0777
$3.75
92066
PLUG
92066-0809
$2.53
92154
BOLT,SOCKET,6X20
92154-1619
$1.59
92180
SHIM,T=2.18
92180-0819
$4.25
92180A
SHIM,T=2.20
92180-0820
Unavailable
92180B
SHIM,T=2.22
92180-0821
Unavailable
92180C
SHIM,T=2.24
92180-0822
Unavailable
92180D
SHIM,T=2.26
92180-0823
Unavailable
92180E
SHIM,T=2.28
92180-0824
Unavailable
92180F
SHIM,T=2.30
92180-0825
Unavailable
92180G
SHIM,T=2.32
92180-0826
Unavailable
92180H
SHIM,T=2.34
92180-0827
Unavailable
92180I
SHIM,T=2.36
92180-0828
Unavailable
92180J
SHIM,T=2.38
92180-0829
Unavailable
92180K
SHIM,T=2.40
92180-0830
Unavailable
92180L
SHIM,T=2.42
92180-0831
Unavailable
92180M
SHIM,T=2.44
92180-0832
Unavailable
92180N
SHIM,T=2.46
92180-0833
Unavailable
92180O
SHIM,T=2.48
92180-0834
Unavailable
92180P
SHIM,T=2.50
92180-0835
Unavailable
92180Q
SHIM,T=2.52
92180-0836
Unavailable
92180R
SHIM,T=2.54
92180-0837
Unavailable
92180S
SHIM,T=2.56
92180-0838
Unavailable
92180T
SHIM,T=2.58
92180-0839
Unavailable
92180U
SHIM,T=2.60
92180-0840
Unavailable
92180V
SHIM,T=2.62
92180-0841
Unavailable
92180W
SHIM,T=2.64
92180-0842
Unavailable
92180X
SHIM,T=2.66
92180-0843
Unavailable
92180Y
SHIM,T=2.68
92180-0844
Unavailable
92180Z
SHIM,T=2.70
92180-0845
Unavailable
92181
SHIM,T=2.72
92180-0846
Unavailable
92181A
SHIM,T=2.74
92180-0847
Unavailable
92181B
SHIM,T=2.76
92180-0848
Unavailable
92181C
SHIM,T=2.78
92180-0849
Unavailable
92181D
SHIM,T=2.80
92180-0850
Unavailable
92200
WASHER
92200-1684
$15.24
92200A
WASHER,SPRING
92200-1685
$2.28
92210
NUT
92210-0948
$3.21
