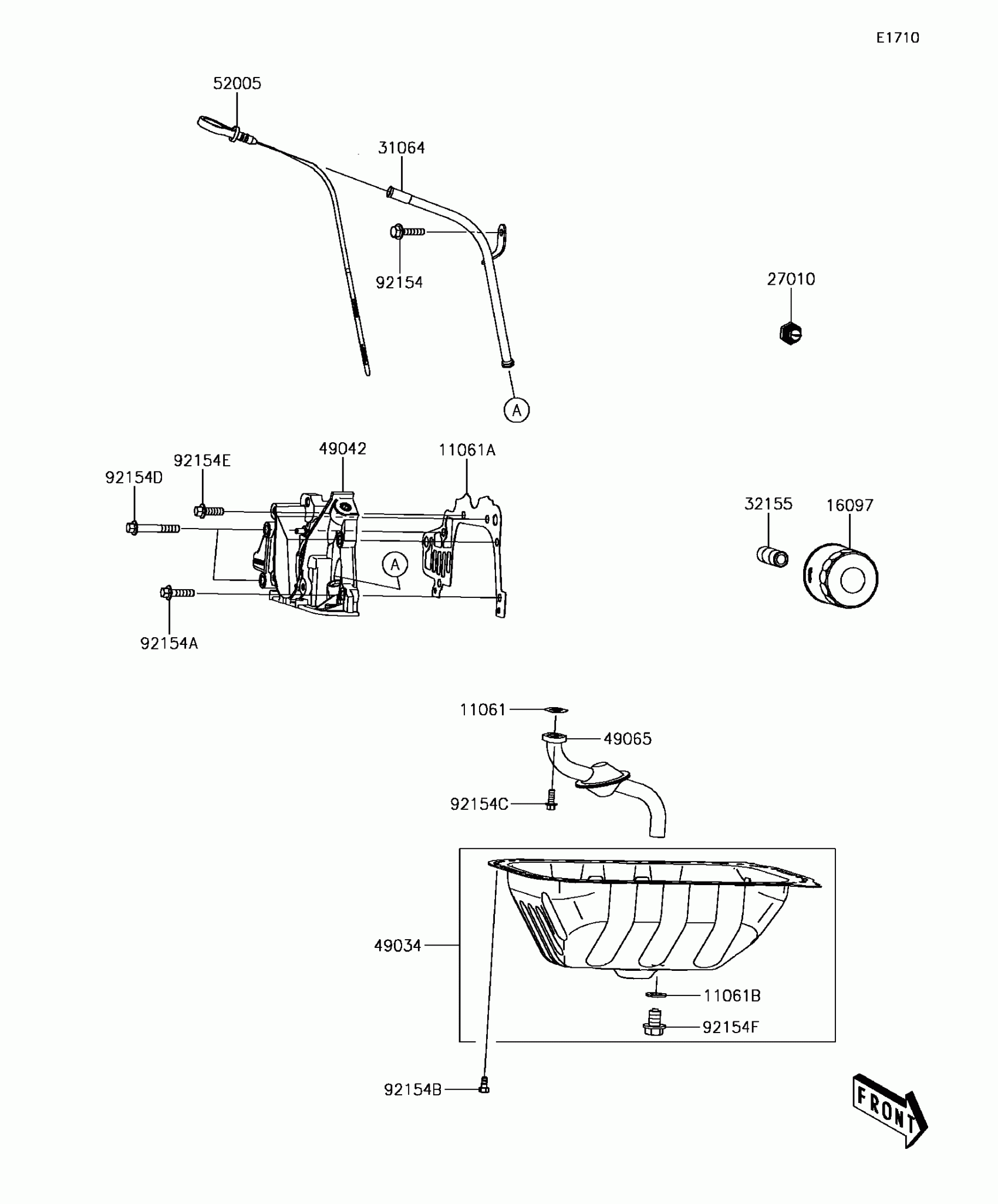

Kawasaki MULE PRO-FX™ RANCH EDITION Oil Pump/Oil Filter Diagram

Description

Price

11061

GASKET,OIL PICKUP

11061-0957

$2.26

11061A

GASKET,OIL PUMP

11061-0958

$8.16

11061B

GASKET,DRAIN

11061-0962

$1.79

16097

FILTER-ASSY-OIL

16097-0010

$9.22

27010

SWITCH,OIL PRESSURE

27010-0804

$9.40

31064

PIPE-COMP,LEVEL GAUGE

31064-0633

$16.60

32155

PIPE,OIL FILTER

32155-1893

$2.13

49034

PAN-OIL

49034-0558

$504.11

49042

PUMP-OIL

49042-0001

$109.06

49065

FILTER-OIL

49065-0029

$40.89

52005

GAUGE,OIL LEVEL

52005-0728

$10.17

92154

BOLT,FLANGED

92154-1579

$0.95

92154A

BOLT,FLANGED,8X30

92154-1592

$0.82

92154B

BOLT,6X12

92154-1594

$0.64

92154C

BOLT,FLANGED,6X16

92154-1596

$0.67

92154D

BOLT,FLANGED,8X55

92154-1601

$2.26

92154E

BOLT,FLANGED,8X25

92154-1602

$1.08

92154F

BOLT,DRAIN

92154-1635

$4.87
