Partiron

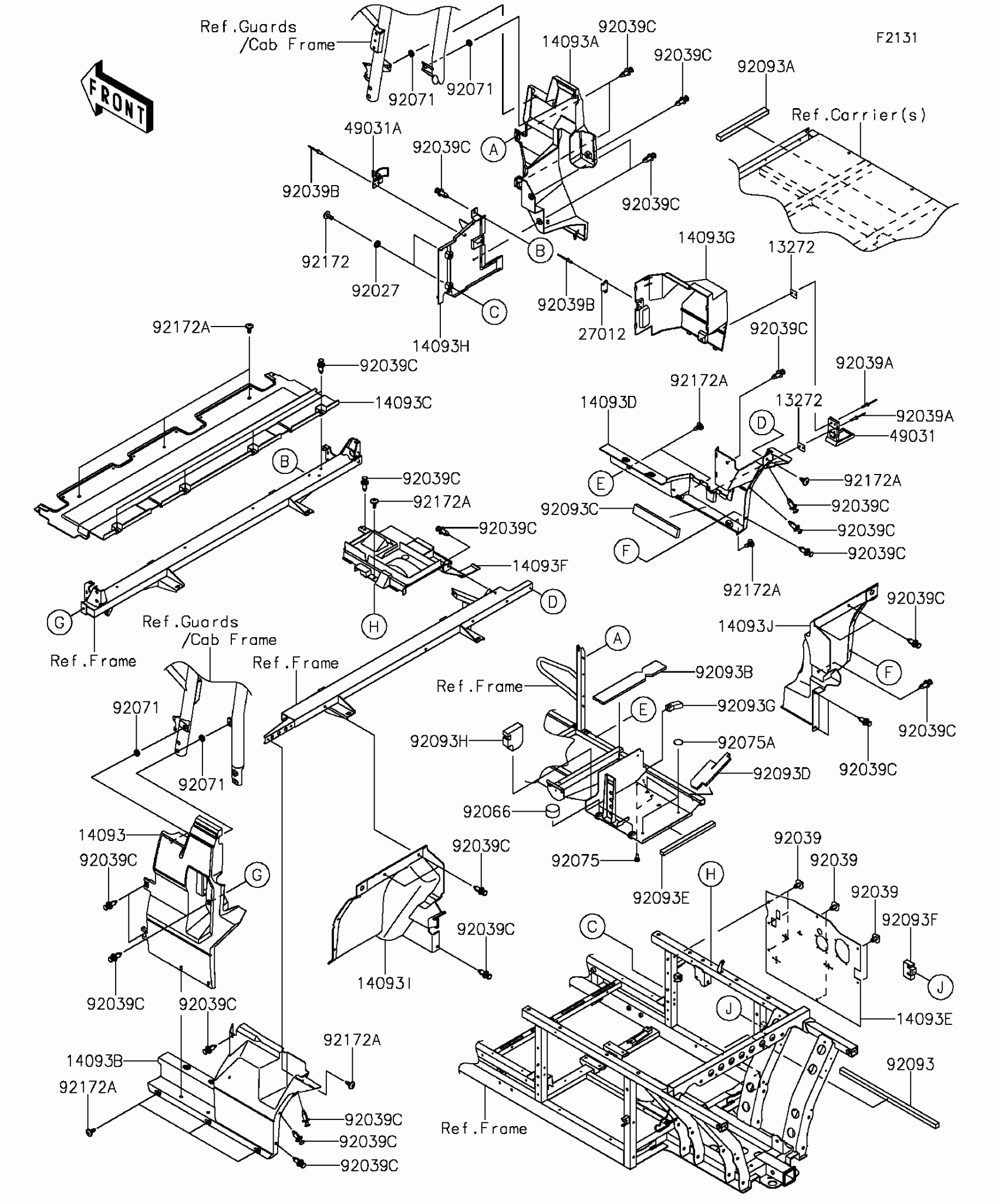

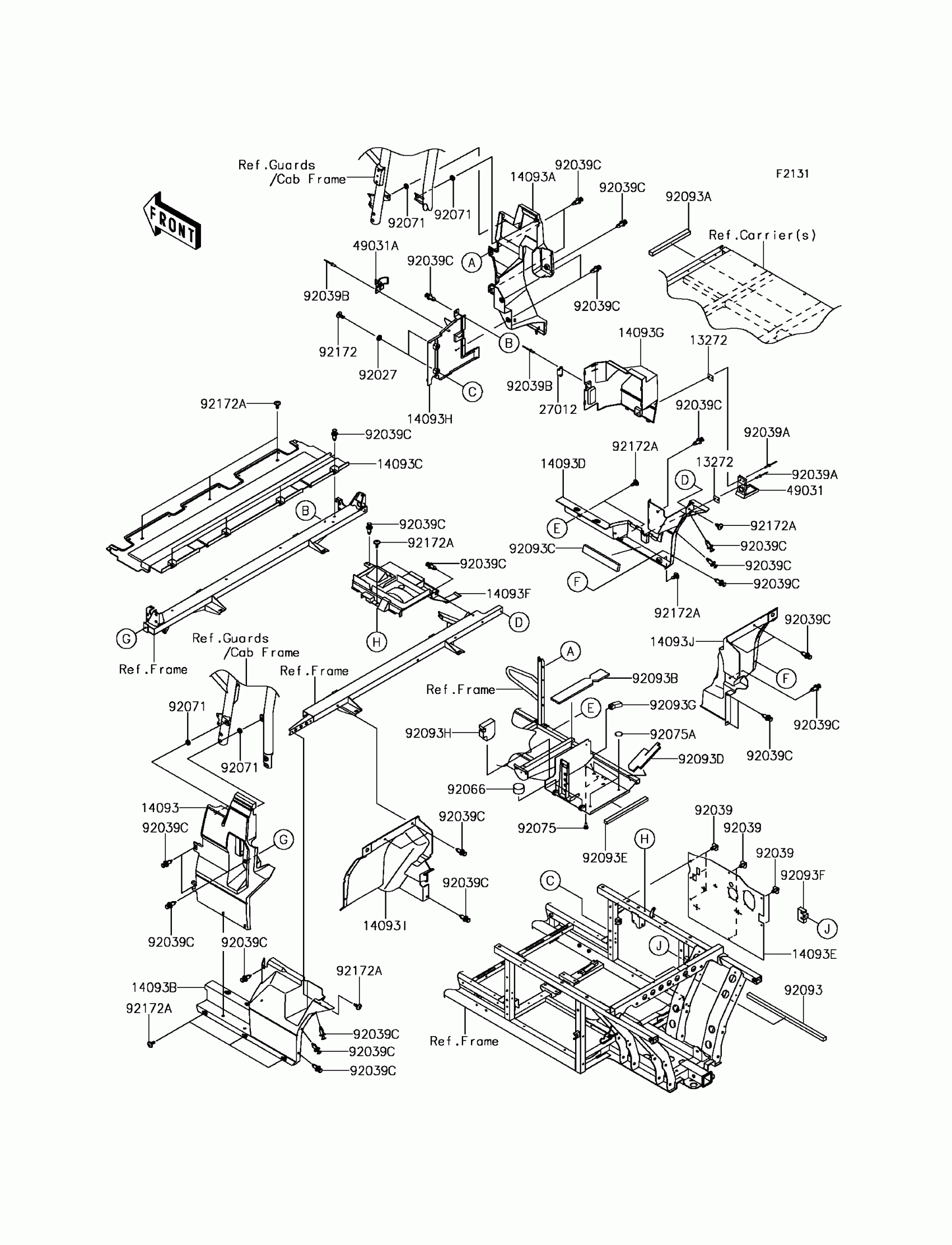

Kawasaki MULE PRO-FX™ EPS LE Frame Fittings(Rear) Diagram

#

Description
Price

13272

PLATE,LATCH

13272-1828

$0.85

14093

COVER,SIDE,LH,FR,F.BLACK

14093-0167-6Z

$36.81

14093A

COVER,SIDE,RH,FR,F.BLACK

14093-0168-6Z

$36.81

14093B

COVER,SIDE,LH,RR

14093-0169

$88.63

14093C

COVER,SEAT,BACK

14093-0171

$55.54

14093D

COVER,SIDE,RH,RR

14093-0173

$48.24

14093E

COVER,DUST,A/C BOX

14093-0257

$36.64

14093F

COVER,DUST

14093-0311

$16.83

14093G

COVER,SIDE,RH,A/C MAINT.

14093-0371

$46.03

14093H

COVER,SIDE,RH,A/C,FR

14093-0372

$22.32

14093I

COVER,RR,FLOOR,MUD,LH

14093-0388

$72.72

14093J

COVER,RR,FLOOR,MUD,RH

14093-0389

$67.27

27012

HOOK,STRIKER

27012-0806

$2.06

49031

LATCH,A/C

49031-0007

$3.83

49031A

LATCH,TOGGLE

49031-0015

$5.97

92027

COLLAR,L=4.6

92027-1168

$3.81

92039

RIVET

92039-0086

$4.18

92039A

RIVET,3.2X13.4

92039-0739

$1.77

92039B

RIVET

92039-0747

$1.77

92039C

RIVET

92039-1229

$0.80

92066

PLUG,36X20

92066-0812

$1.71

92071

GROMMET

92071-056

$3.25

92075

DAMPER,6X10X15

92075-1808

$1.06

92075A

DAMPER,RUBBER

92075-261

$3.85

92093

SEAL,DUST,20X20X565

92093-0631

$11.02

92093A

SEAL,DUST,20X25X280

92093-0633

$7.61

92093B

SEAL,DUST,61X368X10

92093-0643

$15.20

92093C

SEAL,DUST,39X255X15

92093-0644

$10.24

92093D

SEAL,DUST,69X207X10

92093-0645

$10.93

92093E

SEAL,DUST,15X305X20

92093-0646

$7.42

92093F

SEAL,52X72X20

92093-0651

$4.27

92093G

SEAL,21.5X60X20

92093-0652

$2.61

92093H

SEAL,GOMSPOR

92093-0667

$18.49

92172

SCREW,6X16

92172-0236

$0.73

92172A

SCREW,6X16

92172-0711

$2.11
