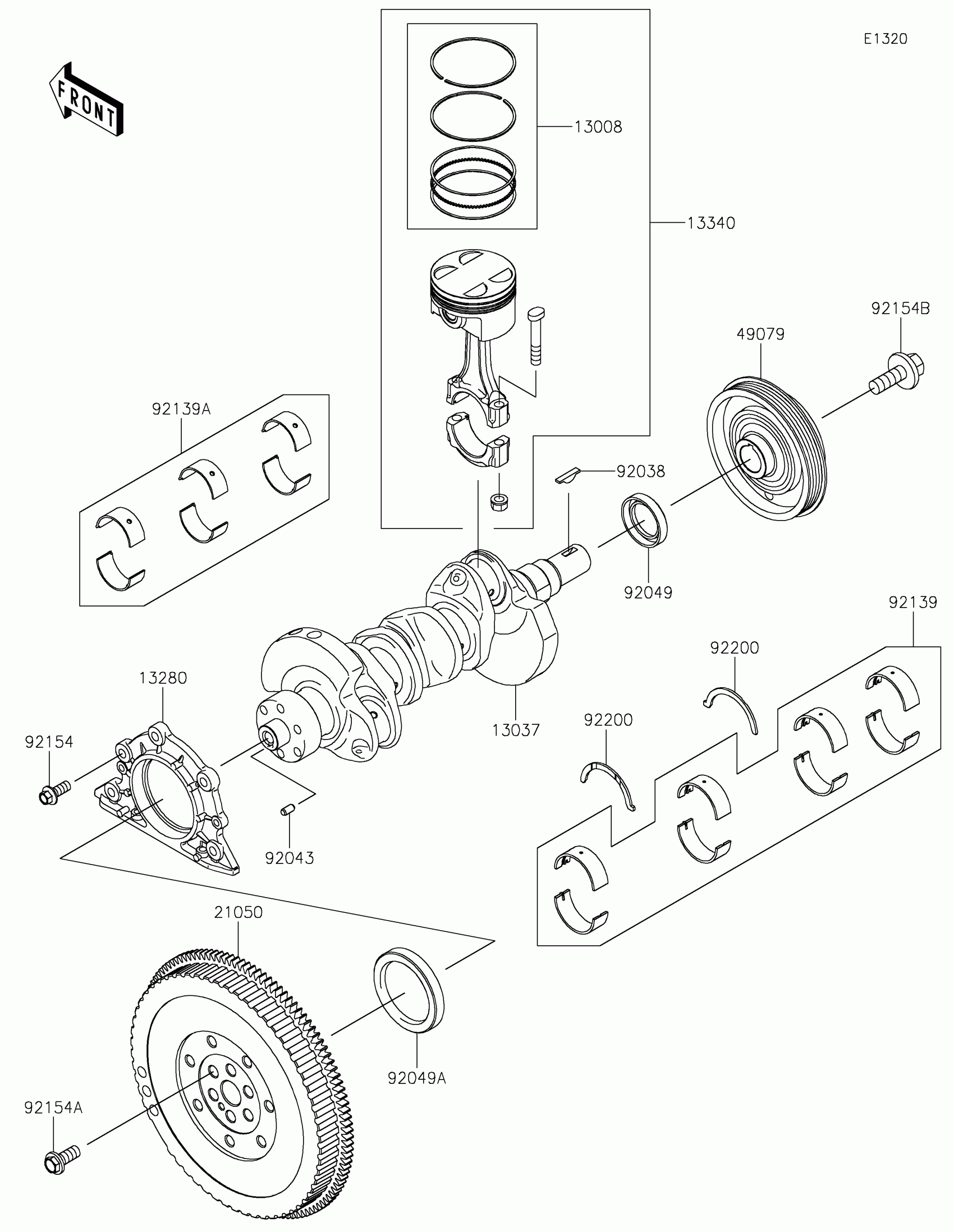

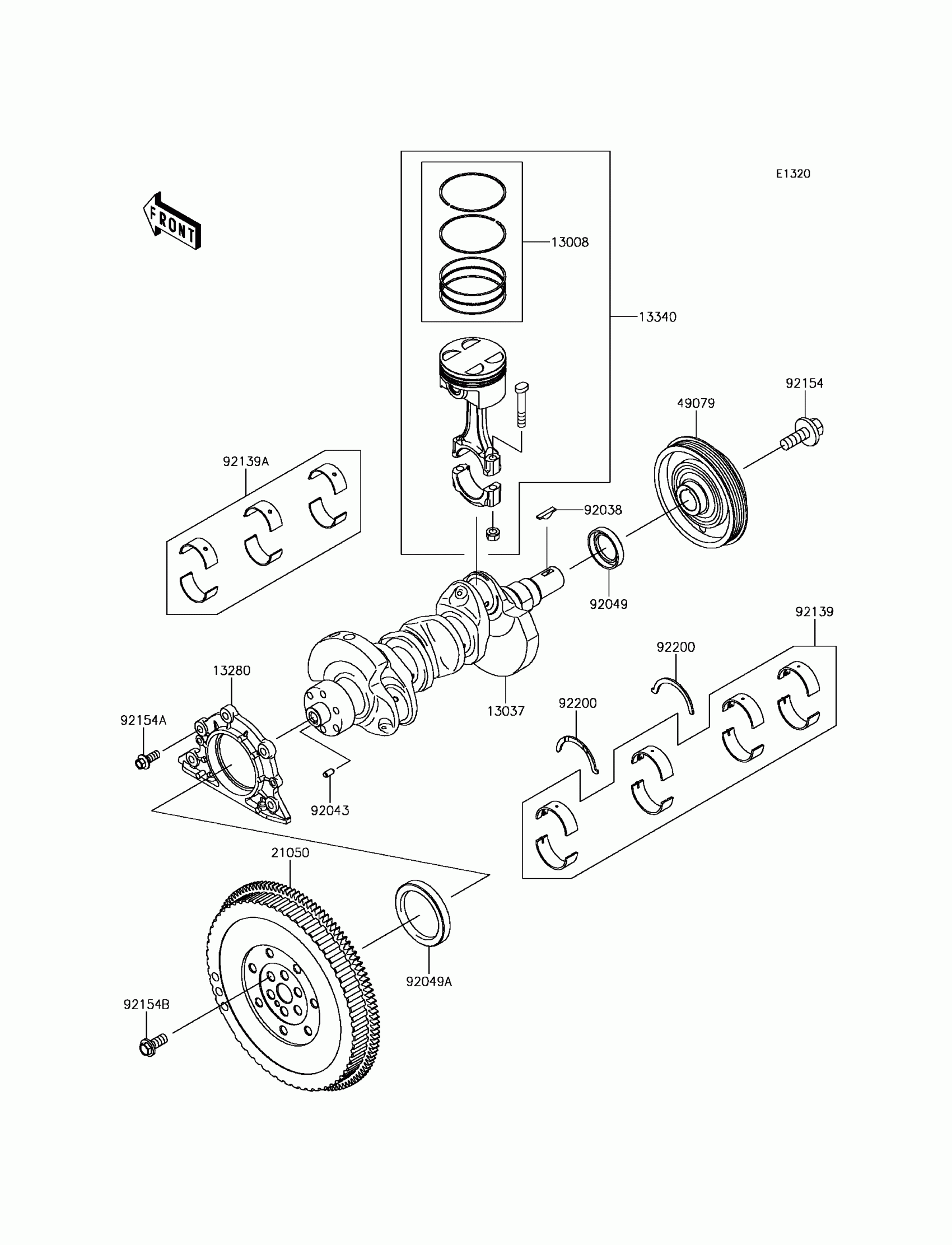

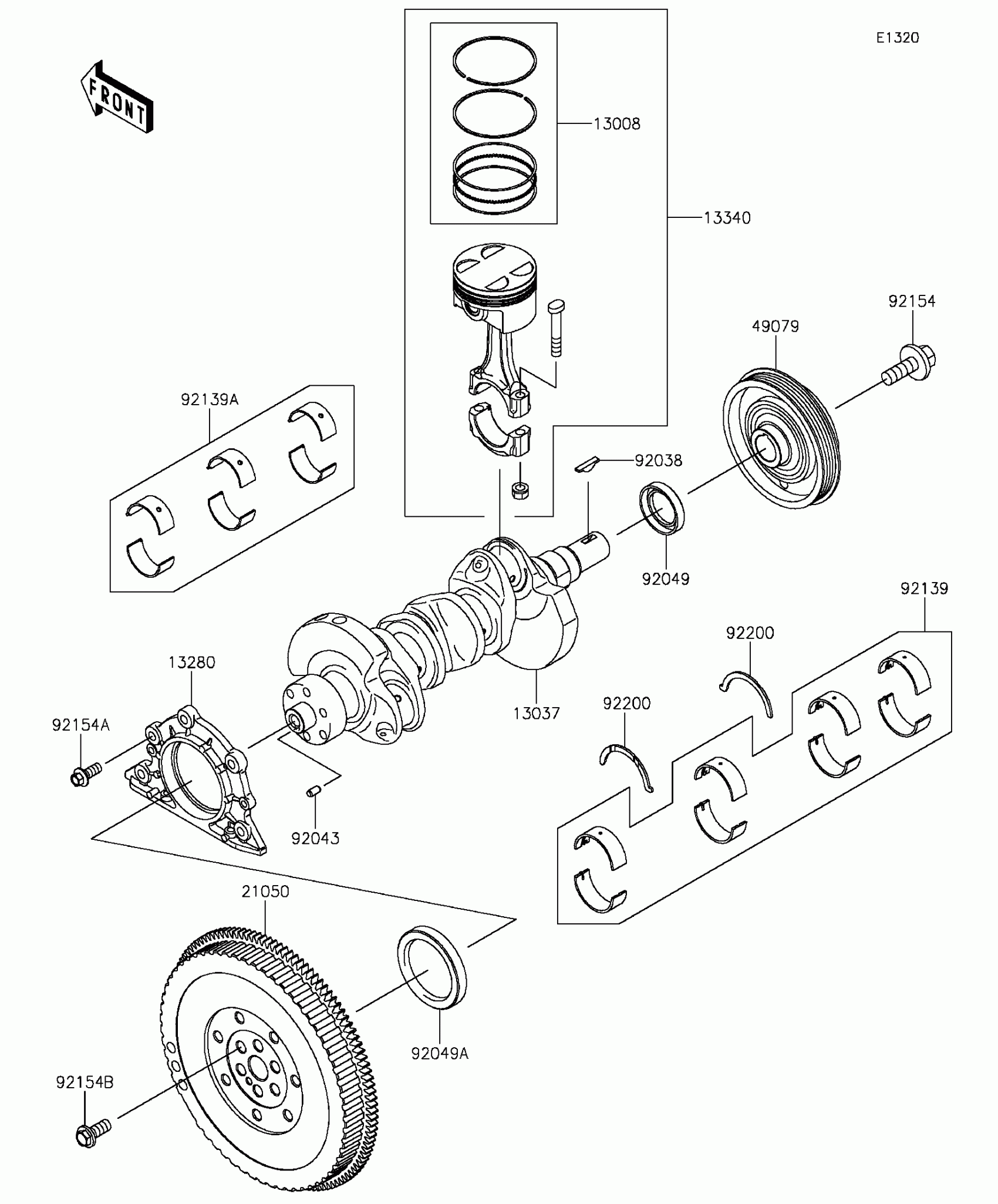

Kawasaki MULE PRO-FX™ EPS LE Crankshaft/Piston(s) Diagram

#

Description
Price

13008

RING-SET-PISTON

13008-0561

$48.39

13037

CRANKSHAFT

13037-0854

$248.78

13280

HOLDER

13280-0826

$27.84

13340

PISTON-ASSY-ENGINE

13340-0003

$165.11

21050

FLYWHEEL

21050-0008

$138.78

49079

PULLEY-BELT,CRANKSHAFT

49079-0021

$121.77

92038

KEY

92038-0005

$3.87

92043

PIN

92043-0830

$0.88

92049

SEAL-OIL

92049-0774

$7.35

92049A

SEAL-OIL

92049-0775

$19.55

92139

BUSHING

92139-0833

$13.84

92139A

BUSHING

92139-0838

$18.33

92154

BOLT,FLANGED,8X20

92154-1586

$1.45

92154A

BOLT,FLYWHEEL

92154-1587

$2.67

92154B

BOLT,CRANKSHAFT PULLEY

92154-1831

$2.79

92200

WASHER

92200-1682

$4.04
