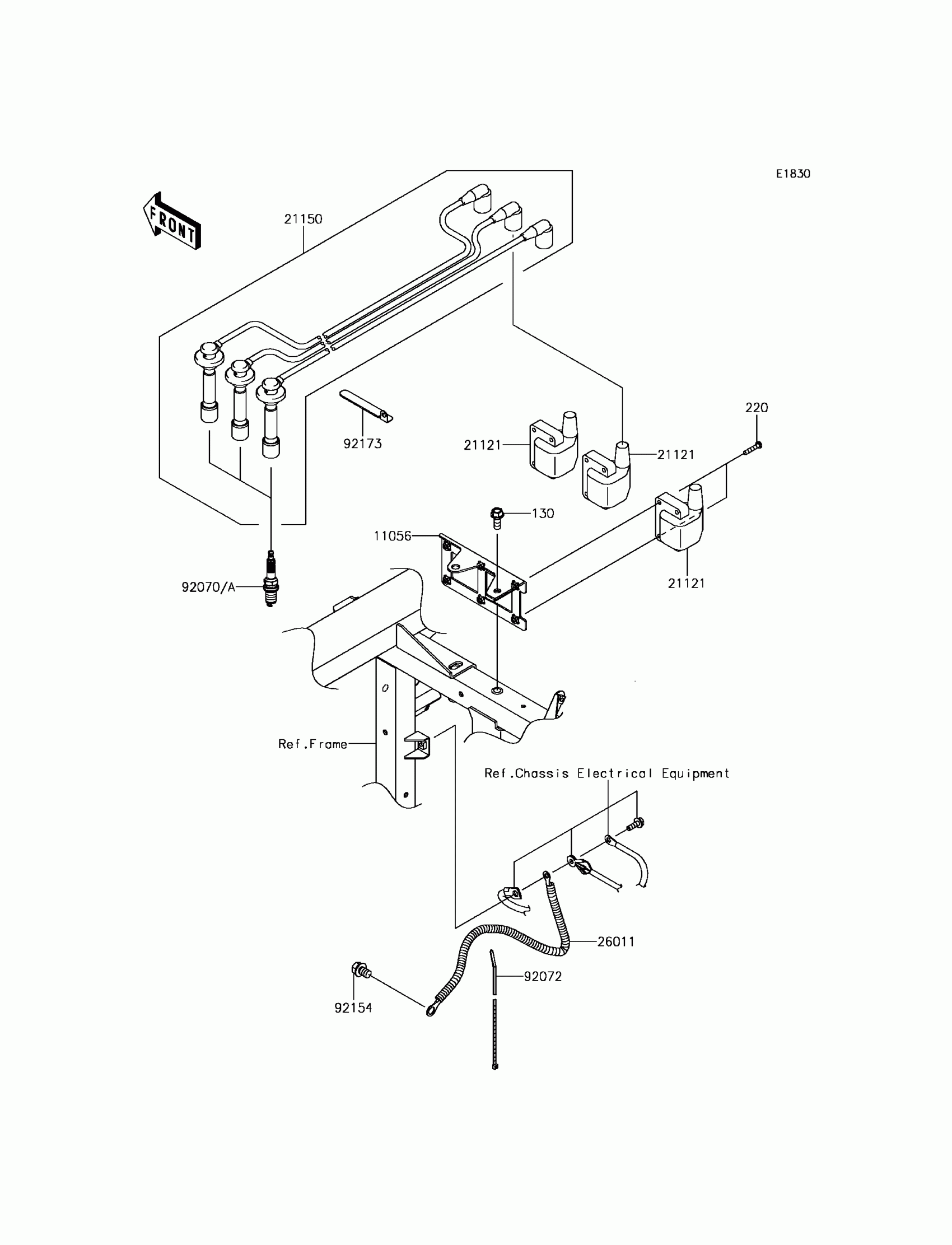

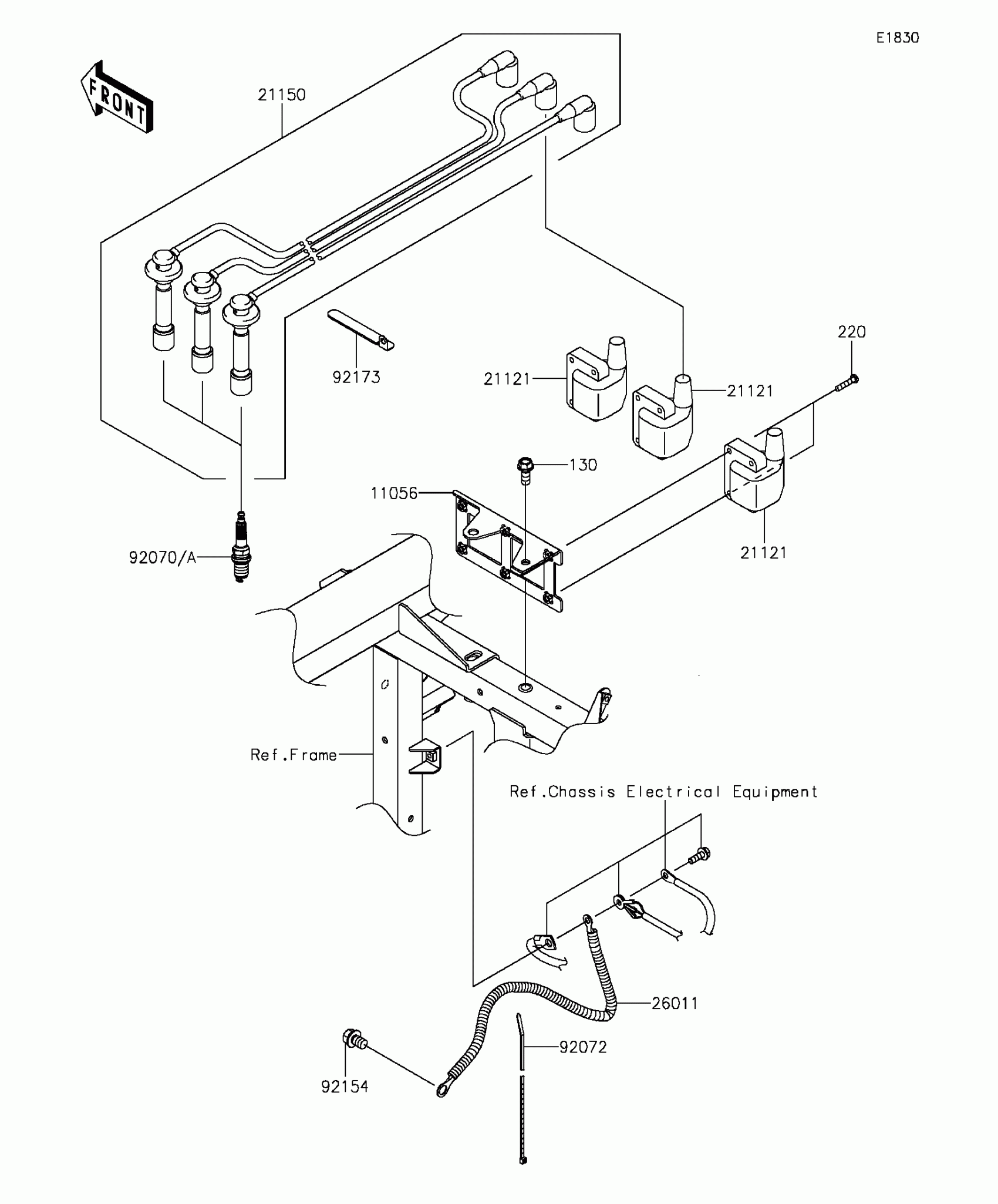

Kawasaki MULE PRO-FX™ EPS Ignition System Diagram

#

Description
Price

11056

BRACKET

11056-7248

$21.73

130

BOLT-FLANGED,8X20

130BA0820

$3.04

21121

COIL-IGNITION

21121-0724

$77.20

21150

CORD-ASSY,HIGH TENSION

21150-0013

$53.77

220

SCREW-PAN-CROS,5X25

220AA0525

$3.24

26011

WIRE-LEAD

26011-0846

$14.78

92070

PLUG-SPARK,7026(TORCH)

92070-0048

$7.46

92070A

Not Available As Spare Part - Friction Washer

Unavailable

92072

BAND,L=292.1

92072-3509

Unavailable

92154

BOLT,FLANGED,10X14

92154-1383

$1.47

92173

CLAMP

92173-1056

$3.49
