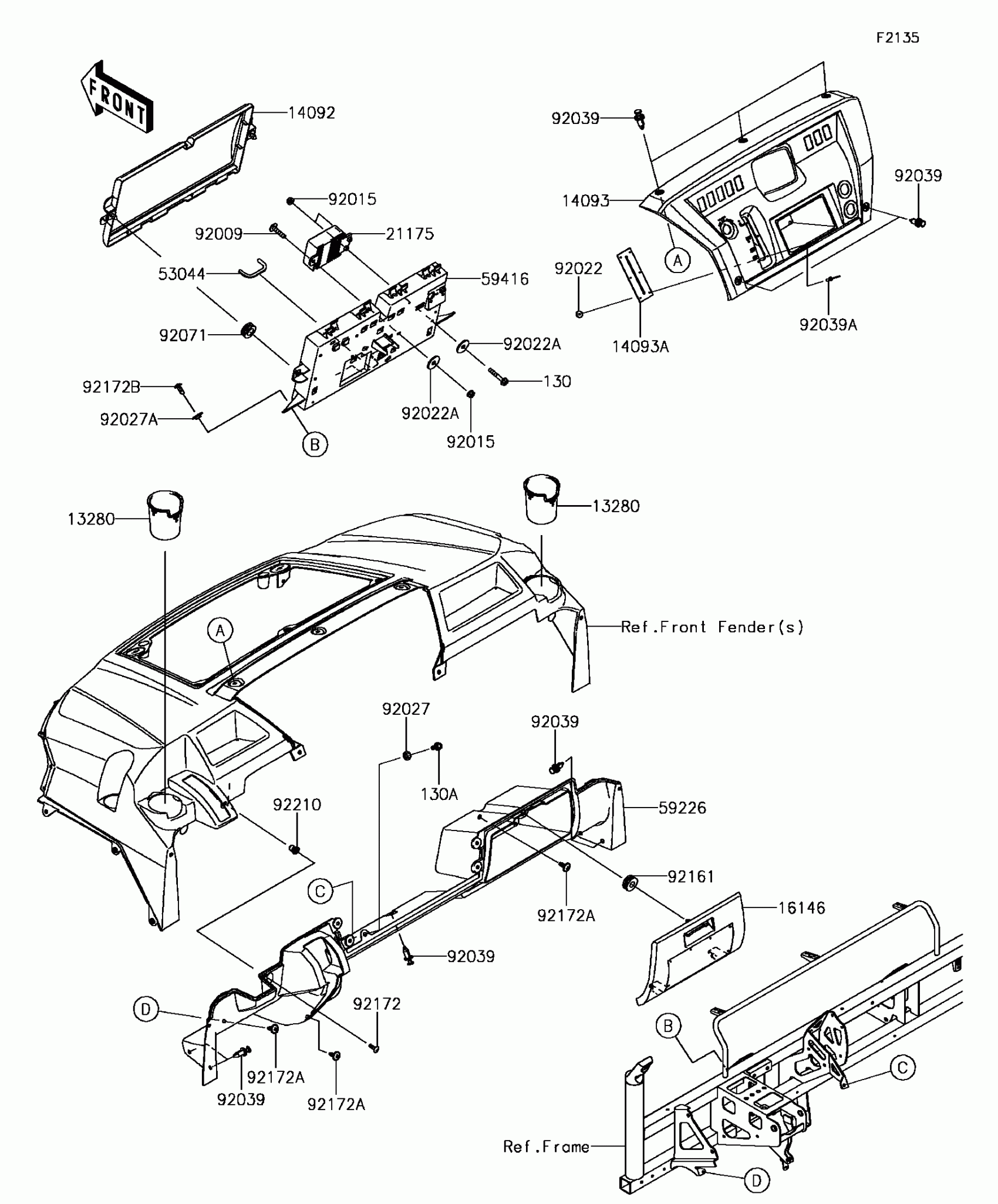

Kawasaki MULE PRO-FX™ EPS CAMO Front Box Diagram
#
Description
Price
130
BOLT-FLANGED,6X35
130BA0635
$0.94
130A
BOLT-FLANGED,6X16
130CA0616
$1.80
13280
HOLDER,CUP
13280-0774
$13.38
14092
COVER,ELECTRIC BOX
14092-1197
$39.28
14093
COVER,DASHBOARD
14093-0072
$71.40
14093A
COVER,SHIFT LEVER
14093-0146
$2.70
16146
COVER-ASSY,GLOVE BOX
16146-0786
$29.93
21175
CONTROL UNIT-ELECTRONIC,EPS
21175-0969
$861.42
53044
TRIM
53044-0572
$2.15
59226
PANEL-CONTROL
59226-0042
$114.81
59416
CASE-ELECTRIC
59416-0026
$38.44
92009
SCREW,6X28,BLACK
92009-1400
$5.52
92015
NUT,FLANGED,6MM
92015-1367
$3.69
92022
WASHER,3.3X12X1.2
92022-1407
$3.65
92022A
WASHER,6.5X22X1.6
92022-237
$3.92
92027
COLLAR,L=4.6
92027-1168
$5.00
92027A
COLLAR,L=5.1
92027-1260
$6.22
92039
RIVET
92039-1229
$1.19
92039A
RIVET
92039-1231
$1.81
92071
GROMMET
92071-1131
$7.77
92161
DAMPER,7.8X26X10
92161-1786
$1.19
92172
SCREW,5MM
92172-0292
$3.39
92172A
SCREW,6X16
92172-0711
$3.02
92172B
SCREW,TAPPING,6X16
92172-0739
$0.85
92210
NUT,WELL,5MM
92210-0370
$5.65
