Description

Price

11056

BRACKET,STOPPER

11056-2848

$20.98

11056A

BRACKET,SUPPORT

11056-4273

$22.05

11065

CAP

11065-0901

$2.94

11065A

CAP

11065-0907

$2.94

13272

PLATE

13272-1597

$1.13

13272A

PLATE

13272-1891

$331.81

13272B

PLATE,SIDE FRAME

13272-1993

$3.75

13272C

PLATE,FR COVER

13272-2101

$30.50

14093

COVER,RESIN PANEL,LH,F.BLACK

14093-0165-6Z

$160.66

14093A

COVER,RESIN PANEL,RH,F.BLACK

14093-0166-6Z

$160.66

14093B

COVER,SCREEN

14093-0301

$80.48

16073

INSULATOR,250X705

16073-0812

$20.95

16073A

INSULATOR,265X335

16073-0813

$10.69

16073B

INSULATOR,295X705

16073-0816

$25.33

16073C

INSULATOR,70X705

16073-0817

$6.33

31064

PIPE-COMP,SIDE FRAME,LH

31064-0661

$183.53

31064A

PIPE-COMP,SIDE FRAME,RH

31064-0662

$506.62

31064B

PIPE-COMP,FR FRAME

31064-0663

$198.05

32155

PIPE

32155-1533

$63.28

46102

ROD,STOPPER

46102-0615

$0.72

53029

CARRIER,BASE

53029-0338

$995.80

53045

HOOK-ASSY,STOPPER

53045-0023

$6.56

53045A

HOOK-ASSY,MAIN LOCK

53045-0025

$23.22

53045B

HOOK-ASSY,MAIN CLAMP

53045-0026

$26.44

53062

GATE-TAIL

53062-0022

$123.56

92004

STUD

92004-0733

$3.04

92022

WASHER,8.2X19X2

92022-1533

$5.52

92022A

WASHER,23X32X2.3

92022-1618

$6.22

92043

PIN,12.4X72.4

92043-0716

$7.24

92071

GROMMET

92071-0012

$4.55

92075

DAMPER

92075-1882

$8.10

92075A

DAMPER,RUBBER

92075-261

$4.31

92152

COLLAR,6.8X10X9.3

92152-1799

$2.26

92154

BOLT,FLANGED,6X22

92154-1356

$1.48

92161

DAMPER

92161-1615

$28.88

92161A

DAMPER

92161-1656

$1.36

92161B

DAMPER,10X40X10

92161-1775

$7.59

92172

SCREW,6X16

92172-0711

$3.02

92172A

SCREW,TAPPING,6X16

92172-0739

$0.85

92173

CLAMP,FUEL PIPE

92173-1213

$1.48

130

BOLT-FLANGED,6X14

130BA0614

$1.20

130A

BOLT-FLANGED,8X12

130BA0812

$0.95

130B

BOLT-FLANGED,8X20

130BA0820

$4.14

130C

BOLT-FLANGED,6X16

130CA0616

$1.80

220

SCREW-PAN-CROS,6X10

220AB0610

$1.81

550

PIN-COTTER,3.0X30

550AA3030

$2.51

554

PIN-SNAP,12MM

554DA1200

$3.96

92200

WASHER,6.5X16X2.0

92200-1543

$2.34

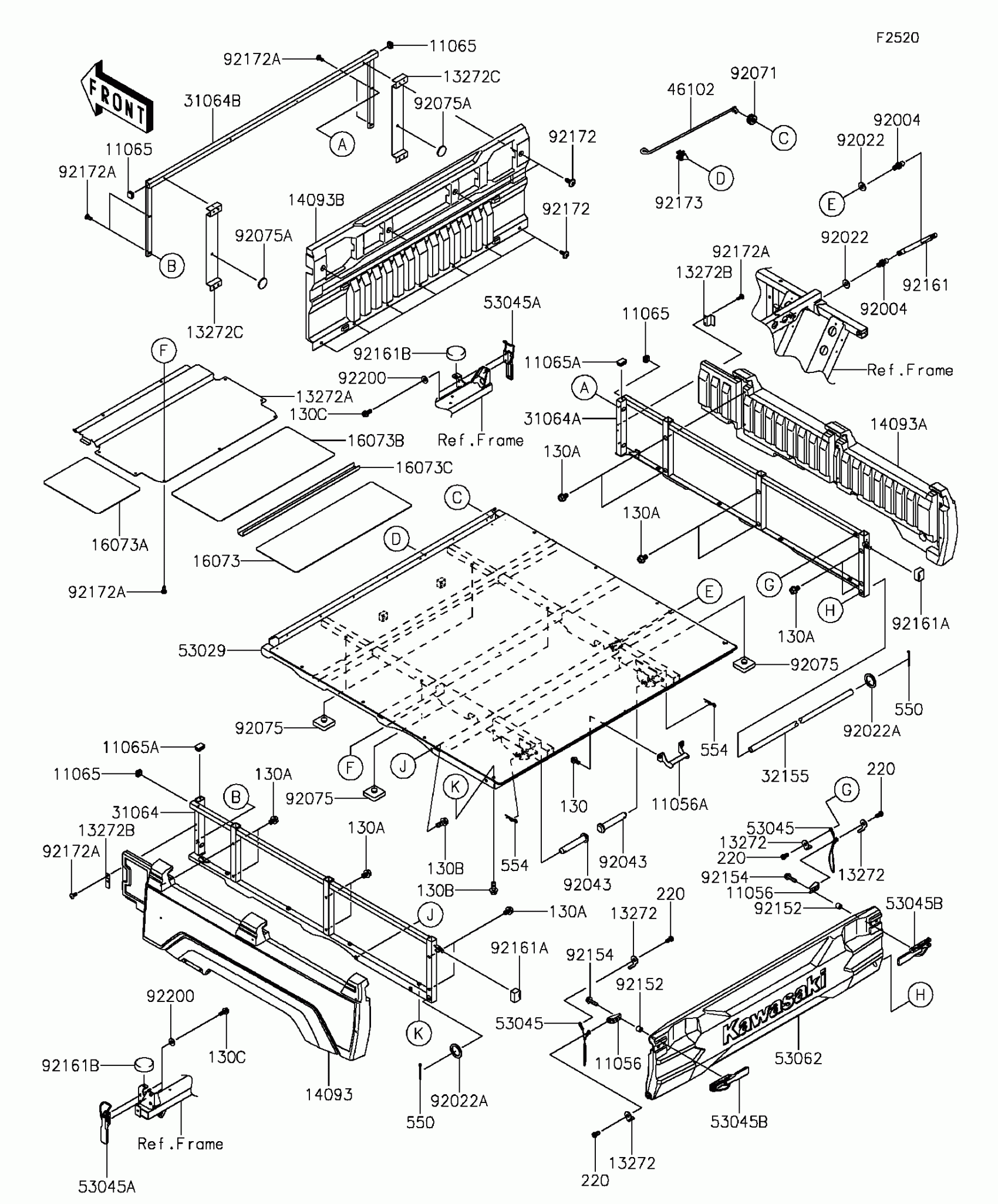

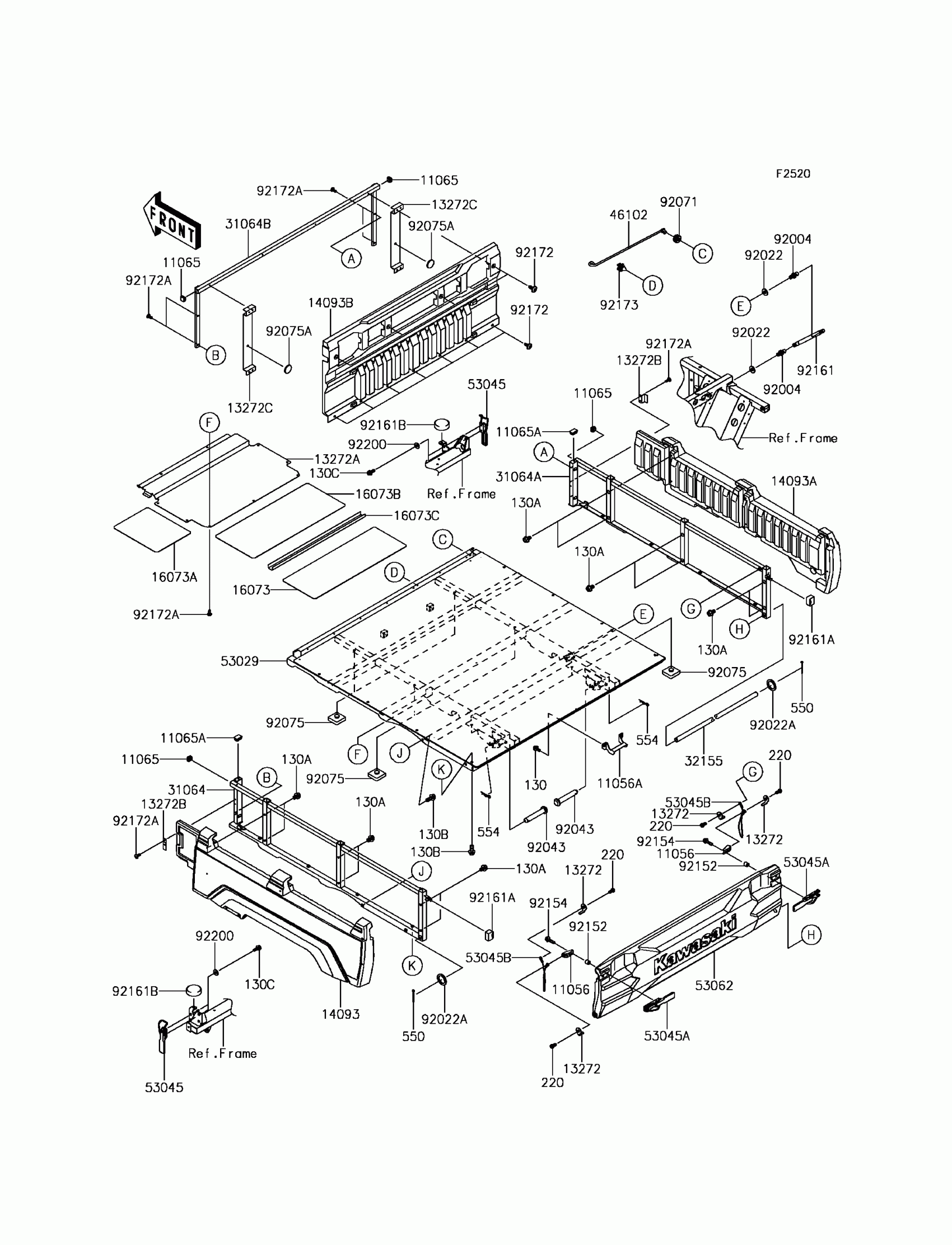

Kawasaki MULE PRO-FX™ EPS CAMO Carrier(s) Diagram

BRACKET,STOPPER

BRACKET,SUPPORT

CAP

CAP

PLATE

PLATE

PLATE,SIDE FRAME

PLATE,FR COVER

COVER,RESIN PANEL,LH,F.BLACK

COVER,RESIN PANEL,RH,F.BLACK

COVER,SCREEN

INSULATOR,250X705

INSULATOR,265X335

INSULATOR,295X705

INSULATOR,70X705

PIPE-COMP,SIDE FRAME,LH

PIPE-COMP,SIDE FRAME,RH

PIPE-COMP,FR FRAME

PIPE

ROD,STOPPER

CARRIER,BASE

HOOK-ASSY,STOPPER

HOOK-ASSY,MAIN LOCK

HOOK-ASSY,MAIN CLAMP

GATE-TAIL

STUD

WASHER,8.2X19X2

WASHER,23X32X2.3

PIN,12.4X72.4

GROMMET

DAMPER

DAMPER,RUBBER

COLLAR,6.8X10X9.3

BOLT,FLANGED,6X22

DAMPER

DAMPER

DAMPER,10X40X10

SCREW,6X16

SCREW,TAPPING,6X16

CLAMP,FUEL PIPE

BOLT-FLANGED,6X14

BOLT-FLANGED,8X12

BOLT-FLANGED,8X20

BOLT-FLANGED,6X16

SCREW-PAN-CROS,6X10

PIN-COTTER,3.0X30

PIN-SNAP,12MM

WASHER,6.5X16X2.0
